Homework Answers
In the heirarchical model the memory consists of separate instruction and data caches along with main memory. This ARM processor is running at 1GHz.
a) Given,
The instruction cache is always hit where as the data cache is 5% miss.
The processor takes 60ns to access main memory
Average memory access time is given as;
T = 1 + 0.05 * 60
T = 4 ns
b) For the non - ideal memory system , the average CPI required to store and load word instruction is;
CPI = ( 5 * 25 + 4 * 10 ) / 100
CPI = 1.65
4 cycles for store instructions and 5 cycles for load instructions.
c) The average CPI for the benchmarkis,
ACPI = (5*25 + 4*10 + 3*11 + 3*2 + 4*52)/100
ACPI = 4.12
d) Now for 7 % miss rate the average CPI is given as,
ACPI = 4.12 + 2.45
ACPI = 6.57
( 25+10 = 35 are load and store instructions * 0.07 = 2.45 )
Add Answer to:

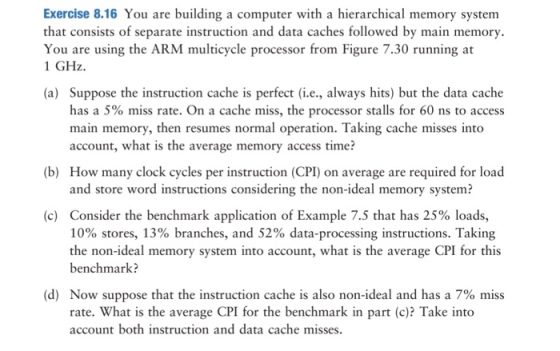

Exercise 8.16 You are building a computer with a hierarchical memory systenm that consists of separate...
