Homework Answers
ANSWER: (2nd Option) 230V
Explanation: For delta connection Phase Voltage and Line voltage are equal.
Line Voltage=Phase Voltage = 230V
Add Answer to:

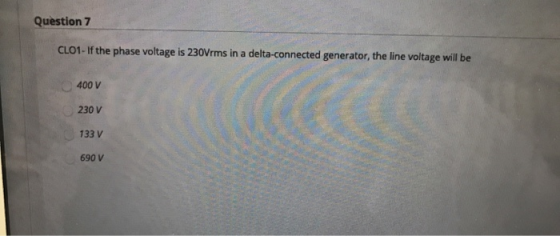

Question 7 CL01 - If the phase voltage is 230Vrms in a delta-connected generator, the line...
