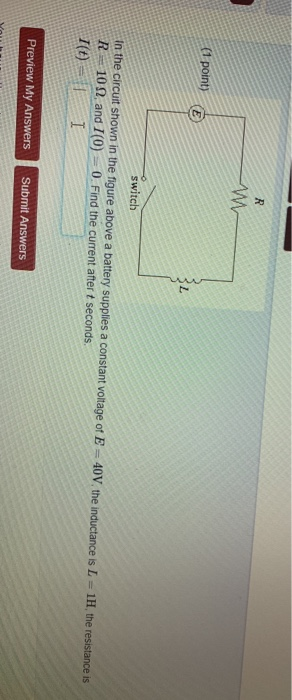

(1 point) switch In the circuit shown in the figure above a battery supplies a constant...
In the circuit shown in the figure above a generator supplies a voltage of E(t) =...
In the circuit shown in the figure above a generator supplies a voltage of E(t) = 50 sin(40t)V, the induction in L = 1H, the resistance is R = 10 ohm, and I(0) = 0. Find the current after t seconds.
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
Problem 5 An RC circuit, hooked up to a battery as shown in the figure below,...
Problem 5 An RC circuit, hooked up to a battery as shown in the figure below, starts with an uncharged capacitor. The resistance in the circuit is R= 702. Ω the capacitor has capacitance C-58.0 μF and the battery maintains the emfofE-21.0 V. The switch is closed at time t 0.00s and the capacitor begins to charge. a) What is the time constant for this circuit? Submit AnswerTries 0/6 b) What is the charge on the capacitor after the switch...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
In the circuit shown in the figure below, the battery and the inductor have no appreciable...
In the circuit shown in the figure below, the battery and the inductor have no appreciable internal resistance and there is no current in the circuit. After the switch is closed, find the readings of the ammeter and voltmeters (a) the instant after the switch is closed; (b) after the switch has been closed for a very long time. (c) Which answers in parts (a) and (b) would change if the inductance were 24.0 mH instead? V s 15.012 25.0...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
battery with E = 8.00 V and no internal resistance supplies current to the circuit shown...
battery with E = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.09 mA. When the switch closed in position a, the current the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.10 mA. Find the following resistances. ŠR, Ry (a) R1 k0 (b)...
A battery with = 8.00 V and no internal resistance supplies current to the circuit shown...
A battery with = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.05 mA. When the switch is closed in position a, the current in the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.05 mA. Find the following resistances. R SR, R2 E...
An RC circuit, hooked up to a battery as shown in the figure, starts with an...
An RC circuit, hooked up to a battery as shown in the figure,
starts with an uncharged capacitor. The resistance in the circuit
is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the
battery maintains the emf of ? = 26.0 V. The switch is closed at
time t = 0.0 s and the capacitor begins to charge.
a) What is the time constant for this circuit?
4.874×10-2 s (IS CORRECT)
b) What is...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at t=0 (charging phase). Report the time constant of the circuit T1 , voltage V, and current i, at time t = t1/2 23 82H £292 3v 20 20 Fig. 1: EMILM B) At time t = t;/2 , the switch in the RL circuit of Figure 1 is opened (discharging phase); Report the time constant of the circuit ta , voltage V, and current...
In the circuit shown in the figure above a generator supplies a voltage of E(t) = 50 sin(40t)V, the induction in L = 1H, the resistance is R = 10 ohm, and I(0) = 0. Find the current after t seconds.
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
Problem 5 An RC circuit, hooked up to a battery as shown in the figure below, starts with an uncharged capacitor. The resistance in the circuit is R= 702. Ω the capacitor has capacitance C-58.0 μF and the battery maintains the emfofE-21.0 V. The switch is closed at time t 0.00s and the capacitor begins to charge. a) What is the time constant for this circuit? Submit AnswerTries 0/6 b) What is the charge on the capacitor after the switch...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
In the circuit shown in the figure below, the battery and the inductor have no appreciable internal resistance and there is no current in the circuit. After the switch is closed, find the readings of the ammeter and voltmeters (a) the instant after the switch is closed; (b) after the switch has been closed for a very long time. (c) Which answers in parts (a) and (b) would change if the inductance were 24.0 mH instead? V s 15.012 25.0...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
battery with E = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.09 mA. When the switch closed in position a, the current the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.10 mA. Find the following resistances. ŠR, Ry (a) R1 k0 (b)...
A battery with = 8.00 V and no internal resistance supplies current to the circuit shown in the figure below. When the double-throw switch S is open as shown in the figure, the current in the battery is 1.05 mA. When the switch is closed in position a, the current in the battery is 1.24 mA. When the switch is closed in position b, the current in the battery is 2.05 mA. Find the following resistances. R SR, R2 E...
An RC circuit, hooked up to a battery as shown in the figure,
starts with an uncharged capacitor. The resistance in the circuit
is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the
battery maintains the emf of ? = 26.0 V. The switch is closed at
time t = 0.0 s and the capacitor begins to charge.
a) What is the time constant for this circuit?
4.874×10-2 s (IS CORRECT)
b) What is...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at t=0 (charging phase). Report the time constant of the circuit T1 , voltage V, and current i, at time t = t1/2 23 82H £292 3v 20 20 Fig. 1: EMILM B) At time t = t;/2 , the switch in the RL circuit of Figure 1 is opened (discharging phase); Report the time constant of the circuit ta , voltage V, and current...
