Computer Networking help

a. Draw a single continuous line starting at the application layer of the browser to that of the web server showing the path

Physical connections exist between devices. Laptop Switch Router Router Switch Web Server Consider the following network wher

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

In the TCP/IP model we have 5 layers :

Application Layer

Transport Layer

Network Layer

Data Link Layer

Physical Layer

Now

Servers/Hosts have all the layers in them

Routers have 3 layers namely Physical Layer, Data Link Layer and Network Layer

Switches have 2 layers namely Physical Layer and Data Link Layer

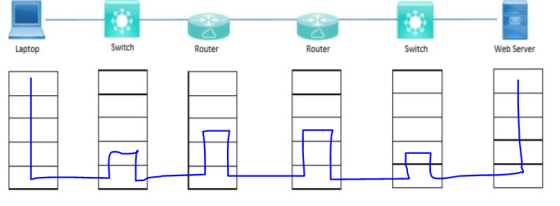

I have showed the traversal of packet with a blue colored line

a)

Laptop Switch Router Router Switch Web Server

b)

Router Router Laptop Switch Web Server Web Caching Server
