Find the overall transfer function of a system.

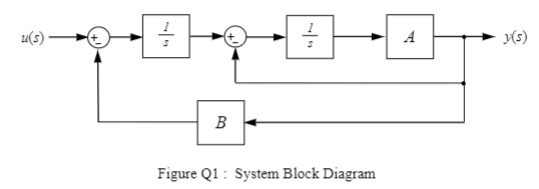

Figure 1 shows the following block diagram of a system. Using a technique of your choice, show that the system shown in figure 1 has the overall transfer function G(s) = y(s)/u(s) = A / s^2+As+A.B.
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s)...
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...
Question 1 a) Define the term transfer function in relation to a linear control system. [5...
Question 1 a) Define the term transfer function in relation to a
linear control system. [5 marks] Figure Q1 shows a block diagram of
a feedback control system, with a plant with transfer function G(s)
, a controller with transfer function C(s) , and a sensor with
transfer function H(s) . b) Derive from first principles the closed
loop transfer function G (s) cl from the reference signal r(t) , to
the output signal y(t) . [5 marks] c) Give...
Consider the block diagram of the following control system. Find the transfer function G(s) = Y(S)/R(s)...
Consider the block diagram of the following control system. Find the transfer function G(s) = Y(S)/R(s) by using the block diagram reduction R(5) Y(s) + 5+2 s
2. Determine the closed-loop transfer function Y (using Signal Flow Graphs or Block U(s) Diagram Transformations)...
2. Determine the closed-loop transfer function Y (using Signal Flow Graphs or Block U(s) Diagram Transformations) for the system shown in Figure 2 U(s) Y (s) 0 do
PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function...
PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function C(s)/RS). B-2-2. Simplify the block diagram shown in Figure 2-30 and obtain the closed-loop transfer function C(s)/R(s). B-2-3. Simplify the block diagram shown in Figure 2-31 and obtain the closed-loop transfer function C(s)/R(S). G1 R(S) CS) Figure 2-29 Block diagram of a system. Figure 2-30 Block diagram of a system. Figure 2-31 Block diagram of a system.
Please solve both parts a and b step-by-step using the block reduction method ONLY. Q4 a)...
Please solve both parts a and b step-by-step using the block
reduction method ONLY.
Q4 a) (1 mark) The figure below shows a block diagram of a control system, obtain the transfer function [Y(s)/R(s)]N=0 N(S) R(5) Y(s) Gy(s) Ge(s) H(s) b) (2 marks) The figure below shows a closed-loop system with a reference input and disturbance input. Obtain transfer functions C(s)/R(s) and C(s)/D(S) of the system shown. Use block diagram reduction method only. GF D(S) R(S) Es) U(5) Cs) GC...
1. For Kc = 1, derive the overall transfer function for set-point tracking. 2. For Kc...
1. For Kc = 1, derive the overall transfer function
for set-point tracking.
2. For Kc = 1, derive the overall transfer function for disturbance
rejection.
3. With the PI-controller settings fixed, find the stability range
of the P-controller gain using direct substitution method.
4. Match the following control test to the response curves given in
the following figure (eg. I – A, II – B, III – C, IV – D)
The following figure shows a cascade control system...
14. Consider the solar tracking servo with the following transfer function G,(s) = s(10s +1) G...
14. Consider the solar tracking servo with the following transfer function G,(s) = s(10s +1) G (5) U(s) X (s) X (s) Y(s) a. Draw the well labelled block diagram of a full state feedback digital control system with a closed loop observer and a reference. b. Design a full state digital feedback controller to place the system poles at R2--1+) by employing the feedback law from state space technique.
3. (25 points) For the block diagram shown in Figure 1, develop the transfer function between...
3. (25 points) For the block diagram shown in Figure 1, develop the transfer function between Y(s) and U(s) Figure 1. Block diagram for Problem 3. 4. (20 points) Consider each of the input profile in Figure 1. Develop an expression for U(s) for each case. Time Time Figure 1. Input profiles
the third one please solve it Determine the overall system transfer function for each of the...
the third one please solve it
Determine the overall system transfer function for each of the system block diagrams below Hes) H(s) = G, G2 T + Gatto Iti Golz Itsetzt Higiak -> G1 = t , Gok - H₂=1 Hi=5+2 | H(s) = G, G2 TG2H2 + Hig, az + K x 1 +(3+2 t sil H(s) = 2+5 (2k-1) 12k Page 1 of H(s) =
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...
Question 1 a) Define the term transfer function in relation to a
linear control system. [5 marks] Figure Q1 shows a block diagram of
a feedback control system, with a plant with transfer function G(s)
, a controller with transfer function C(s) , and a sensor with
transfer function H(s) . b) Derive from first principles the closed
loop transfer function G (s) cl from the reference signal r(t) , to
the output signal y(t) . [5 marks] c) Give...
Consider the block diagram of the following control system. Find the transfer function G(s) = Y(S)/R(s) by using the block diagram reduction R(5) Y(s) + 5+2 s
2. Determine the closed-loop transfer function Y (using Signal Flow Graphs or Block U(s) Diagram Transformations) for the system shown in Figure 2 U(s) Y (s) 0 do
PROBLEMS B-2-1. Simplify the block diagram shown in Figure 2-29 and obtain the closed-loop transfer function C(s)/RS). B-2-2. Simplify the block diagram shown in Figure 2-30 and obtain the closed-loop transfer function C(s)/R(s). B-2-3. Simplify the block diagram shown in Figure 2-31 and obtain the closed-loop transfer function C(s)/R(S). G1 R(S) CS) Figure 2-29 Block diagram of a system. Figure 2-30 Block diagram of a system. Figure 2-31 Block diagram of a system.
Please solve both parts a and b step-by-step using the block
reduction method ONLY.
Q4 a) (1 mark) The figure below shows a block diagram of a control system, obtain the transfer function [Y(s)/R(s)]N=0 N(S) R(5) Y(s) Gy(s) Ge(s) H(s) b) (2 marks) The figure below shows a closed-loop system with a reference input and disturbance input. Obtain transfer functions C(s)/R(s) and C(s)/D(S) of the system shown. Use block diagram reduction method only. GF D(S) R(S) Es) U(5) Cs) GC...
1. For Kc = 1, derive the overall transfer function
for set-point tracking.
2. For Kc = 1, derive the overall transfer function for disturbance
rejection.
3. With the PI-controller settings fixed, find the stability range
of the P-controller gain using direct substitution method.
4. Match the following control test to the response curves given in
the following figure (eg. I – A, II – B, III – C, IV – D)
The following figure shows a cascade control system...
14. Consider the solar tracking servo with the following transfer function G,(s) = s(10s +1) G (5) U(s) X (s) X (s) Y(s) a. Draw the well labelled block diagram of a full state feedback digital control system with a closed loop observer and a reference. b. Design a full state digital feedback controller to place the system poles at R2--1+) by employing the feedback law from state space technique.
3. (25 points) For the block diagram shown in Figure 1, develop the transfer function between Y(s) and U(s) Figure 1. Block diagram for Problem 3. 4. (20 points) Consider each of the input profile in Figure 1. Develop an expression for U(s) for each case. Time Time Figure 1. Input profiles
the third one please solve it
Determine the overall system transfer function for each of the system block diagrams below Hes) H(s) = G, G2 T + Gatto Iti Golz Itsetzt Higiak -> G1 = t , Gok - H₂=1 Hi=5+2 | H(s) = G, G2 TG2H2 + Hig, az + K x 1 +(3+2 t sil H(s) = 2+5 (2k-1) 12k Page 1 of H(s) =
