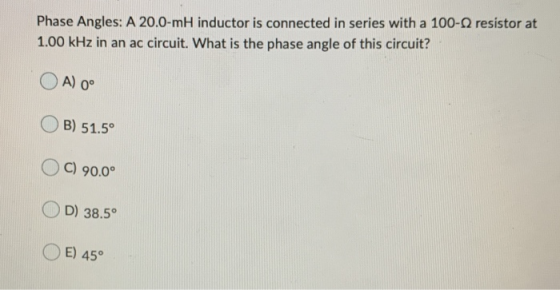

Phase Angles: A 20.0-mH inductor is connected in series with a 100-12 resistor at 1.00 kHz...

Question

Question

science physics

Answer 1

Answer #1

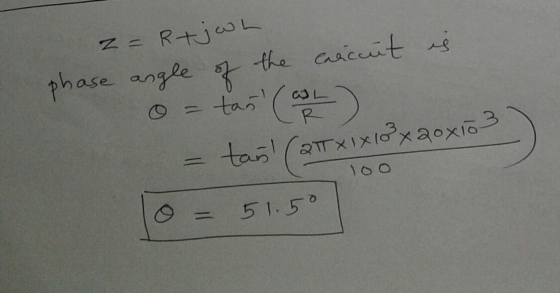

z = RtjL phase angle of the is carcuit = tan! (21x1x10x20x103 10o lo = 51.50

Answer 2

Similar Homework Help Questions

please answer! Part A Phase Angles: The phase angle of a series RL ac circuit with...

please answer! Part A Phase Angles: The phase angle of a series RL ac circuit with a 100- resistor and a 20.0-mH inductor is 70.0°. What is the inductive reactance of this circuit? 1500 2000 100 g 2750 175 Submit Request Answer
What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give...

What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give a resonance frequency of 800 Hz? A series RLC circuit consists of a 99.0 Ohm resistor, a 0.130 H inductor, and a 20.0 muF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I? The tuning circuit in an FM radio receiver is a series RLC circuit with a 0.2000 muH inductor. The receiver is tuned to...
Consider a series RL circuit with R= 85.0 12 and an unknown inductor L, driven by...

Consider a series RL circuit with R= 85.0 12 and an unknown inductor L, driven by an AC emf with Erms= 32.0 Volts at frequency f= 6.90 kHz. If we measure the current in the circuit, we find Irms= 0.156 Amps. E 12 L What is the inductance L? (in H) OA: 1.41x10-3|OB: 2.05x10-3|OC: 2.97x10-3|OD: 4.30-10-3|| OE: 6.24x10-3 OF: 9.04x10-3 Submit Answer Tries 0/2 What is the magnitude of the phase angle between the applied voltage and the current? (in...

A series AC circuit contains a resistor, an inductor of 250 mh, a capacitor of 5.20...

A series AC circuit contains a resistor, an inductor of 250 mh, a capacitor of 5.20 pF, and a source with AVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 160 mA. Calculate the resistance of the resister in the circuit. O A. 78.5 12 OB. 6122 O C. 1.4k12 OD. 1.5 k 22
A 600 ? resistor and a 260 mH inductor are connected in series with an ac...

A 600 ? resistor and a 260 mH inductor are connected in series with an ac generator with an rms voltage of 24.0 Vand a frequency of 55.0 Hz . What is the rms current in this circuit? Units of answer must be in mA.
If an 80 mH inductor is in series with a 220 Ω resistor in a circuit...

If an 80 mH inductor is in series with a 220 Ω resistor in a circuit with a source frequency of 1000 Hz, what will be the phase angle (rounded) of the current with respect to the voltage? A. 48° B. 66° C. 50° D. 70° A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is the total circuit current (rounded)? A. 0.29 A B....

A 525 Ohm resistor and a 275 mH inductor are connected in series with an ac...

A 525 Ohm resistor and a 275 mH inductor are connected in series with an ac generator with an rms voltage of 22.0 V and a frequency of 65.0 Hz What is the rms current in this circuit? I_rms = _____ mA
A 500 Ω resistor and a 280 mH inductor are connected in series with an ac...

A 500 Ω resistor and a 280 mH inductor are connected in series with an ac generator with an rms voltage of 23.0 V and a frequency of 65.0 Hz What is the rms current in this circuit? I(rms)= ? mA
A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source....

A resistor, 50.0-mH inductor, and 100.0-uF capacitor are connected in series with a 50-Hz voltage source. The maximum voltage through the circuit is 240 V. Calculate the power across the LCR circuit, if phase angle between the current and voltage is 60degrees.

A series RLC circuit is connected to a 3.30 kHz oscillator with a peak voltage of 3.40 V. It cons...

A series RLC circuit is connected to a 3.30 kHz oscillator with a peak voltage of 3.40 V. It consists of a 1.00 mH inductor, a 20.0 nF capacitor, and a 41.0 Ω resistor. If ε = ε0, what is the instantaneous current i?
