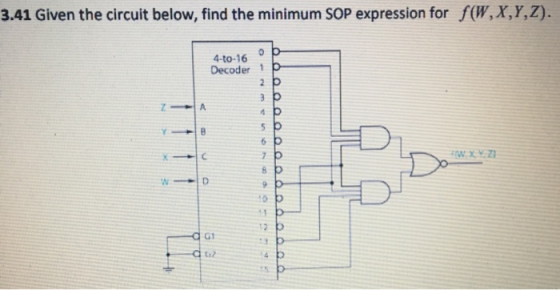

3.41 Given the circuit below, find the minimum SOP expression for f(W,X,Y,Z). 4-10-16 Decoder 1 NO...

Question

Question

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

5. (20 points) Given the logie circuit below, with the decoder having active low outputs as...

5. (20 points) Given the logie circuit below, with the decoder having active low outputs as shown. Find the minimum switching expression for f(W,X,Y,Z) in the SOP form. 46 SP WXYD) w 9 4-10-16 10 Decoder 11 12 GI 13 14 150
5. (20 points) Given the logie circuit below, with the decoder having active low outputs as...

5. (20 points) Given the logie circuit below, with the decoder having active low outputs as shown. Find the minimum switching expression for f(W,X,Y,Z) in the SOP form. 46 SP WXYD) w 9 4-10-16 10 Decoder 11 12 GI 13 14 150
digital logic design 5. (20 Points) Given the logie circuit below, with the decoder having active...

digital logic design 5. (20 Points) Given the logie circuit below, with the decoder having active low outputs as shown. Find the minimum switching expression for f(W,X,Y,Z) in the SOP form. Y EXY х w 4-6-16 10 Decoder GI 12 13P 14 150 I D G Search or type URL 5 6 & 7 8 9 0

Q31 For the figure shown below W is an input, (X, Y and Z) are connected...

Q31 For the figure shown below W is an input, (X, Y and Z) are connected to (S2, S and So), find the Boolean function F (W, X, Y, Z) in SOP and implement it use: 1. Multiplexer: One-piece (4 to 1) and external gates (W, X are selectors). 2. Decoder: Five (2 to 4) with AND gate. 0 1 8 to 1 MUX Do D, F OP D, S S S 35 Marks] X Y Z Q31 For the...
1. (8 points) Obtain a minimal SOP form for the boolean function f(x,y,z,w) implemented by logic...

1. (8 points) Obtain a minimal SOP form for the boolean function f(x,y,z,w) implemented by logic network below. Compare the gate count and number of gate inputs in your minimal SOP expression with those for the network below. f(x,y,z,w)
Let f(w, x, y, z) = Q M(4, 9, 12, 13, 14) and d(w, x, y,...

Let f(w, x, y, z) = Q M(4, 9, 12, 13, 14) and d(w, x, y, z) = P m(5, 6, 11, 15). {[d(w, x, y, z) defines the don’t care conditions of f}. (a) (10pts) Find the minimal SOP of f. (b) (10pts) Find the minimal POS of f. (c) (20pts) Design a circuit from the minimal SOP of f. The circuit should contain only NAND gates

18. The minimum SOP of F(w,x, y, z)- 20,3,4,5,8,10,11,13,15) has a literal cost of (a) 9...

18. The minimum SOP of F(w,x, y, z)- 20,3,4,5,8,10,11,13,15) has a literal cost of (a) 9 (b) 12 (c) 15 (d) 18 (e) 20
I would like to know if the SOP function f(v,w,x,y,z)=(x+z)(w+y)(!w+x+!y)(!y+z+!v) and The Quartus II obtained function...

I would like to know if the SOP function f(v,w,x,y,z)=(x+z)(w+y)(!w+x+!y)(!y+z+!v) and The Quartus II obtained function F(v,w,x,y,z)=(v((!x(z(!w xor (!y))))+(x((!y(w))+(y((z)))))))+(!v((!x(z(!w xor (!y))))+(x(((y))+(w))))) for the above SOP are equivalent?
Problem 4. Given the following circuit, determine the SOP logic expressions for the functions Fand G...

Problem 4. Given the following circuit, determine the SOP logic expressions for the functions Fand G in terms of the variables w, x, y and z without substituting all possible combinations for the input variables. The SOP expression does not have to be the simplest one. - F(w.x,yz) u 2-to-MUX 2-to-4 Dec - G(w.x,y,z)

1 Consider 4-to-16 Decoder. Assume that the decoder outputs are given below. What is the logical...
