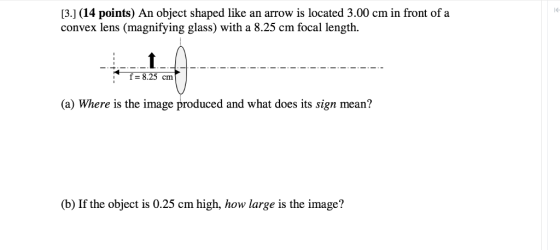

An object shaped like an arrow is located 3.00 cm in front of a convex lens...
A (13.2) cm tall object is placed in front of a convex lens. As a result,...
A (13.2) cm tall object is placed in front of a convex lens. As a result, an image is with a height of –(45.0) is produced on a screen placed (70.5) cm from the lens. Find the focal length of the lens. Give your answer in centimeters (cm) with the correct sign and with 3 significant figures.
An object placed 20 cm in front of a lens results in an image being formed...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
A 3.00 cm tall object is 44.0 cm in front of a convex mirror of focal...
A 3.00 cm tall object is 44.0 cm in front of a convex mirror of focal length -30.0 cm. Locate and describe the image
An object is 4 cm high and is located 17 cm in front of a thin...
An object is 4 cm high and is located 17 cm in front of a thin
converging lens with a focal length of 12 cm.
a. Calculate the position (distance from the center of the lens)
of the image.
b. Calculate the image height (including sign).
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs! (9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0? (10) An object 21 cm to...
1. An object is 29 cm in front of a convex lens with a focal length...
1. An object is 29 cm in front of a convex lens with a focal length of 10 cm. Using ray tracing and thin lens equation, determine whether the image is real or virtual, upright or inverted, reduced or magnified.
webassign.net Active Figure 26.25 Thin Lenses The animation below shows a thin lens, an object (blue...
webassign.net Active Figure 26.25 Thin Lenses The animation below shows a thin lens, an object (blue arrow) and an image (tan arrow). Three rays are shown that locate the positic orientation, and size of the image. Readouts are provided for object distance, object height, image distance and image height. Instructions: Click and drag the blue object. Click the button in the lower left of the applet window to toggle between a conc convex lens. Explore Images formed by thin lenses...
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0...
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0 cm. What is the magnification of the image?
8. An object is placed 1 m in front of a convex lens with an 80...
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
1) An object with height of 2.5 cm lies 10 cm in front of a lens...
1) An object with height of 2.5 cm lies 10 cm in front of a lens with focal length of 6 cm. c) Suppose that this image serves as the object for a second lens that has a focal length of + 4 cm. The second lens is placed 6 cm beyond the image serving as its object. Where is the image formed by this second lens? d) What is the magnification produced by the second lens?
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
An object is 4 cm high and is located 17 cm in front of a thin
converging lens with a focal length of 12 cm.
a. Calculate the position (distance from the center of the lens)
of the image.
b. Calculate the image height (including sign).
1. An object is 29 cm in front of a convex lens with a focal length of 10 cm. Using ray tracing and thin lens equation, determine whether the image is real or virtual, upright or inverted, reduced or magnified.
webassign.net Active Figure 26.25 Thin Lenses The animation below shows a thin lens, an object (blue arrow) and an image (tan arrow). Three rays are shown that locate the positic orientation, and size of the image. Readouts are provided for object distance, object height, image distance and image height. Instructions: Click and drag the blue object. Click the button in the lower left of the applet window to toggle between a conc convex lens. Explore Images formed by thin lenses...
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0 cm. What is the magnification of the image?
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
