Homework Answers
Add Answer to:

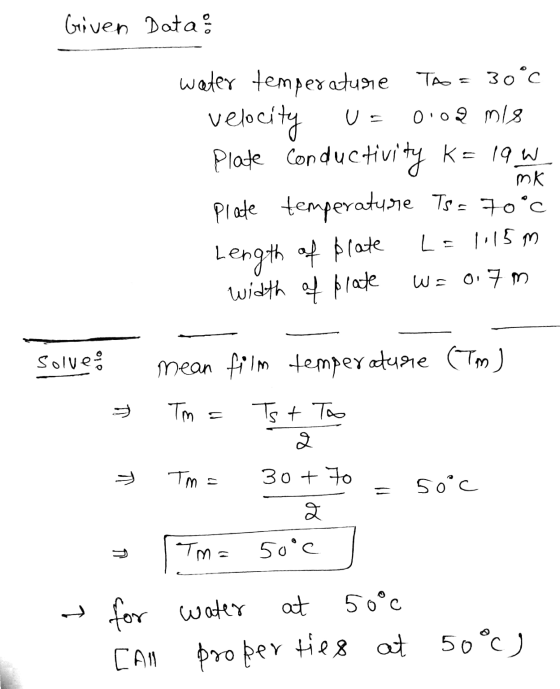

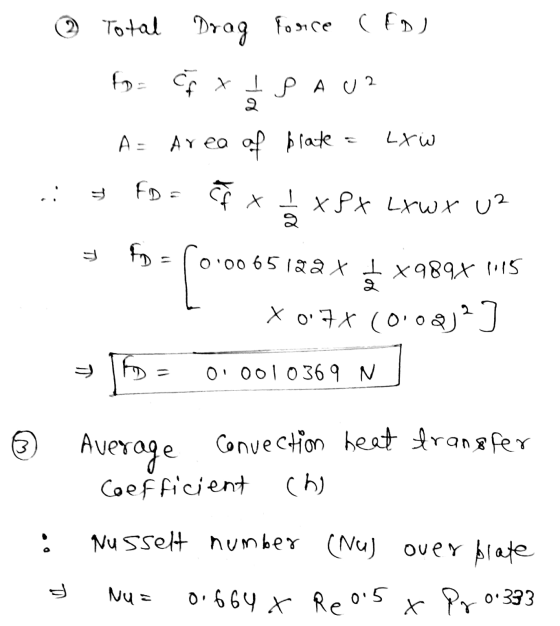

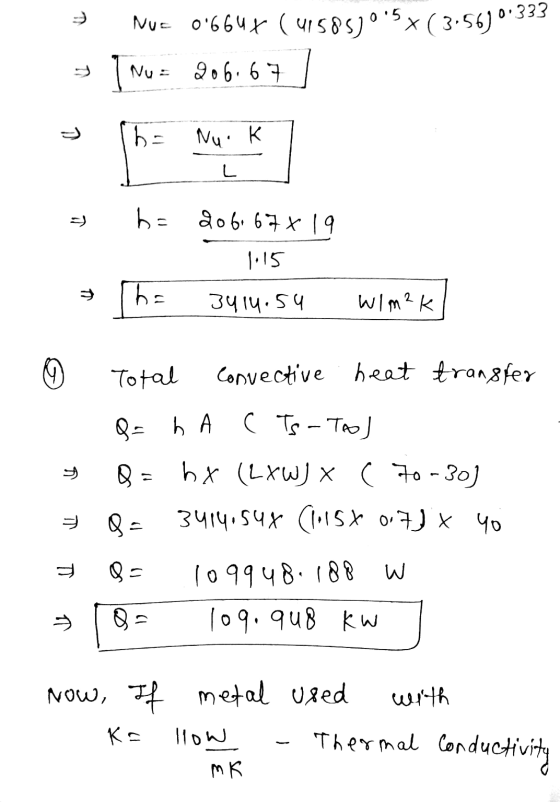

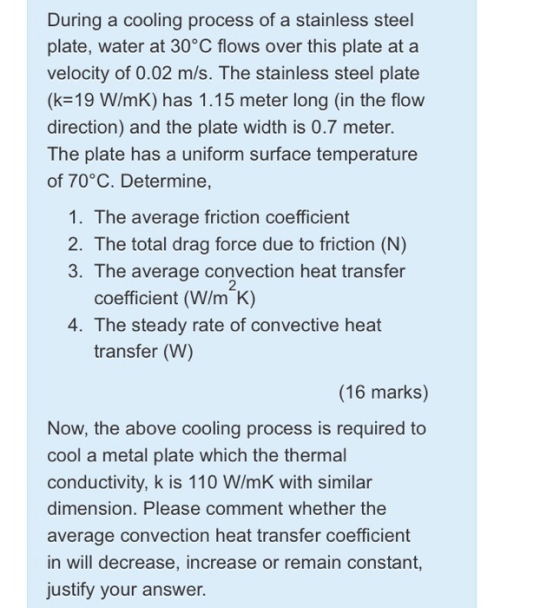

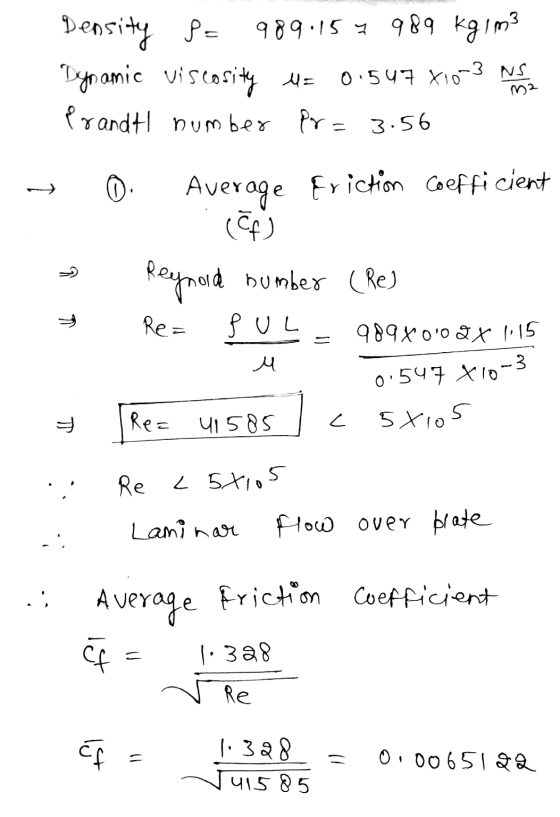

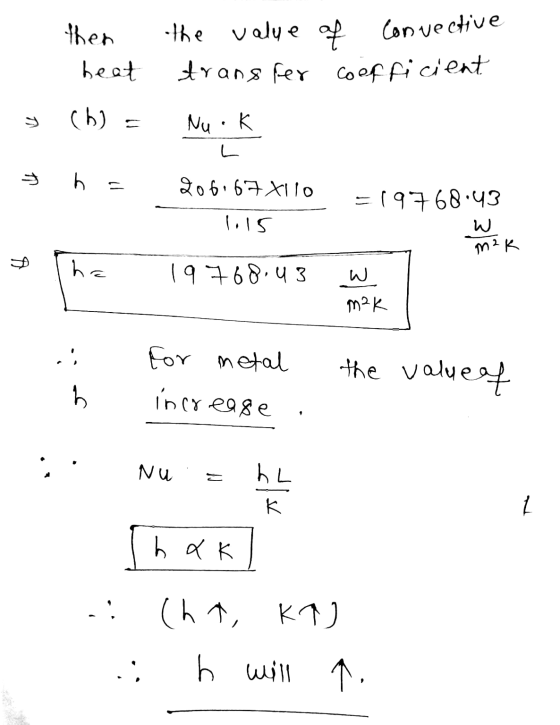

During a cooling process of a stainless steel plate, water at 30°C flows over this plate...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of 16 W m-1 K -1 whose inner and outer diameters are 5 and 6 cm respectively. The pipe is covered with 3 cm think insulation having a thermal conductivity of 0.035 W m-1 K -1 . The combined convection and radiation heat transfer coefficient at the outside surface of the insulation is 20 W m-2 K -1 and the surroundings are at 10 °C....
3. The annular pipe arrangement shown in the figure below is made of stainless steel and the oute...
3. The annular pipe arrangement shown in the figure below is made of stainless steel and the outer surface is insulated. Air flows through the central pipe with a mass flow rate, ma0.026 kg/s. Water flows through the annular region with a mass flow rate, mw-0.58 kg/s. At the given position along the pipe the bulk temperature of the air, Ta-100°C, and the bulk temperature of the water, Tw- s 10°C. The thermal conductivity of stainless steel, kss 15 W/mK....
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C. At...
Help mee!! Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe...
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
A large stainless steel (AISI 316) plate having a thickness of 5 mm is initially at...
A large stainless steel (AISI 316) plate having a thickness of 5 mm is initially at a temperature of 70°C, and both sides of the plate are suddenly exposed to a convection environment at 20°C with the heat transfer coefficient of h= 800 W/m 2 oC. What will be the center and surface temperatures of the plate after 10 s? For stainless steel (AISI 316), α = 348x10-6 m2/s and k = 13.4 W/m K.
Consider a stainless steel spoon (k= 15.1 W/m·C) that is partially immersed in boiling water at...
Consider a stainless steel spoon (k= 15.1 W/m·C) that is partially immersed in boiling water at 95°C in a kitchen at 25°C. The handle of the spoon has a cross section of about 0.2 cm x 1 cm and extends 18 cm in the air from the free surface of the water. The spoon loses heat by convection to the ambient air with an average heat transfer coefficient of h = 13 W/m2. Assuming steady one-dimensional heat transfer along the...
4. Hardening of ball bearings made from Type 440C stainless steel, one of the hardest stainless...
4. Hardening of ball bearings made from Type 440C stainless steel, one of the hardest stainless steels, is accomplished by heating the bearings to 1010 to 1065 °C then quenching (rapidly cooling) them in oil Consider bearings 24 mm in diameter at an initial uniform temperature of 1050 °C, cooled in an oil bath at 50 °C in which the convective heat transfer coefficient is 600 W/(m2 K). Properties of Type 440C Stainless Steel:t Density, 7800 kg/m3 Thermal conductivity, 24...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
3. The annular pipe arrangement shown in the figure below is made of stainless steel and the outer surface is insulated. Air flows through the central pipe with a mass flow rate, ma0.026 kg/s. Water flows through the annular region with a mass flow rate, mw-0.58 kg/s. At the given position along the pipe the bulk temperature of the air, Ta-100°C, and the bulk temperature of the water, Tw- s 10°C. The thermal conductivity of stainless steel, kss 15 W/mK....
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
A large stainless steel (AISI 316) plate having a thickness of 5 mm is initially at a temperature of 70°C, and both sides of the plate are suddenly exposed to a convection environment at 20°C with the heat transfer coefficient of h= 800 W/m 2 oC. What will be the center and surface temperatures of the plate after 10 s? For stainless steel (AISI 316), α = 348x10-6 m2/s and k = 13.4 W/m K.
Consider a stainless steel spoon (k= 15.1 W/m·C) that is partially immersed in boiling water at 95°C in a kitchen at 25°C. The handle of the spoon has a cross section of about 0.2 cm x 1 cm and extends 18 cm in the air from the free surface of the water. The spoon loses heat by convection to the ambient air with an average heat transfer coefficient of h = 13 W/m2. Assuming steady one-dimensional heat transfer along the...
4. Hardening of ball bearings made from Type 440C stainless steel, one of the hardest stainless steels, is accomplished by heating the bearings to 1010 to 1065 °C then quenching (rapidly cooling) them in oil Consider bearings 24 mm in diameter at an initial uniform temperature of 1050 °C, cooled in an oil bath at 50 °C in which the convective heat transfer coefficient is 600 W/(m2 K). Properties of Type 440C Stainless Steel:t Density, 7800 kg/m3 Thermal conductivity, 24...
