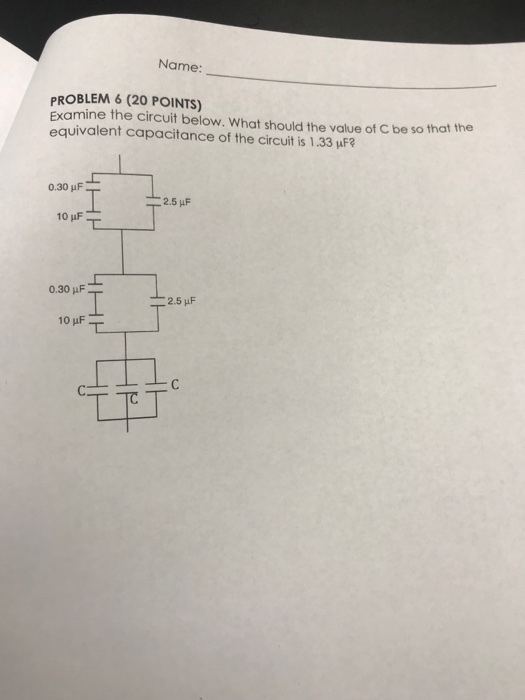

Name: PROBLEM 6 (20 POINTS) Examine the circuit below. What should the value of C be...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

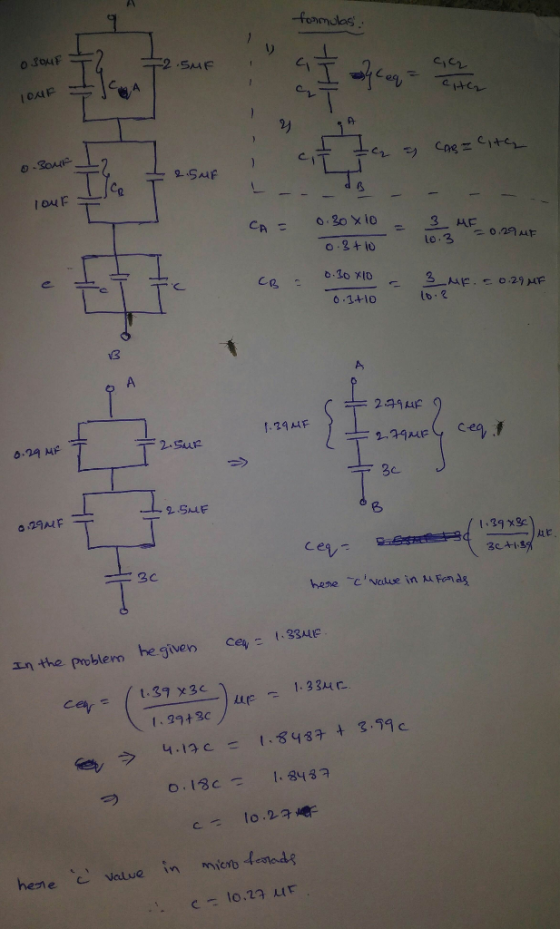

fonmulos cicr 10시 p eg 1) 오,SAF 10.3 0.29사. 0.3+10 lo.2 1.29 시F 0.24 NPT 3c 29시 8 3c エn the problem hegiven ce .gsuF 1.33시に a

Answer 2

Similar Homework Help Questions

2. Consider the circuit shown below. (8 points) What is the equivalent capacitance between points a...

2. Consider the circuit shown below. (8 points) What is the equivalent capacitance between points a and b? 1 uF RA LLLL AN INN LEE Il 2 UF 12 uf
What is the equivalent capacitance of the circuit shown below if C = 75 µF? 18)...

What is the equivalent capacitance of the circuit shown below if C = 75 µF? 18) What is the equivalent capacitance of the circuit shown below if C 75 uF? 2C 2C
Chapter 6, Problem 6.60 Select the value of C to produce the desired total capacitance of...

Chapter 6, Problem 6.60 Select the value of C to produce the desired total capacitance of CT = 7 uF in the circuit in the figure below. Ct = 7 uF 4 F + = 154F UF the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work

Name and 20 resistors. Employ the noda PROBLEM 2 (20 Points) in the circuit below, find...

Name and 20 resistors. Employ the noda PROBLEM 2 (20 Points) in the circuit below, find the currents through the 6 analysis technique 40 S 2002
PROBLEM 7 (10 POINTS) Compute the equivalent capacitance of the configuration below. Take C1 =12 nF,...

PROBLEM 7 (10 POINTS) Compute the equivalent capacitance of the configuration below. Take C1 =12 nF, C2 = 12 nF, C3 = 6 nF. :-of CFDT 6 =12 C=7676 - C₂ = 12 = Co=12 PROBLEM 7 (10 POINTS) Examine the circuit below. Redraw the circuit below with: (a) the voltage sources shorted and the current sources open; and (b) the voltage sources Lee charted No commutationes
PROBLEM 1 The diagram shown has a 20-volt battery and four capacitors of values: C1 =...

PROBLEM 1 The diagram shown has a 20-volt battery and four capacitors of values: C1 = 100 uF C3 = 300 uF C2 = 200 uF Ca = 400 uF a. (15 points) Calculate & solve for the equivalent capacitance of the circuit. b. (5 points) Calculate and solve for the total charge drawn out of the battery. c. (5 points) Calculate and solve for the total energy (in Joules) stored in the circuit. For parts d & e, consider...

2. What is the equivalent capacitance in the circuit depicted below? What is the charge on...

2. What is the equivalent capacitance in the circuit depicted below? What is the charge on the right side of the 3.00uF capacitor? 4.00 uF - 3.00 F 2.00 pF 14120v
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...

The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
In the circuit below the capacitance is not known. If the voltage applied to the circuit...

In the circuit below the capacitance is not known. If the voltage applied to the circuit has a frequency of 60 hertz find the value of the capacitance, C, so the total impedance of the circuit, ZT, is 10 ohms. Select the answer closest to your answer. 1Om H www A. 1.42 mF B. 10 uF C. 0.265 F D. 703 HF E. 0.703 F

Nov 6, 2018 NAME: POINTS Problem 1 (34 points) Get the Thevenin equivalent of circuit shown:...

Nov 6, 2018 NAME: POINTS Problem 1 (34 points) Get the Thevenin equivalent of circuit shown: 4Ω 5 Ua O c 6Ω
