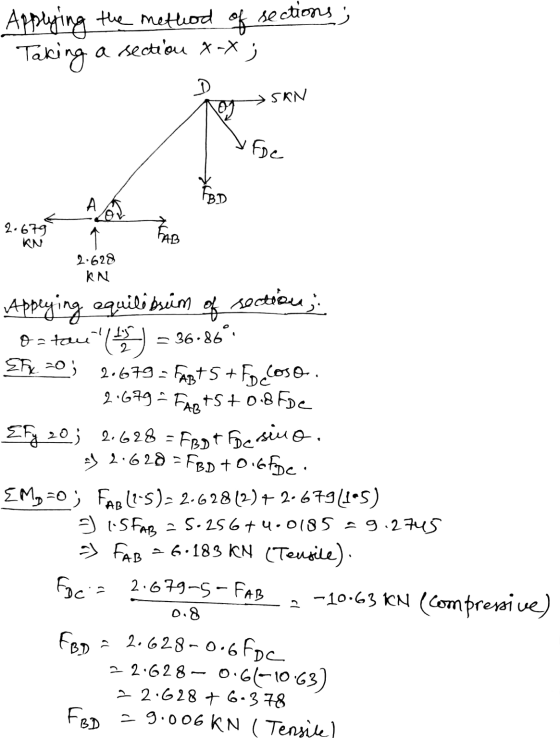

Question 1: For the below truss, if 0=20°, calculate: → 5 kN 1.5 m 2 m...
Question Three: For the truss shown below, find the the internal force in member No. 6...
Question Three: For the truss shown below, find the the internal force in member No. 6 using section method. "M 5 m 5 m 40 KN 5 m 5 m Find the reactions at the supports. Find the internal forces in members 2 and 6. Show calculations. knowing that, M =92.49kN L =96.23kN 0= 40°
Statics problems Question A2 The plane truss shown in Figure A2 is supported at points A and J. -30° and the external loads are Fi 1.5 kN and F 3 kN. Draw the free body diagram of the truss. D...
Statics problems
Question A2 The plane truss shown in Figure A2 is supported at points A and J. -30° and the external loads are Fi 1.5 kN and F 3 kN. Draw the free body diagram of the truss. Determine all the reactions at the supports or, if this is not possible, explain why. a) Calculate the internal forces in members CF, EH, GH and HI, stating whether they are in tension or compression. b) (12) Are members CF and...
Q.1. A plane truss is loaded and while solving for internal forces in truss members we are able to formulate the ten equations given below: Ax +AD0; Ay +AB074+ BC+H(3/5) BD 0 BC +(3/5) CE-0 CD + (...
Q.1. A plane truss is loaded and while solving for internal forces in truss members we are able to formulate the ten equations given below: Ax +AD0; Ay +AB074+ BC+H(3/5) BD 0 BC +(3/5) CE-0 CD + (4/5) BD -0; Ax, Ay and Ey are support reactions, while the letters BC, CD etc. represent the internal forces in corresponding truss members. Solve for all unknown forces using -AB- (4/5) BD-0 -AD+DE-(3/5) BD-0 Ey + (4/5) CE-0 -24 CD-(4/5) CE -0...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the fi...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
A truss is subjocted to a 12 kN vertical load at G and a 20 kN...
A truss is subjocted to a 12 kN vertical load at G and a 20 kN vertical load at F as shown in the figure Calulate (a) Forces in members AG, GF and AB using the method of joints (b) Forces n mem s FC、BCard FE using the mothod of sections Show all your calculations. This question can be answered only with a file attachment. Use only A SINGLE PDF file for your answer. Handwritten work is not accepted Multiple...
Method of Sections Reference the truss shown below. Solve for the forces in the specified members...
Method of Sections Reference the truss shown below. Solve for the forces in the specified members using the Method of Sections. Clearly indicate whether the members are in compression (C) or tension (T). P-10 kN, P, = 6 kN and P, -8 kN. Note: You will not get credit for your work if you do not use the Method of Sections. 3 m Question 21 (6 points) Solve for the reactions at the supports Indicate both the magnitude and direction...
15 m 1.5 m 12 kN Determine (approximately) the force in the truss members GH, FH,...
15 m 1.5 m 12 kN Determine (approximately) the force in the truss members GH, FH, and FE of 8N the shown portal truss, Also find the reactions at the fixed column supports A and B. Assume all members of the truss to be pin connected at their ends 2 m G H I c 6 m 3 m13
1. A simple truss structure is given in iure I below, joint A is commected to...
1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calcula...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calculate the reactions at A and B. (a) By inspection (involving no calculations), list all the zero force members. (b) (c) By method of joints, analyse joints T, S and N to determine the force in members ST NT, RS, SN, MN and RN. In your answer, you must state whether the members are...
Homework # 8 1.5 m 2 m 2 m Given: Simple truss and load as shown....
Homework # 8 1.5 m 2 m 2 m Given: Simple truss and load as shown. Find: Force in members AF of joints. 2 m and FB, using method 10 kN 15 kN
Question Three: For the truss shown below, find the the internal force in member No. 6 using section method. "M 5 m 5 m 40 KN 5 m 5 m Find the reactions at the supports. Find the internal forces in members 2 and 6. Show calculations. knowing that, M =92.49kN L =96.23kN 0= 40°
Statics problems
Question A2 The plane truss shown in Figure A2 is supported at points A and J. -30° and the external loads are Fi 1.5 kN and F 3 kN. Draw the free body diagram of the truss. Determine all the reactions at the supports or, if this is not possible, explain why. a) Calculate the internal forces in members CF, EH, GH and HI, stating whether they are in tension or compression. b) (12) Are members CF and...
Q.1. A plane truss is loaded and while solving for internal forces in truss members we are able to formulate the ten equations given below: Ax +AD0; Ay +AB074+ BC+H(3/5) BD 0 BC +(3/5) CE-0 CD + (4/5) BD -0; Ax, Ay and Ey are support reactions, while the letters BC, CD etc. represent the internal forces in corresponding truss members. Solve for all unknown forces using -AB- (4/5) BD-0 -AD+DE-(3/5) BD-0 Ey + (4/5) CE-0 -24 CD-(4/5) CE -0...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
A truss is subjocted to a 12 kN vertical load at G and a 20 kN vertical load at F as shown in the figure Calulate (a) Forces in members AG, GF and AB using the method of joints (b) Forces n mem s FC、BCard FE using the mothod of sections Show all your calculations. This question can be answered only with a file attachment. Use only A SINGLE PDF file for your answer. Handwritten work is not accepted Multiple...
Method of Sections Reference the truss shown below. Solve for the forces in the specified members using the Method of Sections. Clearly indicate whether the members are in compression (C) or tension (T). P-10 kN, P, = 6 kN and P, -8 kN. Note: You will not get credit for your work if you do not use the Method of Sections. 3 m Question 21 (6 points) Solve for the reactions at the supports Indicate both the magnitude and direction...
15 m 1.5 m 12 kN Determine (approximately) the force in the truss members GH, FH, and FE of 8N the shown portal truss, Also find the reactions at the fixed column supports A and B. Assume all members of the truss to be pin connected at their ends 2 m G H I c 6 m 3 m13
1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calculate the reactions at A and B. (a) By inspection (involving no calculations), list all the zero force members. (b) (c) By method of joints, analyse joints T, S and N to determine the force in members ST NT, RS, SN, MN and RN. In your answer, you must state whether the members are...
Homework # 8 1.5 m 2 m 2 m Given: Simple truss and load as shown. Find: Force in members AF of joints. 2 m and FB, using method 10 kN 15 kN
