Please write down in Verilog code with testbench: Audio Tone Generator like Ambulance siren or Police...

Question

Question

Please write down in Verilog code with testbench:

engineering Electrical-Engineering

Answer 1

Answer #1

Abulance siren

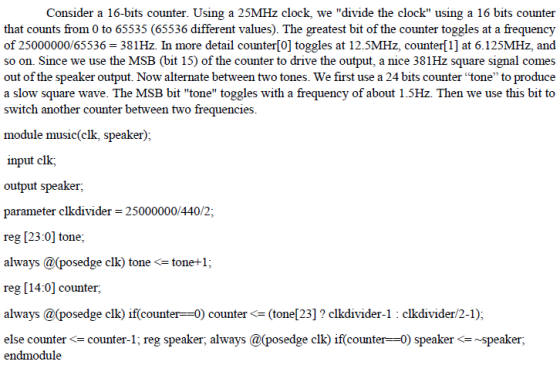

Consider a 16-bits counter. Using a 25MHz clock, we divide the clock using a 16 bits counter that counts from 0 to 65535 (6
