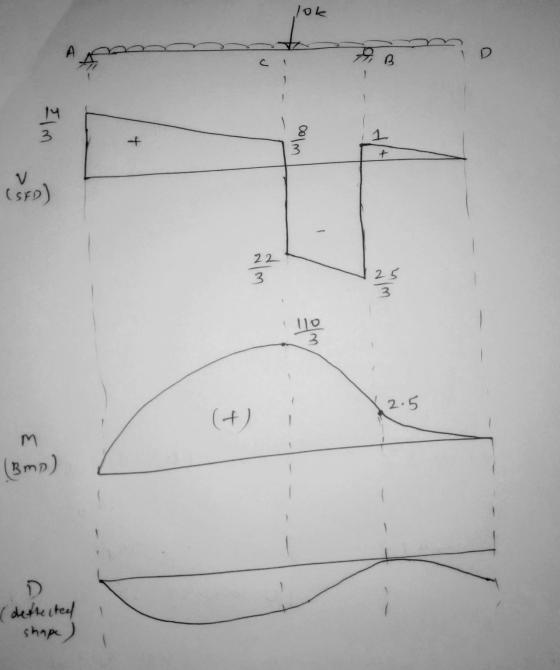

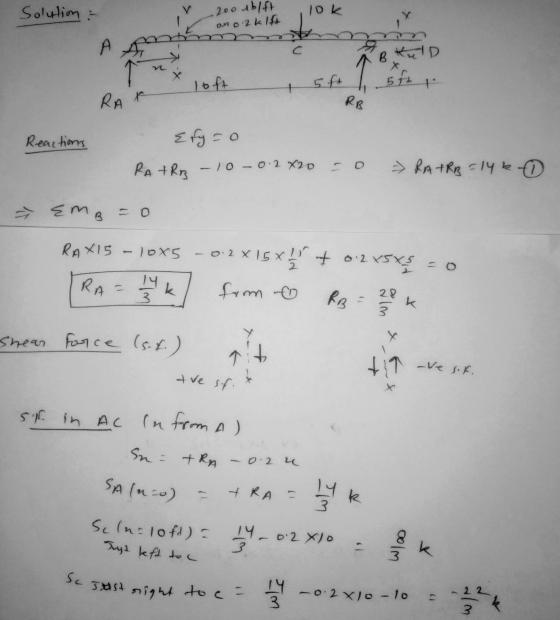

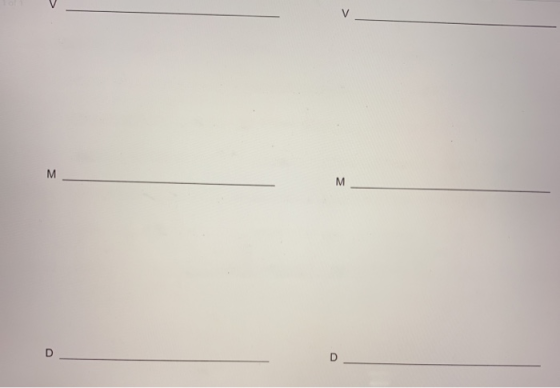

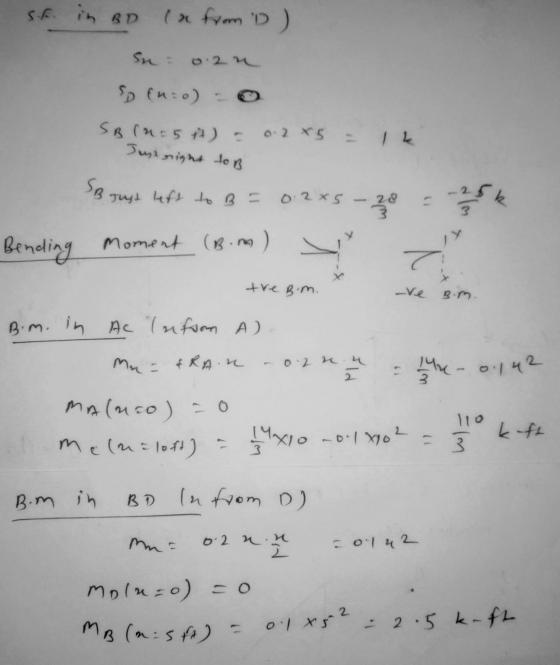

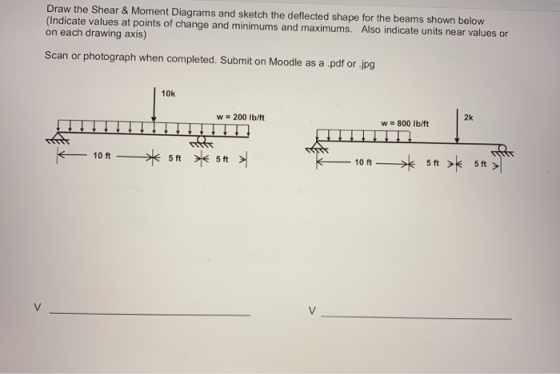

Draw the Shear & Moment Diagrams and sketch the deflected shape for the beams shown below...
Analyze the Frames shown below. Draw the shear and moment diagrams and sketch the approximate deflected shape Settlement at A = 1” and at C = .5” E = 30000 kis, I = 240 in4 2k/ft 8 k B EI EI 36 k-ft С 12'1 EI A 12' 8'
Construct the shear and bending moment diagrams and the qualitative deflected shape for each of the beams shown. 5.45) 20 kips 2 kips/ft Hing 10' 10' 30
6. For the beams and loading shown draw the shear and bending-moment diagrams and then find the maximum absolute values of the shear and bending moment. 2500 lb 60 KN 25 kN/m 500 lb /ft A c Di 5-3 ft--3--3-1-3ft Ć D -3 ft 3 ft — —3 ft 3 ft — Tam-kata2 122 m- 1 m
Draw the shear and moment diagrams including deflected shapes. 12. 3L14 Shear Shear Moment Moment Deflected shape Deflected shape w2 12 Shear Shear Moment Moment Deflected shape Deflected shape
Sketch shear and moment diagrams including deflected shapes. (Indicate exact values) 2.1) PP 2PP L/2 Shear Shear Moment Moment Deflected shape Deflected shape
a Determine the reactions b) Draw the shear and moment diagrams c) Sketch the deflected shape
1. (60 points) Draw axial, shear, and bending moment diagrams for the frame shown below. Draw one set of P, V, and M diagrams for Column AB, one set for Beam BE, and one set for Column DF. There is a fixed support at A and applied forces and moments as shown below. 500 lb 500 lb 5 k-ft 5 k-ft D 5 k-ft B 10 10' 10' E 500 lb/ft 10' 10' 5k s tiskt 5 k-ft 1k 2....
do the 4th question plz 1-(25%) Draw shear and moment diagrams for the beam shown in Figure P-1. Draw a sketch of the deflected shape 2-(25%) Using moment area method, for the beam shown in Figure P-2 find deflection at A. Also, determine the location and value of the maximum deflection in span BC. El is constant 3-(25%) For the frame shown in Figure P-3-find member frees and draw shear and moment diagrams. 4-(25%) Draw/ influence lines for shear to...
For beam given below Draw the shear- and moment diagrams. Label all important values of shear and moment. nclude the conventions for shear and moment directly on the diagrams Sketch the deflected shape To reeiv leredr you mus ue astraighto sbwg ns 3 kips 12 kip-ft 4 ft 4 ft 4 ft
2) For the beam shown below, plot the shear force and bending moment diagrams using the graphical method as we did in class. Track calculations on the side. Clearly label all maximums and minimums and show x values any place where the diagrams cross the axis. | 10 kips 60 kip-ft 6.5 ft
