two parts: need help understanding how to find ideal output DC voltage given conditions, Than finding Capacitor that satisfies conditions
Homework Answers
Add Answer to:
two parts: need help understanding how to find ideal output DC
voltage given conditions, Than finding...
1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output...

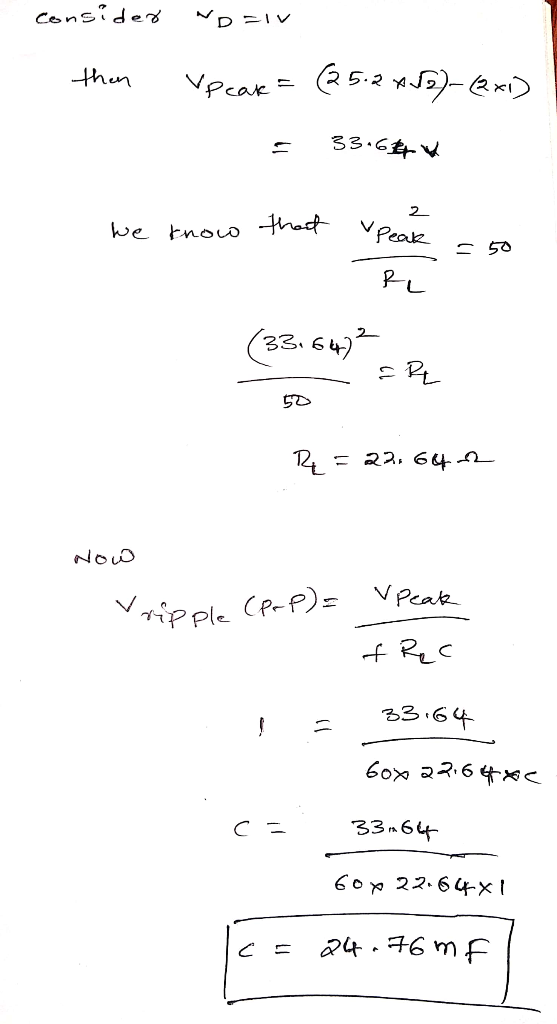

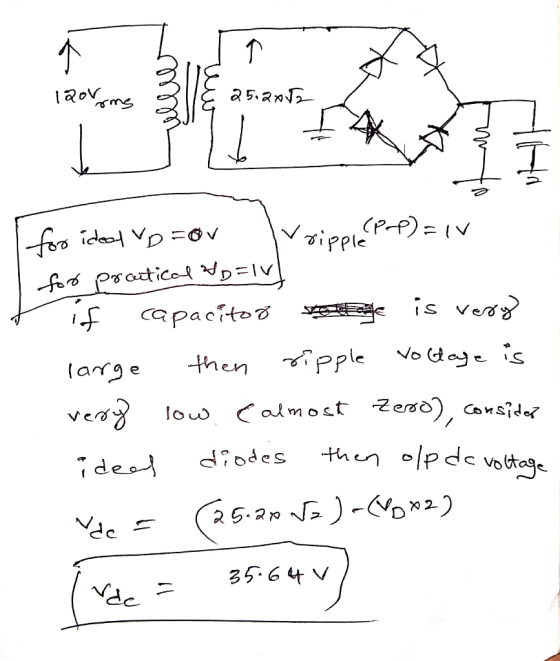

1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output DC voltage will result if a single-phase full-wave diode bridge is used with a large capacitor and the input is exactly 120 Vrms? Assume each diode's forward voltage drop is 1 V. Design a capacitor if the load is 50 W and the voltage ripple is 1 V peak-peak?
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system ...
part g
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...
You need to design a DC power supply that provides an average DC output voltage of...
You need to design a DC power supply that provides an average DC output voltage of 5V to charge your cellphone. The maximum allowed ripple at the output is ±200 mV. Your cellphone can be modeled as a 1 50Ω load. You have to use a bridge rectifier with four diodes. Note: For calculations, consider constant voltage drop model of the diode with V0 = 0.7V. (a) The charger is designed to use in the US, i.e. transformer primary is...
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms...
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms (AC) and an output voltage of 20 V DC. Its design must include a transformer, a diode bridge (4 diodes 1N4001), a load RL = 510 Ω and a capacitor (filter) of 470 μF in parallel with the load. 2.Graph the voltages vL and vD (in LTSpice0, and determine the variation (“ripple”).
Q5) Half-wave rectifier given below has an operating frequency of 120 Hz, while the transformer o...
Q5) Half-wave rectifier given below has an operating frequency of 120 Hz, while the transformer output voltage is 7.2 Vrms a) What is the rms value of the output voltage (V_OUT), if diode has an ON voltage of 1V? b) Minimum value of C to maintain the ripple voltage less than 0.35V, when R is 1 ohm? c) Draw thews and VOUT voltage waveform assuming vs_Ypsinωt D1 V S V OUT
Q5) Half-wave rectifier given below has an operating frequency...
D *4.80 It is required to use a peak rectifier to design a de power supply...
D *4.80 It is required to use a peak rectifier to design a de power supply that provides an average de output voltage of 12 V on which a maximum of ±1-V ripple is allowed. The rectifier feeds a load of 200 2. The rectifier is fed from the line voltage (120 V rms, 60 Hz) through a transformer. The diodes available have 0.7-V drop when conducting. If the designer opts for the half-wave circuit: (a) Specify the rms voltage...
please help Question 1 Consider the following circuit, where the reverse saturation current (Is) is the...
please help
Question 1 Consider the following circuit, where the reverse saturation current (Is) is the same for each diode. D2 o Vo Di Vi WWW R 32 23 a. b. Determine an algebraic expression for V1, for a given Vo, and Is. Given an Is of 40 FA and R1 = 3.3 kl , determine the Vi that produces an output voltage (V.) of 0.625 V. C. Recalculate question-b if Is were to be a thousand times greater at...
Any help? , m Figure &. the peuk foad vollage 10:1 01 a 33.24 v h...
Any help?
, m Figure &. the peuk foad vollage 10:1 01 a 33.24 v h 16.27 v c. 23.7 V d 12V gto cmm Figure 8 34. In Figure S, the de load current loe is: a 13.19 mA h. 11.38 mA C, 10.36 mA d. 26.04 mA 35. In F'igure š, the ouiput frequency tD is: 36. In Figure &, the averaye DC current through diode DI lasn) is: 37, In Figure S, assume the secondary voltage is...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
In this part of the term paper, design a single-phase switch-mode DC power supply with a forward ...
In this part of the term paper, design a single-phase switch-mode DC power supply with a forward converter. Provide answers to the questions below Please combine the single-phase full-wave rectifier from part two of your term paper with a forward converter to produce a switch-mode DC power supply, as shown below. The output of the bridge rectifier serves as input to the forward converter L1 Np: N BH621BH62 D, V1 Load C1 100p 45 Vrms D3 BH62 18H62 D4 Control...
1) A classical rectifier uses a standard 120 V/25.2 V 60 Hz transformer. What ideal output DC voltage will result if a single-phase full-wave diode bridge is used with a large capacitor and the input is exactly 120 Vrms? Assume each diode's forward voltage drop is 1 V. Design a capacitor if the load is 50 W and the voltage ripple is 1 V peak-peak?
part g
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...
You need to design a DC power supply that provides an average DC output voltage of 5V to charge your cellphone. The maximum allowed ripple at the output is ±200 mV. Your cellphone can be modeled as a 1 50Ω load. You have to use a bridge rectifier with four diodes. Note: For calculations, consider constant voltage drop model of the diode with V0 = 0.7V. (a) The charger is designed to use in the US, i.e. transformer primary is...
Q5) Half-wave rectifier given below has an operating frequency of 120 Hz, while the transformer output voltage is 7.2 Vrms a) What is the rms value of the output voltage (V_OUT), if diode has an ON voltage of 1V? b) Minimum value of C to maintain the ripple voltage less than 0.35V, when R is 1 ohm? c) Draw thews and VOUT voltage waveform assuming vs_Ypsinωt D1 V S V OUT
Q5) Half-wave rectifier given below has an operating frequency...
D *4.80 It is required to use a peak rectifier to design a de power supply that provides an average de output voltage of 12 V on which a maximum of ±1-V ripple is allowed. The rectifier feeds a load of 200 2. The rectifier is fed from the line voltage (120 V rms, 60 Hz) through a transformer. The diodes available have 0.7-V drop when conducting. If the designer opts for the half-wave circuit: (a) Specify the rms voltage...
please help
Question 1 Consider the following circuit, where the reverse saturation current (Is) is the same for each diode. D2 o Vo Di Vi WWW R 32 23 a. b. Determine an algebraic expression for V1, for a given Vo, and Is. Given an Is of 40 FA and R1 = 3.3 kl , determine the Vi that produces an output voltage (V.) of 0.625 V. C. Recalculate question-b if Is were to be a thousand times greater at...
Any help?
, m Figure &. the peuk foad vollage 10:1 01 a 33.24 v h 16.27 v c. 23.7 V d 12V gto cmm Figure 8 34. In Figure S, the de load current loe is: a 13.19 mA h. 11.38 mA C, 10.36 mA d. 26.04 mA 35. In F'igure š, the ouiput frequency tD is: 36. In Figure &, the averaye DC current through diode DI lasn) is: 37, In Figure S, assume the secondary voltage is...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
In this part of the term paper, design a single-phase switch-mode DC power supply with a forward converter. Provide answers to the questions below Please combine the single-phase full-wave rectifier from part two of your term paper with a forward converter to produce a switch-mode DC power supply, as shown below. The output of the bridge rectifier serves as input to the forward converter L1 Np: N BH621BH62 D, V1 Load C1 100p 45 Vrms D3 BH62 18H62 D4 Control...
