Homework Answers

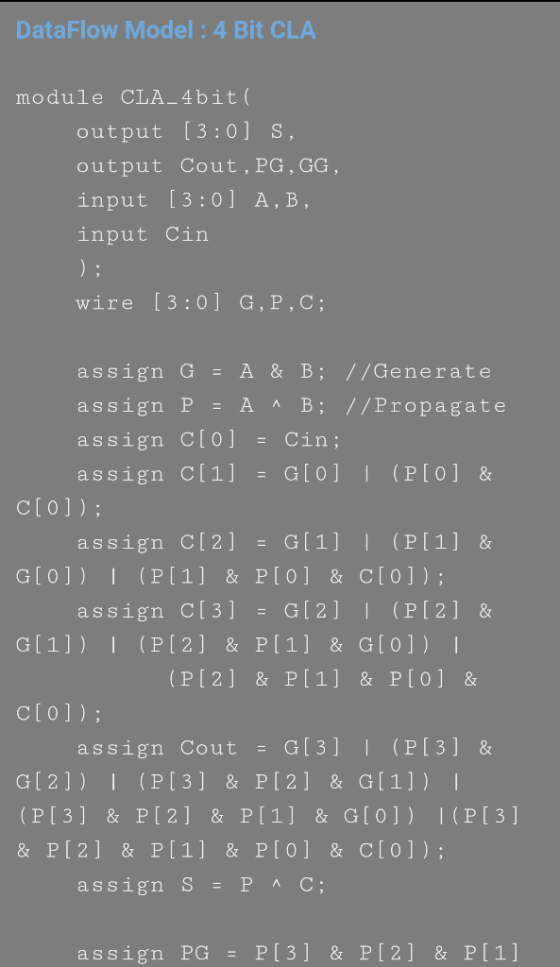

![DataFlow Model: 4 Bit CLA module CLA_4bit( output [3:0] S, output Cout,PG,GG input [3:0] A, B, input Cin wire 13:0G,P, C assi](http://img.homeworklib.com/questions/5040a8f0-b3d2-11eb-94c0-43fc627773f6.png?x-oss-process=image/resize,w_560)

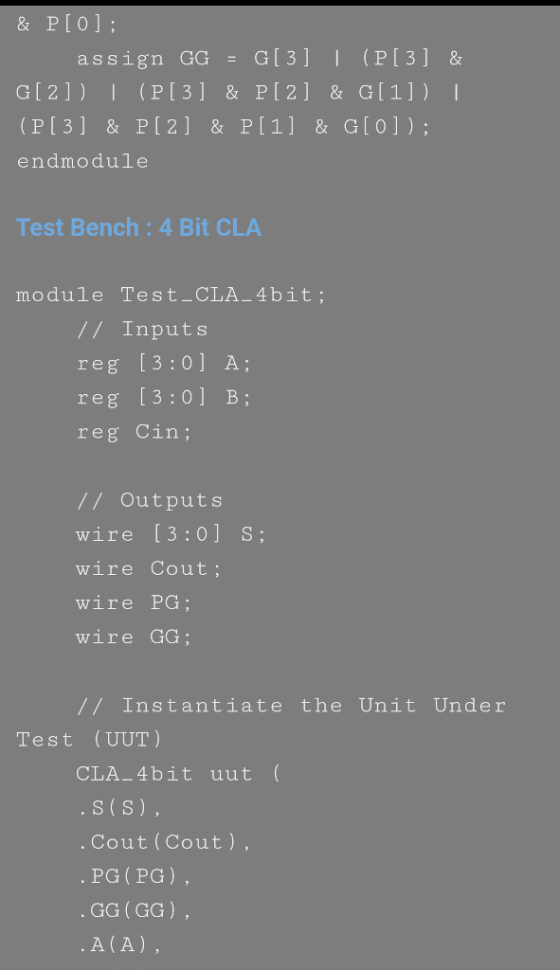

![assign GG-G13 I (Pl3 & G [2]) I(PI3]& P 12]&G[1]) endmodule Test Bench:4 Bit CLA module Test_CLA 4bit; // Inputs reg [3:O] A;](http://img.homeworklib.com/questions/50a9f1e0-b3d2-11eb-94dd-5726b819aa8e.png?x-oss-process=image/resize,w_560)

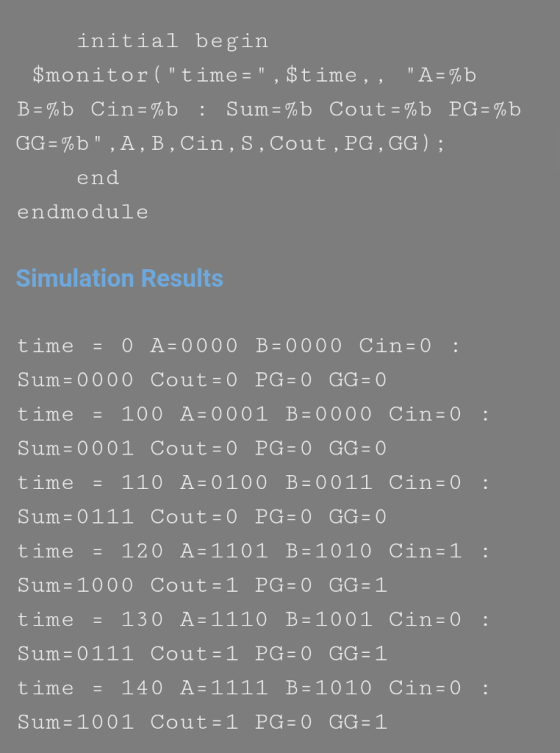

Add Answer to:

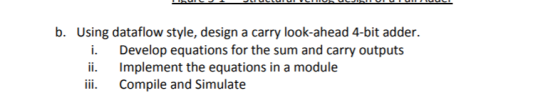

b. Using dataflow style, design a carry look-ahead 4-bit adder. i. Develop equations for the sum...
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
WRITE IN SYSTEM VERILOG:
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Th...
WRITE IN SYSTEM VERILOG:
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
- Write a dataflow-style Verilog module Vradder8 for an adder with two 8-bit inputs A and...
- Write a dataflow-style Verilog module Vradder8 for an adder with two 8-bit inputs A and B, carry input CIN, 8-bit sum output S, and carry output COUT. Please use handwriting
P5: Design a 3-bit carry-look-ahead adder. Two 3-bit numbers are (A2,A1,A0) and (B2,B1,B0). Use any gates.
P5: Design a 3-bit carry-look-ahead adder. Two 3-bit numbers are (A2,A1,A0) and (B2,B1,B0). Use any gates.
8.32 Using the ripple carry 4-bit parallel adder (A + B) circuit in Fig. 8.12, answer the followi...
show all works and explain.
8.32 Using the ripple carry 4-bit parallel adder (A + B) circuit in Fig. 8.12, answer the following question. i XxAX,o. use the 4-bit adder module above to draw a moxlule that computes -4X using an 8-bit word in 2 s complement format. B b3babibo Cin co s3 s2 sl Fig. 8.12 Ripple carry adder for exercise 8.32
8.32 Using the ripple carry 4-bit parallel adder (A + B) circuit in Fig. 8.12, answer the...
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit...
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit inputs x and y, the following equation gives ci+1 (the carry out bit from the i" position) in terms of the inputs for the ih bit sum x, yi, and ci (the carry-in bit): Letting gi xiyi and pi = xi+yi, this can be expressed as: ci+1 = gi+piCi a) In a ripple carry adder structure, the carry bits are computed sequentially. That is,...
Please design and implement a combinational circuit called 4-bit adder to add two 4-bit binary numbers,...
Please design and implement a combinational circuit called 4-bit adder to add two 4-bit binary numbers, e.g. 1011 + 1110 = 1 1 0 0 1, the 5-bit result is 1 1 0 0 1 in which the leftmost bit is carry-out bit and sum result is 1 0 0 1, so that final sum is 1 1 0 0 1 which is 25 in decimal. (b) Design and Implement the four-bit adder circuit preferably using CEDAR logic simulator...
Implement a 4-bit Carry Look Ahead unit with 2 4-bit inputs and a 1-bit carry-in input....
Implement a 4-bit Carry Look Ahead unit with 2 4-bit inputs and a 1-bit carry-in input. The CLA must output a 4-bit carry-out, 4-bit generator and 4-bit propogator. Cannot use the arithmetic library in logism. MUST use Logism or hand draw the circuit with the input and output given below to create the circuit.
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple...
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple style as shown in the figure below. B3 A3 B2 A2 B1 A1 **** c0='1' Sought: Please calculate the output carries for each full adder (FA) using A=0x01 and B=0x04. It is required to show ALL incremental steps of the solution, then record each the final results in the table below. C4 C3 C2 ci
WRITE IN SYSTEM VERILOG:
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
WRITE IN SYSTEM VERILOG:
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
show all works and explain.
8.32 Using the ripple carry 4-bit parallel adder (A + B) circuit in Fig. 8.12, answer the following question. i XxAX,o. use the 4-bit adder module above to draw a moxlule that computes -4X using an 8-bit word in 2 s complement format. B b3babibo Cin co s3 s2 sl Fig. 8.12 Ripple carry adder for exercise 8.32
8.32 Using the ripple carry 4-bit parallel adder (A + B) circuit in Fig. 8.12, answer the...
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit inputs x and y, the following equation gives ci+1 (the carry out bit from the i" position) in terms of the inputs for the ih bit sum x, yi, and ci (the carry-in bit): Letting gi xiyi and pi = xi+yi, this can be expressed as: ci+1 = gi+piCi a) In a ripple carry adder structure, the carry bits are computed sequentially. That is,...
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple style as shown in the figure below. B3 A3 B2 A2 B1 A1 **** c0='1' Sought: Please calculate the output carries for each full adder (FA) using A=0x01 and B=0x04. It is required to show ALL incremental steps of the solution, then record each the final results in the table below. C4 C3 C2 ci
