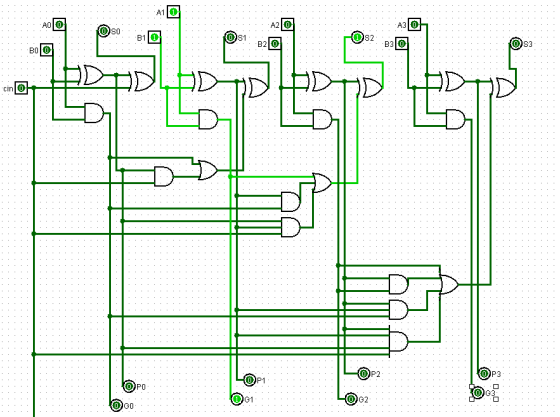

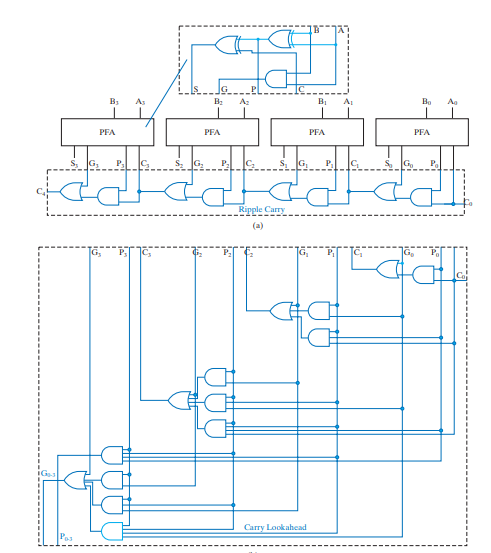

Implement a 4-bit Carry Look Ahead unit with 2 4-bit inputs and a 1-bit carry-in input....
Implement a 4-bit Carry Look Ahead unit with 2 4-bit inputs and a 1-bit carry-in input. The CLA must output a 4-bit carry-out, 4-bit generator and 4-bit propogator.
Cannot use the arithmetic library in logism.
MUST use Logism or hand draw the circuit with the input and output given below to create the circuit.
Homework Answers
Add Answer to:
Implement a 4-bit Carry Look Ahead unit with 2 4-bit inputs and
a 1-bit carry-in input....
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
WRITE IN SYSTEM VERILOG:
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit...
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit inputs x and y, the following equation gives ci+1 (the carry out bit from the i" position) in terms of the inputs for the ih bit sum x, yi, and ci (the carry-in bit): Letting gi xiyi and pi = xi+yi, this can be expressed as: ci+1 = gi+piCi a) In a ripple carry adder structure, the carry bits are computed sequentially. That is,...
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Th...
WRITE IN SYSTEM VERILOG:
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute...
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
b. Using dataflow style, design a carry look-ahead 4-bit adder. i. Develop equations for the sum...
b. Using dataflow style, design a carry look-ahead 4-bit adder. i. Develop equations for the sum and carry outputs ii. Implement the equations in a module iii. Compile and Simulate
Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU) with four micro-operations: 1) Complete...
Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU)
with four micro-operations:
1) Complete the table below by showing the select input bits and the necessary groupings. (5 points) Select Inputs Micro-Operation Description F = A-B-1 F = A + B +1 F = AVB F = ashl A Subtraction with borrow Addition with carry Logic OR Arithmetic shift left 2) Draw a detailed logic circuit of the ALU's arithmetic unit. (10 points) 3) Draw a detailed logic...
Create a 4 bit Signed Multiplier with the following specifications: INPUTS A 4 bit 2's complement...
Create a 4 bit Signed Multiplier with the following specifications: INPUTS A 4 bit 2's complement binary number. This could be positive or negative. B 4 bit 2's complement binary number. This could be positive or negative OUTPUT: 8 bit 2's complement binary number (This could be a positive or negative number) The overall circuit should look like this: 2's Complement Signed Multiplier At a minimum, the circuit must be implemented using controlled inverters and an unsigned multiplier as discussed...
Create a combinatorial circuit that performs a 3 bit multiplication. The circuit will have two 3-bit...
Create a combinatorial circuit that performs a 3 bit multiplication. The circuit will have two 3-bit inputs A2 A1 A0 and B2 B1 B0 and one 6 bit output. Create a combinatorial circuit that performs a 3-bit multiplication. The circuit will accept two 3-bit inputs A2 A1 A0 and B2 B1 B0 and generate one 6 bit output. First, create 3 Integrated circuits (iC). The first IC takes as input, B0, A2, A1, and A0 as input, and it generates...
5. A binary subtractor can be implemented using the carry look-ahead principle. (a) Draw the truth...
5. A binary subtractor can be implemented using the carry look-ahead principle. (a) Draw the truth table of a binary subtractor. Use Xi, Yi, di, bi, and bi+1, for minuend, subtrahend, difference, borrow input, and borrow output respectively. (b) Derive expressions for the borrow-generate Yi and borrow propagate Ti signals for a binary subtractor. (c) Present the design of a circuit to compute d; and bi+1 from Yia Tį, and bi.
WRITE IN SYSTEM VERILOG:
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
C2. Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module.
Problem 2. Ripple Carry and Carry Look-ahead Adders For the binary adding circuit that adds n-bit inputs x and y, the following equation gives ci+1 (the carry out bit from the i" position) in terms of the inputs for the ih bit sum x, yi, and ci (the carry-in bit): Letting gi xiyi and pi = xi+yi, this can be expressed as: ci+1 = gi+piCi a) In a ripple carry adder structure, the carry bits are computed sequentially. That is,...
WRITE IN SYSTEM VERILOG:
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
Using your preferred HDL program, design a complete 4-bit Carry Look Ahead (CLA) adder module. Then write a testbench to check its functionality C2.
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
b. Using dataflow style, design a carry look-ahead 4-bit adder. i. Develop equations for the sum and carry outputs ii. Implement the equations in a module iii. Compile and Simulate
Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU)
with four micro-operations:
1) Complete the table below by showing the select input bits and the necessary groupings. (5 points) Select Inputs Micro-Operation Description F = A-B-1 F = A + B +1 F = AVB F = ashl A Subtraction with borrow Addition with carry Logic OR Arithmetic shift left 2) Draw a detailed logic circuit of the ALU's arithmetic unit. (10 points) 3) Draw a detailed logic...
Create a 4 bit Signed Multiplier with the following specifications: INPUTS A 4 bit 2's complement binary number. This could be positive or negative. B 4 bit 2's complement binary number. This could be positive or negative OUTPUT: 8 bit 2's complement binary number (This could be a positive or negative number) The overall circuit should look like this: 2's Complement Signed Multiplier At a minimum, the circuit must be implemented using controlled inverters and an unsigned multiplier as discussed...
5. A binary subtractor can be implemented using the carry look-ahead principle. (a) Draw the truth table of a binary subtractor. Use Xi, Yi, di, bi, and bi+1, for minuend, subtrahend, difference, borrow input, and borrow output respectively. (b) Derive expressions for the borrow-generate Yi and borrow propagate Ti signals for a binary subtractor. (c) Present the design of a circuit to compute d; and bi+1 from Yia Tį, and bi.
