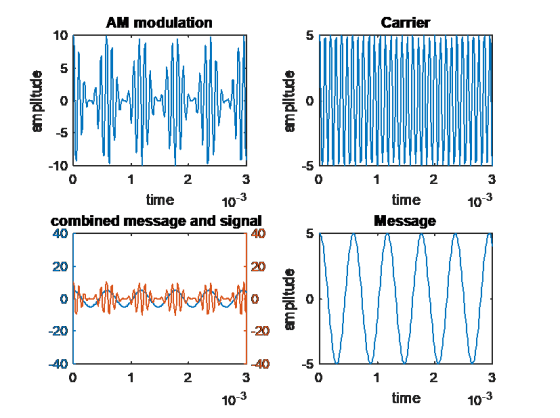

AM modulation Carier 10 0 -5 -10 0 죠 죠 -5 0 tirme combined message and signal time Message 10 10 20 0 죠 20 -5 10 time 10

Select the correct statement that describes what you see in the plots:
a. The signal, s(t), is distorted by the dramatic change in message frequency.
b. The message amplitude change can be seen in the signal plot of s(t). When comparing plots for s(t) and m(t), it is obvious that the signal accurately represents the message.
c. Both the message and carrier frequencies increase, therefore distortion will be experienced.
d. The phase of the signal has shifted to the right, because AM techniques impact phase and amplitude.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

b)The message amplitude change can be seen in the signal plot of s(t). When comparing plots for s(t) and m(t), it is obvious that the signal accurately represents the message

Explanation:

From figure of s(t) we can see that the carrier wave amplitude is changed in accordance with the message m(t) i.e. Amplitude modulation (AM) the amplitude modulated signal accurately represents the message signal.No phase is impacted in amplitude modulation

Pls give thumbs up.

0 0
Add a comment
Know the answer?
Add Answer to:
Select the correct statement that describes what you see in the plots: a. The signal, s(t),...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Select the correct statement regarding the difference between the FM modulated signal waveform and the AM...

    Select the correct statement regarding the difference between the FM modulated signal waveform and the AM modulated signal waveform. a. The FM signal wave changes frequency according to the message wave m(t). The "peak" amplitude of the FM signal, Ac=5, remains constant. b. There is no difference between the FM and AM signal waves because they are both modulated by the same message wave, m(t) = Amcos(2πfmt) c. The AM signal wave frequency changes with the message wave m(t) while...

  • QUESTION 5Select the correct statement(s) regarding amplitude modulation (AM). a. If the AM Index is greater...

    QUESTION 5Select the correct statement(s) regarding amplitude modulation (AM). a. If the AM Index is greater than 1 (i.e., µAM>1), then over modulation occurs leading to signal distortion b. With AM, the message is captured as amplitude changes to the carrier’s amplitude. c. The AM modulated signal bandwidth is dependent upon the highest frequency (fm), and frequency bandwidth, of the message d. All of the above are correct QUESTION 6 Amplitude Modulation (AM) describes a method where the baseband message...

  • An information signal is of the form s(t) = sin(2*pi*t)/t. The signal amplitude modulates a carrier...

    An information signal is of the form s(t) = sin(2*pi*t)/t. The signal amplitude modulates a carrier of frequency 10Hz. Find and sketch the Waveform and Fourier transform of the transmitted signal before and after AM modulation. For AM modulation you can consider the simple case of DSB format (or double-sideband suppressed carrier modulation).

  • comunication Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. w...

    comunication Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with phase Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with...

  • For the AM waveform s(t) shown, the carrier signal has a peak amplitude of 0.8 V...

    For the AM waveform s(t) shown, the carrier signal has a peak amplitude of 0.8 V What is the modulating index? SCO Foc 10 0.01 0.015 0.02 Pregunta 2 1 ptos. For the AM waveform s(t) shown, the carrier signal has a peak amplitude of 0.8 V What is the frequency of the message signal? Give your answer in hertz. 5x 10-3 0.015 0.02 0.01

  • Assume that an AM transmitter is modulated with a video testing signal given by em(t) =...

    Assume that an AM transmitter is modulated with a video testing signal given by em(t) = =20 + 60 sin (2πf1t), where f1 = 3.57 MHz. Let the carrier signal c(t) = Ac cos(2πfct), where Ac = 100 and fc = 100 MHz. The AM signal is fed into a 50-Ω load. (a) Derive an expression for the AM DSB-FC signal in time domain. (b) Construct the AM waveform, giving numerical values of the maximum amplitude, Amax and the minimum...

  • Suppose you wish to sample an amplitude modulated signal x(t)-m(t) cos(Q,t) where m(1) is the message...

    Suppose you wish to sample an amplitude modulated signal x(t)-m(t) cos(Q,t) where m(1) is the message signal and Ω,-2π 10 (rad/sec) is the carrier frequency 8.6 a) If the message is anacusic signal with frequencies in a band of [0, 22] kHz, what would be maximum frequency present in x(t)?

  • Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...

    Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...

  • Problem No. 1: Let us consider that a baseband message signal m(t)=4cos(2000xt) has to be transmitted...

    Problem No. 1: Let us consider that a baseband message signal m(t)=4cos(2000xt) has to be transmitted from a location 'A' to its destination 'B' using a carrier signal given by c(t)=2cos(10000#t). The signal s() m(t)c(i) is the modulated signal which will be transmitted. Consider that the signal is transmitted through a noiseless channel and received at the receiver at location 'B' as the signal s(t). Based on this information, perform the following tasks. 1. Find, sketch and label the spectrum...

  • ()=< a) Consider the case where a modulating tone v, a cos(2ft) is used in a...

    ()=< a) Consider the case where a modulating tone v, a cos(2ft) is used in a Double Side Band m Amplitude Modulation (DSC-AM) scheme whose varying with time carrier amplitude is [K+a cos(2ft Provide the equation of the modulated carrier signal v (t and then derive from that an expression that shows the spectral components of v (t). Furthermore provide the phasor representation of DSB-AM. Now consider the case of Double Side Band Suppressed carrier AM and provide both the...
