Homework Answers
Add Answer to:

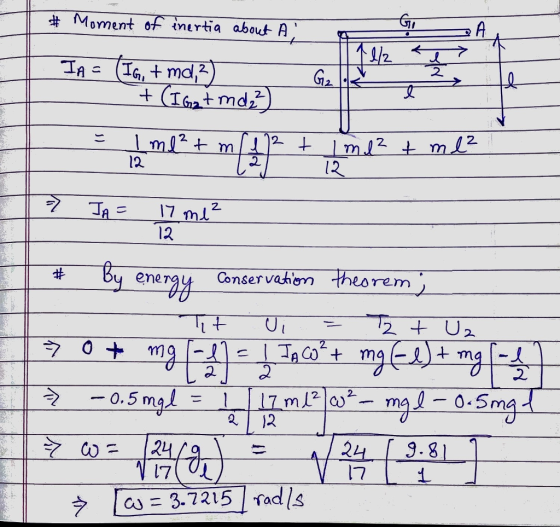

Use
Energy Method:

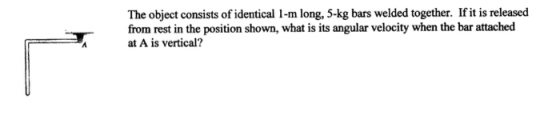

The object consists of identical 1-m long, 5-kg bars welded together. If it...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender b...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane...
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane as shown. If the angular velocity is constant at 5 rad/s, determine the components of the reactions at the hinge
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form...
The two slender bars each of mass m = 4.6 kg and length b = 700...
The two slender bars each of mass m = 4.6 kg and length b = 700 mm are pinned together and move in the vertical plane. If the bars are released from rest in the position shown and move together under the action of a couple M = 16 Nom of constant magnitude applied to AB, determine the velocity of A as it strikes O. Initially the angle 0 = 24º. B ele B M Answer: VA = m/s
A 1.0 kg object is attached to one end of a 1.25 m long string. The...
A 1.0 kg object is attached to one end of a 1.25 m long string. The other end of the string is fixed. The object is released from rest when the string is horizontal falls to a vertical 90-degree angle. What is the speed of the object as the lowest point along the path (when the string is vertical)? What is the value of the tension in the string at the lowest point? What is the work done by the...
The assembly consists of two 10-kg bars which are in connected the bars are released omrest...
The assembly consists of two 10-kg bars which are in connected the bars are released omrest when the 5- k a t has a radius of 0.5 m and roll without slipping 1) Determine angular vity of the bar Alamat measured close Express your answer using the significant figures. Enter positive value if the angular velocity clockwise and negative value the agua EVO AED C O ? Submit X Incorrect; Try Again, 4 attempts remaining Figure 101 Part B Determine...
show all work please find both AB and BC!! The assembly consists of two 25-kg bars...
show all work please
find both AB and BC!!
The assembly consists of two 25-kg bars which are pin connected. The bars are released from rest when 0 = 60°. The 8-kg disk at C has a radius of 0.5 m and rolls without slipping. (Figure 1) Figure 1 of 1 В 3 m 3 m o А C Determine the angular velocity of the bar AB at the instant 0 = 30°, measured clockwise. Express your answer in radians...
An L-shaped rigid body ABC consists of two identical uniform slender rods, each of mass 40 kg and...
An L-shaped rigid body ABC consists
of two identical uniform slender rods, each of mass 40
kg and of length, L= 1.6
m welded together. The rigid body is pinned at its
vertex B as shown, with the
end C attached to a spring with a spring
constant, 6 N/cm .
PART A - Determine the natural cycle frequency of the
system.
PART B - If during the oscillatory motion the
end A is observed to move with a speed of 0.12
m/s when AB is vertical,
what...
The pendulum consists of a 7-kg slender rod with length (L) of 1.2 m and it...
The pendulum consists of a 7-kg slender rod with length (L) of 1.2 m and it is fixed to a 16-kg disk with radius of 0.3 m. If the spring has an un-stretched length of 0.2 m and stiffness of 200 N/m, determine the angular velocity of the pendulum when it is released from rest and rotates clockwise 90° from the position shown. The roller at C allows the spring to always remain vertical. At θ-00, the stretched length of...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
Bars AB and BE, each of mass 4.4 kg, are welded together and are pin-connected to two links AC and BD. The assembly is released from rest in the position shown and neglecting the masses of the links, determine the maximum shear force and bending moment of the bars AB and BE. (Round the final answers to two decimal places.) А 30° E 0.5 m 60° С 0.5 m -BO 30° OD For bar AB, The maximum shear force is...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane as shown. If the angular velocity is constant at 5 rad/s, determine the components of the reactions at the hinge
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form...
The two slender bars each of mass m = 4.6 kg and length b = 700 mm are pinned together and move in the vertical plane. If the bars are released from rest in the position shown and move together under the action of a couple M = 16 Nom of constant magnitude applied to AB, determine the velocity of A as it strikes O. Initially the angle 0 = 24º. B ele B M Answer: VA = m/s
The assembly consists of two 10-kg bars which are in connected the bars are released omrest when the 5- k a t has a radius of 0.5 m and roll without slipping 1) Determine angular vity of the bar Alamat measured close Express your answer using the significant figures. Enter positive value if the angular velocity clockwise and negative value the agua EVO AED C O ? Submit X Incorrect; Try Again, 4 attempts remaining Figure 101 Part B Determine...
show all work please
find both AB and BC!!
The assembly consists of two 25-kg bars which are pin connected. The bars are released from rest when 0 = 60°. The 8-kg disk at C has a radius of 0.5 m and rolls without slipping. (Figure 1) Figure 1 of 1 В 3 m 3 m o А C Determine the angular velocity of the bar AB at the instant 0 = 30°, measured clockwise. Express your answer in radians...
An L-shaped rigid body ABC consists
of two identical uniform slender rods, each of mass 40
kg and of length, L= 1.6
m welded together. The rigid body is pinned at its
vertex B as shown, with the
end C attached to a spring with a spring
constant, 6 N/cm .
PART A - Determine the natural cycle frequency of the
system.
PART B - If during the oscillatory motion the
end A is observed to move with a speed of 0.12
m/s when AB is vertical,
what...
The pendulum consists of a 7-kg slender rod with length (L) of 1.2 m and it is fixed to a 16-kg disk with radius of 0.3 m. If the spring has an un-stretched length of 0.2 m and stiffness of 200 N/m, determine the angular velocity of the pendulum when it is released from rest and rotates clockwise 90° from the position shown. The roller at C allows the spring to always remain vertical. At θ-00, the stretched length of...
