Norton's current is the short circuit current flowing through ab now when ab is shorted inductor is also shorted so current = 6(0)/-j2 = 3(90)
Where () represents phase angle
Thus c is correct
Add Answer to:

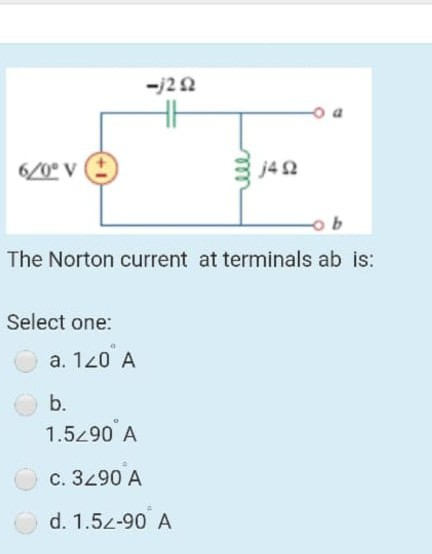

-22 HH 6/0° V The Norton current at terminals ab is: Select one: a. 120 A...
Can someone help me with this question? 6. Find the Norton equivalent resistance (RN) and current...
Can someone help me with this question?
6. Find the Norton equivalent resistance (RN) and current (IN) at terminals a-b for the circuit shown below 4 2 62 ww 6A 120 V 3 Q 2 9 ww ww
6. Find the Norton equivalent resistance (RN) and current (IN) at terminals a-b for the circuit shown below 4 2 62 ww 6A 120 V 3 Q 2 9 ww ww
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor.
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 20 A. Part A What is the frequency of the inductor current? Part B If the phase angle of the voltage is zero, what is the phase angle of the current? Part C What is the inductive reactance of the inductor? Part D What is the inductance of the inductor? Part E What is the...
3) Find the Norton Equivalent circuit with respect to X, y terminals. 220.0 100-12 200 x...
3) Find the Norton Equivalent circuit with respect to X, y terminals. 220.0 100-12 200 x SV 2206 '502 152 А 888 2 8 2 A $ 4 % 5 - 3 6 & 7 8 a 0 E R T Y U ор D F. G H. "J к L C V B N M ?
3. (30% ) The voltage and current at the terminals of a load circuit are given...
3. (30% ) The voltage and current at the terminals of a load circuit are given by: )=1202 sin(ar) V i ()=812 sin(ar-60)+6/2 sin(Bax -120) A (V) and (A). (a) Find (b) Find the real (average) power P delivered to the load. (c) The distortion factor of the current waveform. (e) Find the displacement power factor DPF for this circuit. (f) Find the power factor of the load. (g) Is the load linear? 3. (30% ) The voltage and current...
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 1...
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 120) Use the mesh-current method to find the steady state expression for velt) in the circuit shown. Answer must be in time domain. Below excitation voltage v is given in time domain v(t) 0.75 V,<t 2 Ω ) 5osin(40140°) Problem 3...
1) In a biochemical reaction in which ΔH < 0 and ΔS > 0, Select one:...
1) In a biochemical reaction in which ΔH < 0 and ΔS > 0, Select one: a. the reaction is spontaneous b. the reaction is endothermic c. the reaction is endergonic d. ΔG is positive 2) NAD+ and FAD are often referred to as Select one: a. redox proteins b. polymers c. reduced dinucleotides d. electron-carrying coenzymes 3) What is [P]/[R] when ΔG = ΔG°´? Select one: a. –1 b. 0 c. 1 d. 2.3 4) For the binding reaction...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...
Question 5 6+3j ohm 4 o | 110/0° Ꮩ 11 +9j Ohm 110-240 V 110-120° v...
Question 5 6+3j ohm 4 o | 110/0° Ꮩ 11 +9j Ohm 110-240 V 110-120° v B 11 +9j Ohm N 6+3j ohm 11 +9j Ohm 6+3j ohm Figure 1. For the circuit of the three-wire Y-Y system in Figure 1 above, a) Calculate the total impedance Z b) Calculate the current in phase a c) Calculate the load phase voltage VAN d) Calculate the current in phase b e) Calculate the load phase voltage Von f) Calculate the current...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Can someone help me with this question?
6. Find the Norton equivalent resistance (RN) and current (IN) at terminals a-b for the circuit shown below 4 2 62 ww 6A 120 V 3 Q 2 9 ww ww
6. Find the Norton equivalent resistance (RN) and current (IN) at terminals a-b for the circuit shown below 4 2 62 ww 6A 120 V 3 Q 2 9 ww ww
3) Find the Norton Equivalent circuit with respect to X, y terminals. 220.0 100-12 200 x SV 2206 '502 152 А 888 2 8 2 A $ 4 % 5 - 3 6 & 7 8 a 0 E R T Y U ор D F. G H. "J к L C V B N M ?
3. (30% ) The voltage and current at the terminals of a load circuit are given by: )=1202 sin(ar) V i ()=812 sin(ar-60)+6/2 sin(Bax -120) A (V) and (A). (a) Find (b) Find the real (average) power P delivered to the load. (c) The distortion factor of the current waveform. (e) Find the displacement power factor DPF for this circuit. (f) Find the power factor of the load. (g) Is the load linear? 3. (30% ) The voltage and current...
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 120) Use the mesh-current method to find the steady state expression for velt) in the circuit shown. Answer must be in time domain. Below excitation voltage v is given in time domain v(t) 0.75 V,<t 2 Ω ) 5osin(40140°) Problem 3...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...
Question 5 6+3j ohm 4 o | 110/0° Ꮩ 11 +9j Ohm 110-240 V 110-120° v B 11 +9j Ohm N 6+3j ohm 11 +9j Ohm 6+3j ohm Figure 1. For the circuit of the three-wire Y-Y system in Figure 1 above, a) Calculate the total impedance Z b) Calculate the current in phase a c) Calculate the load phase voltage VAN d) Calculate the current in phase b e) Calculate the load phase voltage Von f) Calculate the current...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
