PLEASE ANSWER QUESTIONS 10 AND 11
Homework Answers

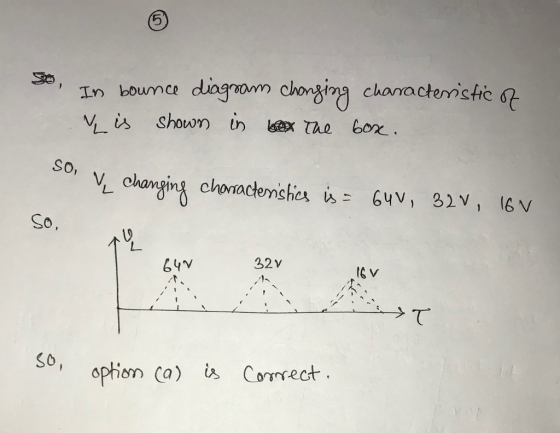

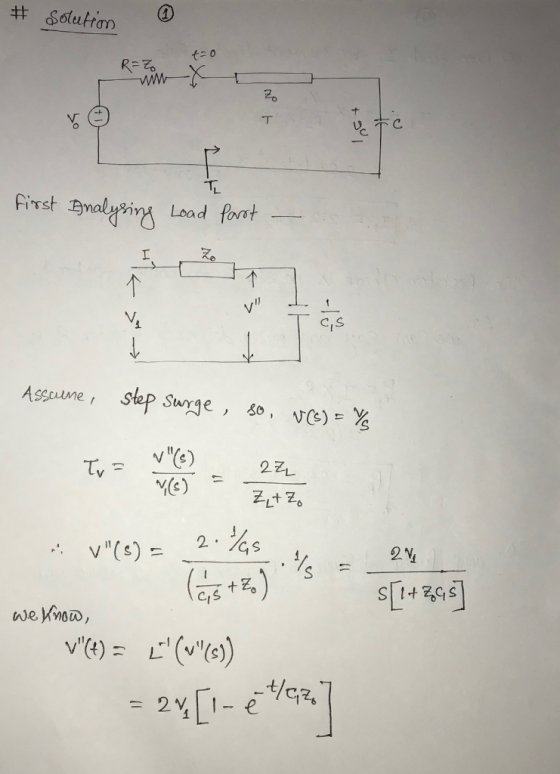

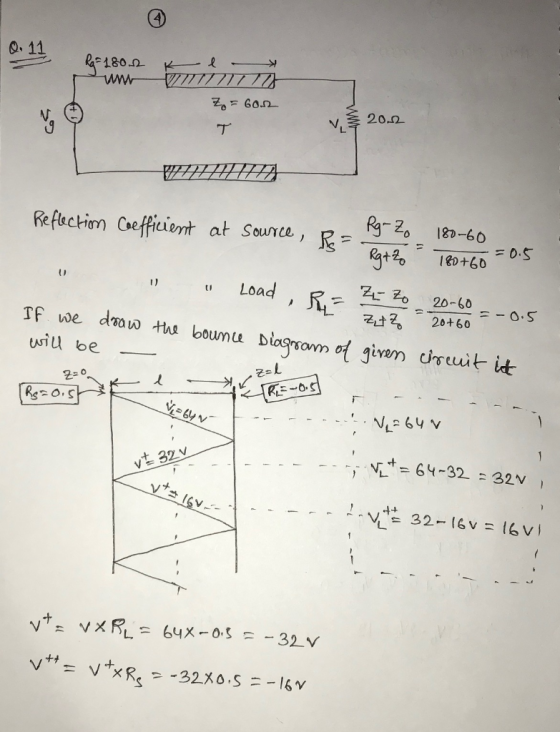

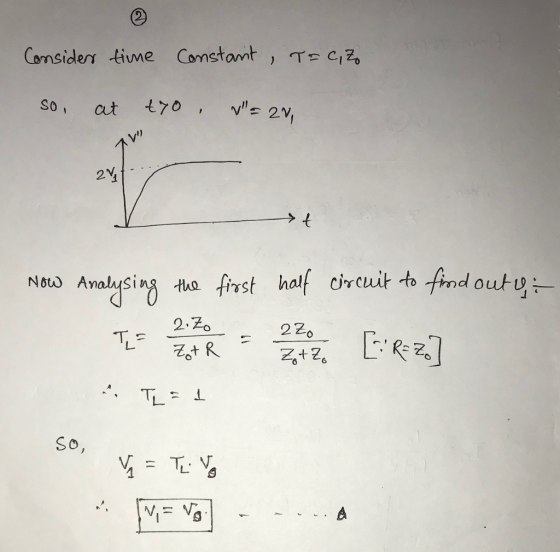

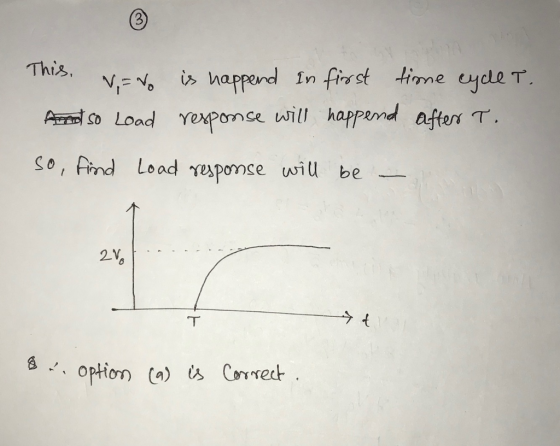

Add Answer to:

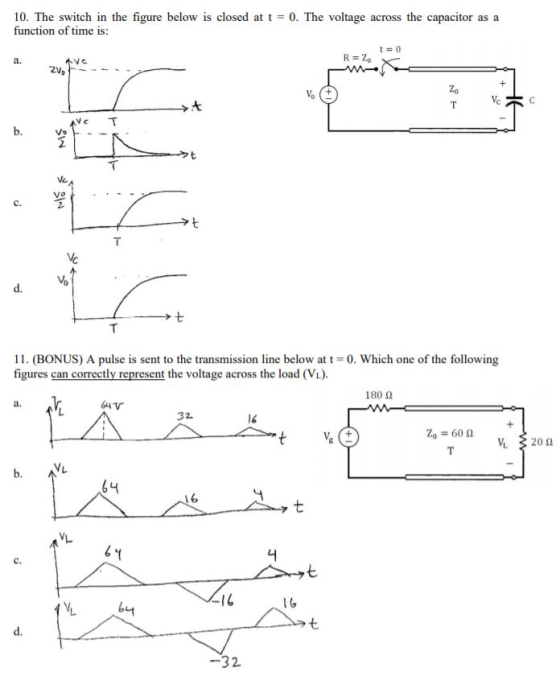

PLEASE ANSWER QUESTIONS 10 AND 11
10. The switch in the figure below is closed at...
a.) Consider the circuit below. Assume that the capacitor is fully discharged prior to t=0. The switch is closed at t=0...
a.) Consider the circuit below. Assume that the capacitor is
fully discharged prior to t=0. The switch is closed at t=0
connecting the voltage source to the rest of the circuit. What is
the steady-state value of the voltage across the capacitor, VC(t),
after the switch is closed for a long time? Put your answer in the
box below, without the units (Volts).
b.) What is the time constant, ?, in ?s of the circuit in this
question.
c.) What...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the capacitor begins charging. R. -0 C. a) Show that: dt C c) Show that the following equation is how that the charging function for the capacitor is: Q(t) = VC(1-eyec) d) If V-20V, C-50nF, and R-100092, compute the time constant. What is the total charge and voltage across the capacitor at t-60μ
3. Use the circuit below to answer the following questions. The switch has been in the...
3. Use the circuit below to answer the following questions. The switch has been in the initial position shown for a long time. At t=0, the switch disconnects the 2 V source from the circuit with R2, L1, and Ci, and connects to Il and Ri. S1 t=0 R2 L1 1000 33mH 1A 31000 2v C1 +1 47uF Fill in the table below. Please remember to include units with your answers. Immediately before 1-0. Immediately after 1-0. Long after 1...
Problem 4 In the network shown below, the switch has been in the closed position for...
Problem 4 In the network shown below, the switch has been in the closed position for a long time. At t = 0, the switch is opened. Find an expression for V(t) for t>0, and find how much time is needed for the voltage across the capacitor to drop to 0.4094 V right after the opening of the switch t-0 0.3V 5uP
Problem 2 (35 points) In the circuit shown below, the switch is closed at t =...
Problem 2 (35 points) In the circuit shown below, the switch is closed at t = 0. t=0 L = 1 mH C1 = 5 uF C2 = 10 uf = l(s) Problem 2 The capacitor voltages at t = 0 are VC, (0) VC, (0) = = -50 V 30 V where the capacitor voltage polarities are indicated on the circuit drawing. Solve for the loop current i(t) using the Laplace transform method.
Question 5 16 pts In the circuit below, the switch was closed for a long time...
Question 5 16 pts In the circuit below, the switch was closed for a long time prior to t= 0. At t= 0, the switch is open - 202 e) The steady state voltage across the capacitor when the switch is open is. Enter your answer in Volts
The capacitors shown in the figure below are initially uncharged with the switch S1 open and switch S2 closed.
The capacitors shown in the figure below are initially uncharged
with the switch S1 open and switch S2 closed. After S1 andS2 have been closed for a long time, determine
the voltage across the 28.0 μF capacitor.
Consider the RC circuit in the figure below. The switch was at position a for a long period of time and it is suddenly...
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
In the figure below, we have a switch that opens or closes alternately for one second....
In the figure below, we have a switch that opens or closes alternately for one second. Assume that, before t = Os, the switch has been open for a long time. It closes at t = Os, opens again at t = 1s, closes at t = 2s and so on. Assuming V = 6 V, R = 3 MS2, and C = 2 u F, what is the voltage across the capacitor at t = 1.6 s? a sn...
Question 3 16 pts In the circuit below, the switch was closed for a long time...
Question 3 16 pts In the circuit below, the switch was closed for a long time prior to t t - 0, the switch is open 0. At 1 n (C)'L 5 4 2Ω 9 H c) Find the initial voltage across the capacitor Volts/sec Enter your answer in dt
a.) Consider the circuit below. Assume that the capacitor is
fully discharged prior to t=0. The switch is closed at t=0
connecting the voltage source to the rest of the circuit. What is
the steady-state value of the voltage across the capacitor, VC(t),
after the switch is closed for a long time? Put your answer in the
box below, without the units (Volts).
b.) What is the time constant, ?, in ?s of the circuit in this
question.
c.) What...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the capacitor begins charging. R. -0 C. a) Show that: dt C c) Show that the following equation is how that the charging function for the capacitor is: Q(t) = VC(1-eyec) d) If V-20V, C-50nF, and R-100092, compute the time constant. What is the total charge and voltage across the capacitor at t-60μ
3. Use the circuit below to answer the following questions. The switch has been in the initial position shown for a long time. At t=0, the switch disconnects the 2 V source from the circuit with R2, L1, and Ci, and connects to Il and Ri. S1 t=0 R2 L1 1000 33mH 1A 31000 2v C1 +1 47uF Fill in the table below. Please remember to include units with your answers. Immediately before 1-0. Immediately after 1-0. Long after 1...
Problem 4 In the network shown below, the switch has been in the closed position for a long time. At t = 0, the switch is opened. Find an expression for V(t) for t>0, and find how much time is needed for the voltage across the capacitor to drop to 0.4094 V right after the opening of the switch t-0 0.3V 5uP
Problem 2 (35 points) In the circuit shown below, the switch is closed at t = 0. t=0 L = 1 mH C1 = 5 uF C2 = 10 uf = l(s) Problem 2 The capacitor voltages at t = 0 are VC, (0) VC, (0) = = -50 V 30 V where the capacitor voltage polarities are indicated on the circuit drawing. Solve for the loop current i(t) using the Laplace transform method.
Question 5 16 pts In the circuit below, the switch was closed for a long time prior to t= 0. At t= 0, the switch is open - 202 e) The steady state voltage across the capacitor when the switch is open is. Enter your answer in Volts
The capacitors shown in the figure below are initially uncharged
with the switch S1 open and switch S2 closed. After S1 andS2 have been closed for a long time, determine
the voltage across the 28.0 μF capacitor.
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
In the figure below, we have a switch that opens or closes alternately for one second. Assume that, before t = Os, the switch has been open for a long time. It closes at t = Os, opens again at t = 1s, closes at t = 2s and so on. Assuming V = 6 V, R = 3 MS2, and C = 2 u F, what is the voltage across the capacitor at t = 1.6 s? a sn...
Question 3 16 pts In the circuit below, the switch was closed for a long time prior to t t - 0, the switch is open 0. At 1 n (C)'L 5 4 2Ω 9 H c) Find the initial voltage across the capacitor Volts/sec Enter your answer in dt
