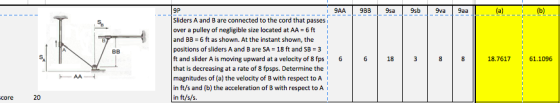

Sliders A and B are connected to the cord that passes over a pulley of negligible size located at AA 6 ft and BB 6 ft as shown. At the instant shown, the positions of sliders A and B are SA, 18 ft and SB 3 ft and slider A is moving upward at a velocity of 8 fps 6 6 that is decreasing at a rate of 8 fpsps. Determine the magnitudes of (a) the velocity of B with respect to A in ft/s and (b) the acceleration of B with respect to A in ft/s/s. 1838 8 18.7617 61.1096 core 20

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

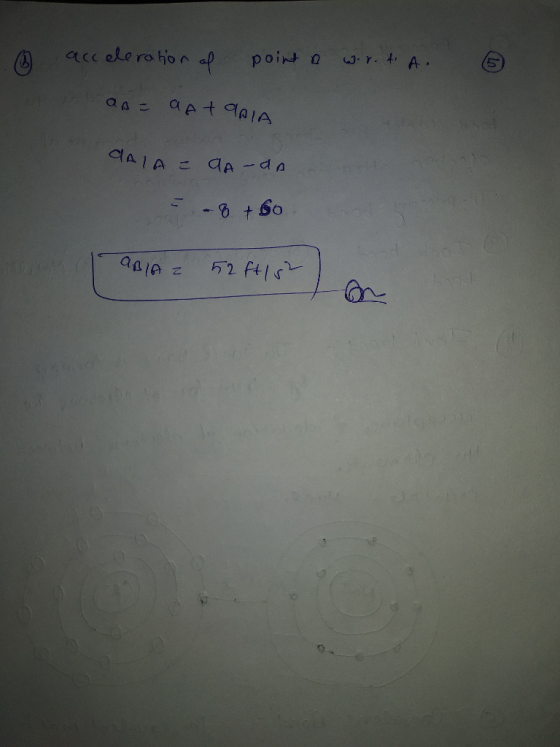

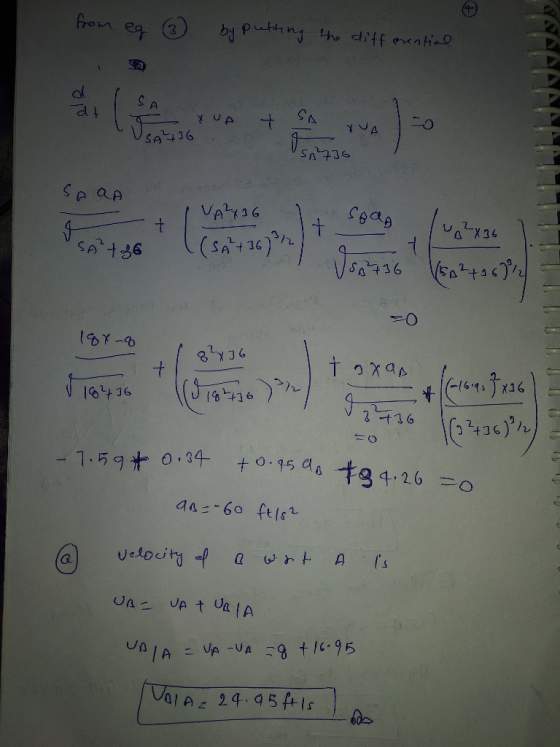

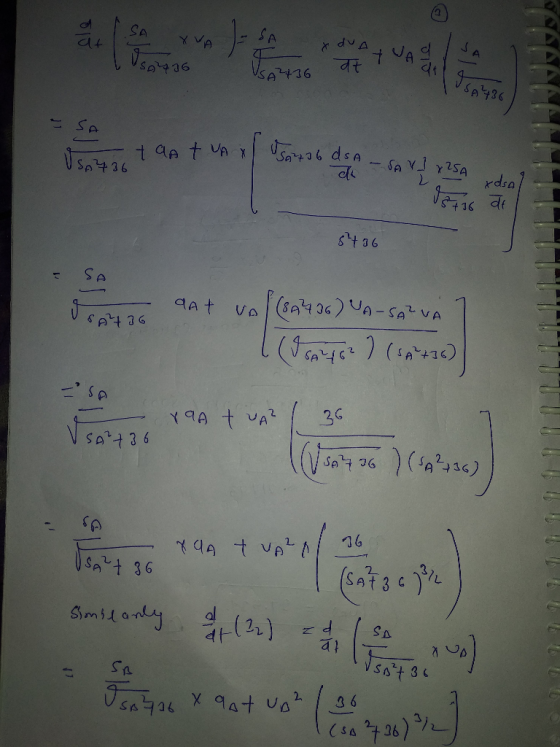

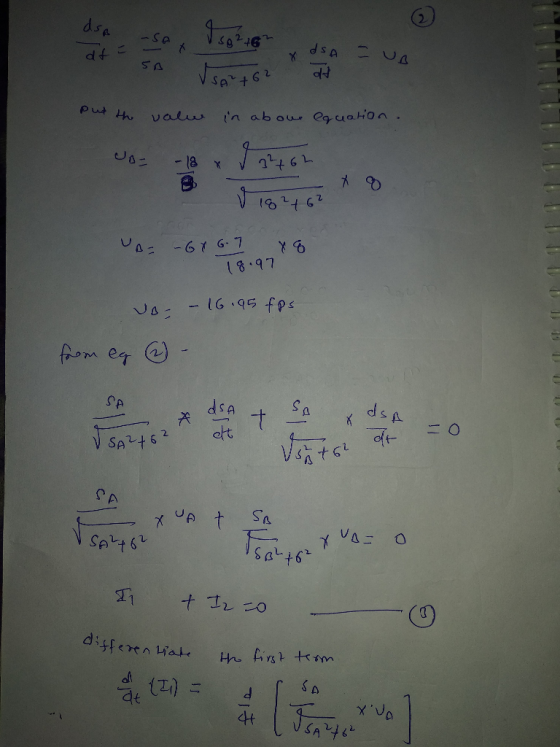

Answer #1

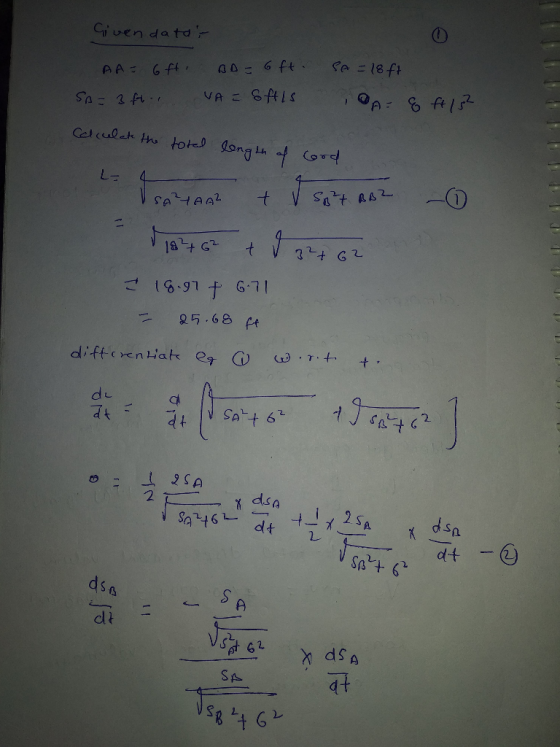

Given data でIG-91ナ6-71 d4+ 2 SA 2 d s dl t SA

0 0
Add a comment
Know the answer?
Add Answer to:
Sliders A and B are connected to the cord that passes over a pulley of negligible...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Two masses are connected by a cord that passes over a pulley as shown in the...

    Two masses are connected by a cord that passes over a pulley as shown in the figure. The pulley and cord have negligible mass and m1 (2.0 kg) moves on a horizontal surface without friction, m2 (2.0 kg) is suspended vertically. What is the ACCELERATION of m1? Question4 2/2 pts Two masses are connected by a cord that passes over a pulley as shown in the figure. The pulley and cord have negligible mass and mı (2.0 kg) moves on...

  • Two sliders connected by a rigid bar. Determine acceleration of slider B and force on the bar

    2. (Chapter 13: Use rectangular coordinates)The sliders A and B are connected by a light rigid bar of length l = 0.5 m and move with negligible friction in the horizontal slots shown (see Figure 2). For the position where xA = 0.4 m, the velocity of A is vA = 0.9 m/s to the right. At this instant(a) draw the free-body-diagrams sliders A and B,(b) determine the acceleration of the slider B, and(c) determine the force in the bar.

  • The sliders A and B are connected by a light rigid bar of length l =...

    The sliders A and B are connected by a light rigid bar of length l = 0.37 m and move with negligible friction in the slots, both of which lie in a horizontal plane. For the position where xA = 0.29 m, the velocity of A is vA = 0.84 m/s to the right. Determine the acceleration of each slider and the force in the bar at this instant. The acceleration of A is positive if to the right. The...

  • Two objects are connected to a cord, and the cord is hung over a pulley connected...

    Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below. m2 The masses of the objects are m1-18.0 kg and m2-10.0 kg, the mass of the pulley is M-5.00 kg, and the radius of the pulley is R = 0.100 m. Object m2 įs initially on the floor, and object m1 is initially 4.30 m above the floor when it is released from rest. The...

  • Two objects are connected to a cord, and the cord is hung over a pulley connected...

    Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below mg The masses of the objects are m 17.0 kg and m2 12.0 kg, the mass of the pulley is M 5.00 kg, and the radius of the pulley is R 0.300 m. Object m2 is initially on the floor, and object m, is initially 5.00 m above the floor when it is released from...

  • The small sliders A and B are connected by the rigid slender rod. If the velocity...

    The small sliders A and B are connected by the rigid slender rod. If the velocity of slider B is 1.58 m/s to the right and is constant over a certain interval of time, determine the speed of slider A when the system is in the position shown 2.51R 2.22 Answer: vA m/s

  • The figure shows two blocks connected by a cord (of negligible mass) that passes over a...

    The figure shows two blocks connected by a cord (of negligible mass) that passes over a frictionless pulley (also of negligible mass). The arrangement is known as Atwood's machine. Block 1 has mass m - 1.2 kg; block 2 has mass m2 = 2.7 kg. What are (a) the magnitude of the blocks'acceleration and (b) the tension in the cord? (a) Number Units (b) Number Units

  • The figure shows two blocks connected by a cord (of negligible mass) that passes over a...

    The figure shows two blocks connected by a cord (of negligible mass) that passes over a frictionless pulley (also of negligible mass). The arrangement is known as Atwood's machine. Block 1 has mass m2 = 1.00 kg; block 2 has mass m2 = 3.30 kg. What are (a) the magnitude of the blocks' acceleration and (b) the tension in the cord? IN (a) Number Units m/s2 (b) Number Units N

  • two equal masses are connected by a light cord passing over a pulley of negligible mass. at the...

    two equal masses are connected by a light cord passing over a pulley of negligible mass. at the moment the system is in motion, with the right hand block movingdownward at 1.2 m/s. what is the correct free body diagram?

  • A 3.4-kg sphere is suspended by a cord that passes over a 1.2-kg pulley of radius...

    A 3.4-kg sphere is suspended by a cord that passes over a 1.2-kg pulley of radius 3.4 cm. The cord is attached to a spring whose force constant is k = 86 N/m as in the figure below. Assume the pulley is a solid disk. An apparatus is shown with a wall extending upward from the left end of a table and a pulley mounted above the right edge of the table. A horizontal spring labeled k has its left...
