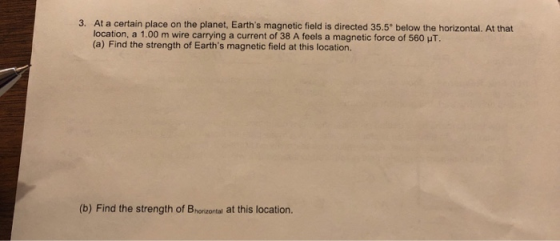

3. At a certain place on the planet, Earths magnetic field is directed 35.5° below the horizontal. At that location, a 1.00
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

F = BIL sino : magnetic field induction - 35. 50 Bisine 560x106 B- F = 560 N - 560 x 100N 9 = 38A L-im 38x1x sin (35.5) = 2.5

0 0
Add a comment
Know the answer?
Add Answer to:
3. At a certain place on the planet, Earth's magnetic field is directed 35.5° below the...
