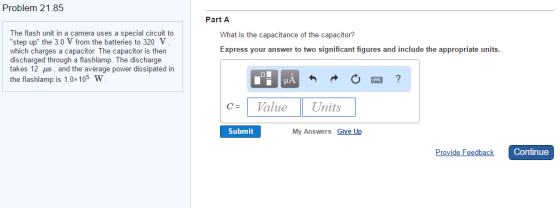

The flash unit in a camera uses a special circuit to "step up" the 3.0 V...

Question

Question

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

P = dE/dt

dE = P*dt

dE = 1 x 10^5 * 12 x 10^-6 = 12 J

dE = CV^2/2

C = 2dE/V^2

V = 320 V

C = 2.3 x 10^-4 F

Add a comment
