The RC charging circuit in a camera flash unit has a voltage source of 295 V...

Question

Question

The RC charging circuit in a camera flash unit has a voltage source of 295 V and a capacitance of 116 µF.

(a) Find its resistance R (in ohms) if the capacitor charges to 90.0% of its final value in 12.2 s.

Ω

(b) Find the average current (in A) delivered to the flash bulb if the capacitor discharges 90.0% of its full charge in 1.04 ms.

A

science physics

Answer 1

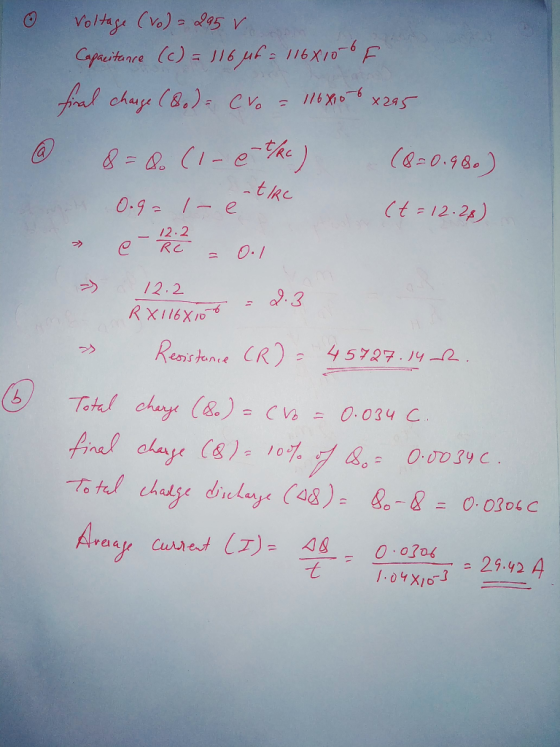

Answer #1

Answer 2
