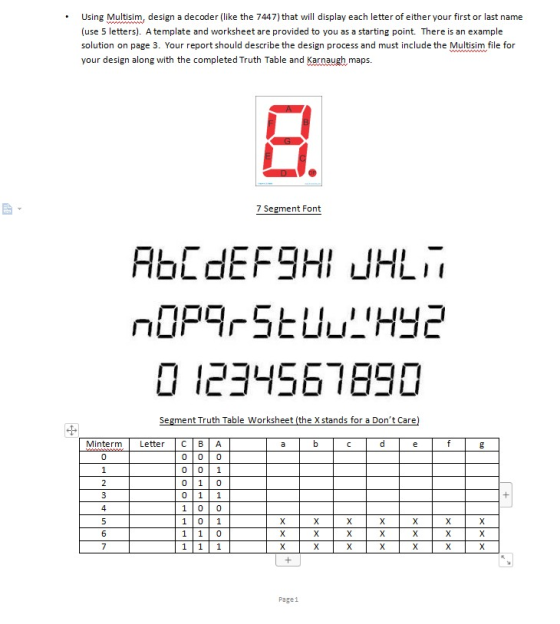

thanks for help. Using Multism, dsign a decoder (like the 7447) that will display each letter...
Design a 7 segment display decoder using a 16:1 multiplexer (no more than 7 chips). The output of the 7 segment display must be 0-F in hex. Please use Karnaugh-maps if necessary. Thank you kindly!
You will build a seven-segment display decoder, shown in Figure 3. The circuit has four input bits, D3:0 (representing a hexadecimal number between 0 and F), and produces seven output bits, Sa:g, that drive the seven segments to display the number. The 7-segment display we will use in this lab is a common cathode type, a segment of the display turns on when it is 1. The other type of 7-segment display is common anode, for which a segment turns...
Problem 4.0 (20 Points) Design the segment 'b' of the BCD to 7 segment decoder driver of the common cathode seven segment display. Your design should include the following: Hint th e invalid numbers can be used as don't cares Truth table K-Map Simplified Boolean expression Logic circuit implementation . .
Problem 4.0 (20 Points) Design the segment 'b' of the BCD to 7 segment decoder driver of the common cathode seven segment display. Your design should include the following:...
after completing the truth table, write equations for each output
segment. ( through Sa-Sg so 7 equations) using k-maps
next translate your equations into logic gates using
only ONE design for all the equations.
7-segment 4, display7 decoder S Figure 3.7-segment display decoder To design your seven-segment display decoder, you will first write the truth table specifying the output values for each input combination. We have started the truth table for you in Table 1. For example, when the input...
could use some help with this. please show work so that i can
understand how its done as well.
1. A BCD-to-seven-segment decoder is a combinational circuit that converts a decimal digit in BCD to an appropriate code for the selection of segments in an indicator used to display the decimal digit in a familiar form. The seven outputs of the decoder (a, b, c, d, e, f, g) select the corresponding segments in the display. Using a truth table...
Design a digital system that will count the number of switches activated and display that count in binary using LEDs. An LED that is illuminated represents a '1' and an LED that is off represents a '0'. ____ Interface 3 switches to your design _____ Interface 8 LEDs to your design _____ Show all circuit diagrams _____ Provide any boolean logic, truth tables, karnaugh maps I need help with the circuit diagrams and boolean logic, truth table, and K-map. Please...
A seven segment decoder is a digital circuit that
displays an input value 0 through 9 as a digital output in the
7-segment display. The behavior of this design can be modeled with
the schematic diagram below, where DCBA is the 4-bit input (D is
the most significant bit and A is the least significant bit) and
abcdefg is the 7-segment output.
2. (20 POINTS) A seven segment decoder is a digital circuit that displays an input value 0 through...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
Preparation (Pre-lab) Before coming to the first lab session, complete the following tasks: Generate a truth table showing inputs vs outputs for the following circuit blocks in Part I: Comparator, Circuit A, and Circuit B. o Use the truth tables to produce minimized SOP (sum of products) for the Comparator, Circuit A and Circuit B. Part I - Simple Binary to BCD Conversion Design Specifications You are to design a circuit that converts a four-bit binary number V[3..0] = V[3]...
Digital Logic Design
Need help with homework.
Also need to create Logisim circuit with results.
Thank you!
Your IDs gn project, spring semester Your name 19 Digital Logic Design. Mid-semester desi This is a synchronous counter design. Tables and Karnaugh maps are provided. Do this alone, do not consult with friends except for general structions guidance-I want to see your design. Design, Synchronous counter. (#2 of 3) (repeat). That is QdQcQbQa-0001 (one), 0010 (t Note: Qa is the I.s.b. Design...
