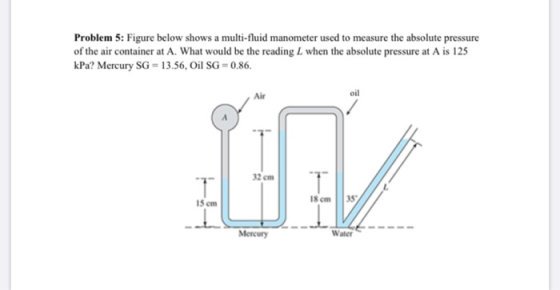

Problem 5: Figure below shows a multi-fluid manometer used to measure the absolute pressure of the...
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG...
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG- 13.56, Oil SG 0.86. 01 Air 32 cm 18 em 35 15 cm Fig. 2 Water Mercury
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L...
Determine the new differential reading along the inclined leg of the mercury manometer of the figure...
Determine the new differential reading along the inclined leg of
the mercury manometer of the figure below, if the pressure in pipe
A is decreased 25 kPa and the pressure in pipe B
remains unchanged. The fluid in A has a specific gravity
of 0.9 and the fluid in B is water.
Assume h1 = 40 mm, h2 = 20
mm, h3 = 32 mm.
Determine the new differential reading along the inclined leg of the mercury manometer of the...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure below where !-210 cm. A gage was used to measure the pressure at the center of tank A and the reading was 60 kPa. A barometer locates near the tanks reads 72 cm of mercury. Specific weight of water is 9.81 kN/m3 and specific gravity (SG) of mercury is 13.6. a) Find the gage pressure in the center of tank B. b) Find the...
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown...
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown below is at equilibrium. If pressure at point B remains the same while pressure of point A is decreased by 15 kPa, what would be the new final reading of L? SG = 0.9 Water A 100 mm 30° 80 mm 50 mm Mercury
Measurement of Pressure. An open U-tube manometer similar to Fig. 2.2-4a is being used to measure...
Measurement of Pressure. An open U-tube manometer similar to Fig. 2.2-4a is being used to measure the absolute pressure p, in a vessel containing air The pressure pb is atmospheric pressure, which is 754 mm Hg. The liquid in the manometer is water having a density of 1000 kg/m. Assume that the densityp is 1.30 kg/m and that the distance Z is very small. The reading R is 0.415 m. Calculate p, in psia and kPa. pb fluid B PB...
Pipe A contains gasoline(SG=0.70) , pipe B contains oil(SG=0.90), and the manometer fluid is mercury. Determine...
Pipe A contains gasoline(SG=0.70) , pipe B contains
oil(SG=0.90), and the manometer fluid is mercury. Determine the new
differential reading if the pressure in pipe A is decreased 25 kPa,
and the pressure in pipe B remains constant. The initial
differential reading is 0.30 m as shown. Use unit weight of water =
9810 N/m3
0.4 m Oil 0.3 m , Merc Gasoline?
Question 3: For the manometer-inverted manometer shown below, if all fluids are at 20°C and Ps...
Question 3: For the manometer-inverted manometer shown below, if all fluids are at 20°C and Ps - PA= 140 kPa, determine the height H in centimeters. Given the SG of mercury is 13.6. ogh Meriam red oil, SG=0.827 18 cm Water Mercury 35 cm 140 gg hw + 89 hm + gg hme leonia.) (rw) + egli sw)( (2 ) 9.9.1 .18)
A mercury manometer is used to measure the pressure difference in the two pipes shown in...
A mercury manometer is used to measure the pressure difference
in the two pipes shown in the figure. A type of oil (specific
weight 45.6 lb/ft3 ) is flowing in A and a different type of oil
(specific weight 56.0 lb/ft3 ) is flowing in B. An air pocket has
formed as shown. What is the pressure in A if the pressure in B is
18.3 psi?
Air bubble 3 in. 5 in. Fuel oil 18 in. SAE 30 oil...
Air bubble 5. A mercury manometer is used to measure the pressure difference in the two...
Air bubble 5. A mercury manometer is used to measure the pressure difference in the two pipelines of Fig. 5. Fuel oil is flowing in A and SAE 30 lube oil is flowing in B. An air pocket has become entrapped in the lube oil as indicated. Determine the pressure in pipe B if the pressure in A is 15.3 psi. Fuel oil 18 in SAE 30 oil Mercury Fig 5
3. Compute the SG of the liquid 'L' in the Figure below if the absolute pressure...
3. Compute the SG of the liquid 'L' in the Figure below if the absolute pressure at the bottom of the container is 300 kPa. (Atmospheric pressure 101.33 kPa; Density of oil- 800 kg/m) 1.15 m 2.20 2.75 m Liquid L 0.38 m 4. The Figure below shows a baffled tank containing cells of liquid La, air and a liquid L. Determine the readings of the three pressure gages Gi, G and Gi (p for liquid Li-1000 kg/ m, and...
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L when the absolute pressure at A is 125 kPa? Mercury SG- 13.56, Oil SG 0.86. 01 Air 32 cm 18 em 35 15 cm Fig. 2 Water Mercury
Problem 2: Fig. 2 shows a multi-fluid manometer used to measure the absolute pressure of the air container at A. What would be the reading L...
Determine the new differential reading along the inclined leg of
the mercury manometer of the figure below, if the pressure in pipe
A is decreased 25 kPa and the pressure in pipe B
remains unchanged. The fluid in A has a specific gravity
of 0.9 and the fluid in B is water.
Assume h1 = 40 mm, h2 = 20
mm, h3 = 32 mm.
Determine the new differential reading along the inclined leg of the mercury manometer of the...
Q3) An inclined manometer tube is connected to two closed tanks as shown in the figure below where !-210 cm. A gage was used to measure the pressure at the center of tank A and the reading was 60 kPa. A barometer locates near the tanks reads 72 cm of mercury. Specific weight of water is 9.81 kN/m3 and specific gravity (SG) of mercury is 13.6. a) Find the gage pressure in the center of tank B. b) Find the...
Fluid Statics --- The reading L= 5 0mm of an inclined 13. (12%) mercury manometer shown below is at equilibrium. If pressure at point B remains the same while pressure of point A is decreased by 15 kPa, what would be the new final reading of L? SG = 0.9 Water A 100 mm 30° 80 mm 50 mm Mercury
Measurement of Pressure. An open U-tube manometer similar to Fig. 2.2-4a is being used to measure the absolute pressure p, in a vessel containing air The pressure pb is atmospheric pressure, which is 754 mm Hg. The liquid in the manometer is water having a density of 1000 kg/m. Assume that the densityp is 1.30 kg/m and that the distance Z is very small. The reading R is 0.415 m. Calculate p, in psia and kPa. pb fluid B PB...
Pipe A contains gasoline(SG=0.70) , pipe B contains
oil(SG=0.90), and the manometer fluid is mercury. Determine the new
differential reading if the pressure in pipe A is decreased 25 kPa,
and the pressure in pipe B remains constant. The initial
differential reading is 0.30 m as shown. Use unit weight of water =
9810 N/m3
0.4 m Oil 0.3 m , Merc Gasoline?
Question 3: For the manometer-inverted manometer shown below, if all fluids are at 20°C and Ps - PA= 140 kPa, determine the height H in centimeters. Given the SG of mercury is 13.6. ogh Meriam red oil, SG=0.827 18 cm Water Mercury 35 cm 140 gg hw + 89 hm + gg hme leonia.) (rw) + egli sw)( (2 ) 9.9.1 .18)
A mercury manometer is used to measure the pressure difference
in the two pipes shown in the figure. A type of oil (specific
weight 45.6 lb/ft3 ) is flowing in A and a different type of oil
(specific weight 56.0 lb/ft3 ) is flowing in B. An air pocket has
formed as shown. What is the pressure in A if the pressure in B is
18.3 psi?
Air bubble 3 in. 5 in. Fuel oil 18 in. SAE 30 oil...
Air bubble 5. A mercury manometer is used to measure the pressure difference in the two pipelines of Fig. 5. Fuel oil is flowing in A and SAE 30 lube oil is flowing in B. An air pocket has become entrapped in the lube oil as indicated. Determine the pressure in pipe B if the pressure in A is 15.3 psi. Fuel oil 18 in SAE 30 oil Mercury Fig 5
3. Compute the SG of the liquid 'L' in the Figure below if the absolute pressure at the bottom of the container is 300 kPa. (Atmospheric pressure 101.33 kPa; Density of oil- 800 kg/m) 1.15 m 2.20 2.75 m Liquid L 0.38 m 4. The Figure below shows a baffled tank containing cells of liquid La, air and a liquid L. Determine the readings of the three pressure gages Gi, G and Gi (p for liquid Li-1000 kg/ m, and...
