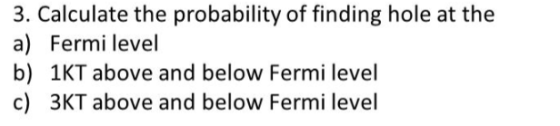

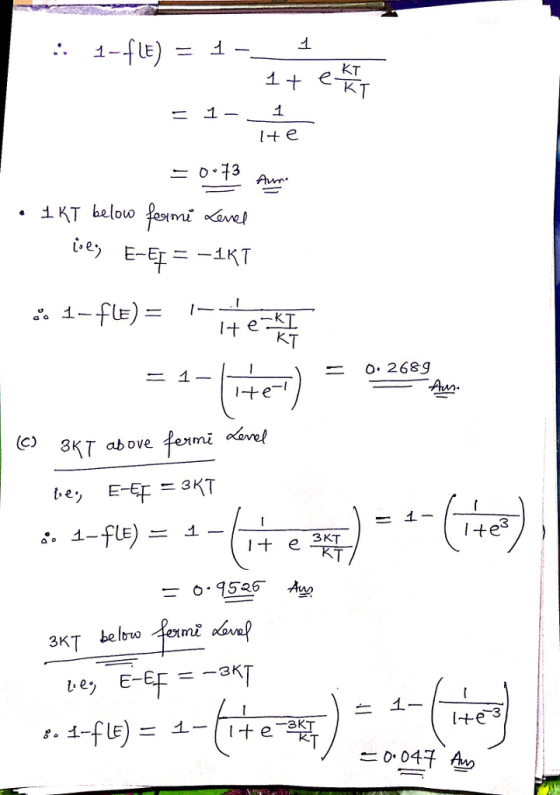

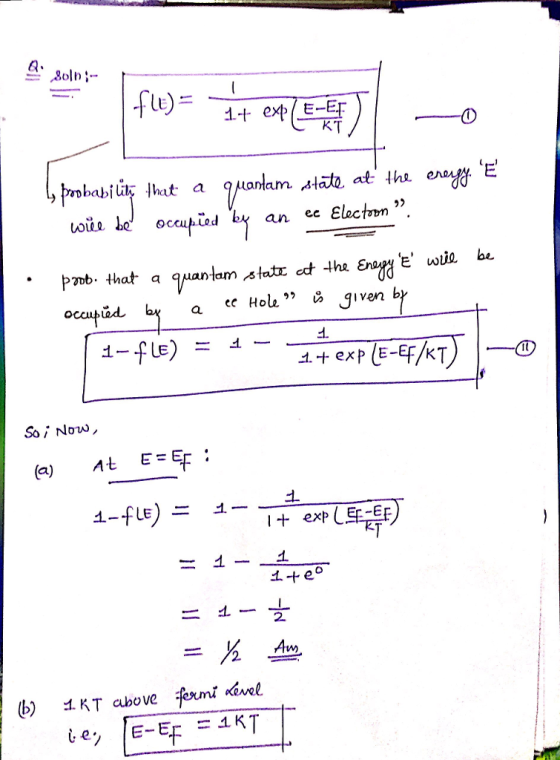

3. Calculate the probability of finding hole at the a) Fermi level b) 1KT above and...
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T =...
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b) P1. For the Boltzmann approximation to be valid for a semiconductor, the Fermi level must be...
(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the...
(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the probability of finding an electron at the bottom of the conduction band (E=Ec) for three different temperatures: 0K, 20C, 100C? (b) How are these probabilities related to the probabilities of finding a hole at E=Ev, which is the top of the valence band? (c) A sample of silicon is doped with 1016 cm-3 of arsenic and 3x1016 cm-3 of boron. Calculate n, p, and...
How far is the Fermi level above the intrinsic Fermi level in meV in a piece...
How far is the Fermi level above the intrinsic Fermi level in meV in a piece of silicon at 300°K that is doped with phosphorus at a concentration of 3.2 x 10^17/cm^3? Assume kT = 26meV.
Find the electron and hole concentrations and Fermi level in silicon at 300 K (a) for...
Find the electron and hole concentrations and Fermi level in silicon at 300 K (a) for 1 x 10^15 boron atoms/cm^3 and (b) for 3 x 10^16 boron atoms/cm^3 and 2/9 x 10^16 arsenic atoms/cm^3. The first two are acceptor concentrations, and the third one is an donor concentration.
(viii [2 Marks] Boltzmann approximations to the Fermi-Dirac distribution functions are only valid when: (a) The Fermi l...
(viii [2 Marks] Boltzmann approximations to the Fermi-Dirac distribution functions are only valid when: (a) The Fermi level is mid-gap (b) The electron and hole effective masses are equal; (c) The temperature is very low; (d) The Fermi level is thermally far removed from the band edges; (e) All of the above; (f) None of the above;
(viii [2 Marks] Boltzmann approximations to the Fermi-Dirac distribution functions are only valid when: (a) The Fermi level is mid-gap (b) The electron...
The electron concentration and hole concentration in intrinsic silicon are equal. Explain why the fermi level...
The electron concentration and hole concentration in intrinsic silicon are equal. Explain why the fermi level is not 'exactly' at the middle of the bandgap.
3. Calculate the required doping concentration of a Si to have the Fermi energy level at...
3. Calculate the required doping concentration of a Si to have the Fermi energy level at 0.1eV below the conduction band.
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300&#...
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b)
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level...
In a P-type semiconductor, the Fermi level lies 0.4 ev above the valence band at 300...
In a P-type semiconductor, the Fermi level lies 0.4 ev above the valence band at 300 0K. I)etermine the new position of the Fermi level (a) at 450 OK and (b) if the concentration of acceptor atoms is multiplied by a factor of 2. Assume kT = 0.03 eV.
1. Sketch the Fermi-dirac probability function at T= 0 K and T=300 K for function of...
1. Sketch the Fermi-dirac probability function at T= 0 K and T=300 K for function of E above and below EF. 2. Find (EP) 3. Describe Fermi Energy. What are the significances of Fermi energy level in semiconductor device physics? 4. Sktech Density of State Diagram, Fermi-dirac probability function diagram vs. E from there sketch n(E)vs.E and p(E)vs. E for N-type and P-type semiconductors, respectively. 5. A semiconductor has the following parameters: a. Eg = 1.12 eV, x = 4.05...
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b) P1. For the Boltzmann approximation to be valid for a semiconductor, the Fermi level must be...
(viii [2 Marks] Boltzmann approximations to the Fermi-Dirac distribution functions are only valid when: (a) The Fermi level is mid-gap (b) The electron and hole effective masses are equal; (c) The temperature is very low; (d) The Fermi level is thermally far removed from the band edges; (e) All of the above; (f) None of the above;
(viii [2 Marks] Boltzmann approximations to the Fermi-Dirac distribution functions are only valid when: (a) The Fermi level is mid-gap (b) The electron...
3. Calculate the required doping concentration of a Si to have the Fermi energy level at 0.1eV below the conduction band.
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b)
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level...
1. Sketch the Fermi-dirac probability function at T= 0 K and T=300 K for function of E above and below EF. 2. Find (EP) 3. Describe Fermi Energy. What are the significances of Fermi energy level in semiconductor device physics? 4. Sktech Density of State Diagram, Fermi-dirac probability function diagram vs. E from there sketch n(E)vs.E and p(E)vs. E for N-type and P-type semiconductors, respectively. 5. A semiconductor has the following parameters: a. Eg = 1.12 eV, x = 4.05...
