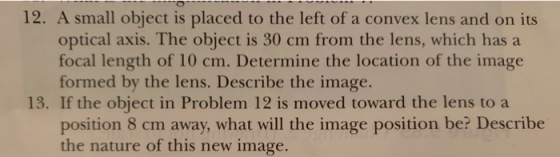

please answer number 13 12. A small object is placed to the left of a convex...

Question

Question

please answer number 13

science physics

Answer 1

Answer #1

is virtual becauce is negative, 13 lens equation. y = X - [60] =- 1 -1 4 is invested u= -8cm, f = loom. image image larger th

Answer 2

Similar Homework Help Questions

A small object is placed to the left of a convex lens and on its optical...

A small object is placed to the left of a convex lens and on its optical axis. The object is 35 cm from the lens, which has a focal length of 15 cm. Determine the location of the image formed by the lens. (Enter your answer in cm from the lens.) Describe the image. (Select all that apply.) real virtual upright inverted enlarged reduced on the left side of the lens on the right side of the lens
A small object is placed to the left of a convex lens and on its optical...

A small object is placed to the left of a convex lens and on its optical axis. The object is 46 cm from the lens, which has a focal length of 14 cm. Determine the location of the image formed by the lens. (Enter your answer in cm from the lens.) ____________cm from the lens? PART 2 Describe the image. (Select all that apply.) ___real ___virtual ___upright ___inverted ___enlarged ___reduced ____on the left side of the lens ___on the right...
The focal length of a diverging lens is negative. If f = −23 cm for a...

The focal length of a diverging lens is negative. If f = −23 cm for a particular diverging lens, where will the image be formed of an object located 32 cm to the left of the lens on the optical axis? ______cm to the left of the lens? What is the magnification of the image? b. A small object is placed to the left of a convex lens and on its optical axis. The object is 29 cm from the...

An object is placed 15.0 cm to the left of a convex (converging) lens of focal...

An object is placed 15.0 cm to the left of a convex (converging) lens of focal length 20.0 cm. The image of this object is located (Figure out if the image is real or virtual, it will help to locate the image] O 60.0 cm to the left of the lens. O 60.0 cm to the right of the lens. O 8.57 cm to the right of the lens. O 8.57 cm to the left of the lens. Question 8...
A) In the geometrical optics experiment, a student used a convex lens with 7 cm focal...

A) In the geometrical optics experiment, a student used a convex lens with 7 cm focal length to produce a large image of an object. The object was placed at a distance of 13 cm from the lens. Find the location of the formed image with respect to the lens (in cm). B) In the geometrical optics experiment, a student performed an experiment to measure the focal length of a convex lens. The object was placed at a distance of...
An object is placed 40 cm to the left of a convex lens that has a...

An object is placed 40 cm to the left of a convex lens that has a focal length f = +10 cm. a) Draw the ray diagram (3 rays) and find the image. b) What is the distance the image is from the lens? c) Is the image real or virtual? d) What is the magnification?

An object is placed 40 cm to the left of a convex lens that has a...

An object is placed 40 cm to the left of a convex lens that has a focal length f= +10 cm. a) Draw the ray diagram (3 rays) and find the image. b) What is the distance the image is from the lens? c) Is the image real or virtual? d) What is the magnification?
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...

QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs! (9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0? (10) An object 21 cm to...
Two converging lenses are placed 20 cm apart. An object is placed on the left of...

Two converging lenses are placed 20 cm apart. An object is placed on the left of the first lens, at a distance of 30 cm. The first lens has a focal point of 10 cm and the second lens has a focal length of 20 cm. a) Using a ray diagram determine the type of image formed by the first lens. b) Calculate the position of the image formed by the first lens. c) Find the magnification of the image...

An object is located to the left of a convex lens whose focal length is 38...

An object is located to the left of a convex lens whose focal length is 38 cm . The magnification produced by the lens is m1 = 3.3. To increase the magnification to 4.5, should the object be moved closer to the lens or farther away? Farther away can you please Calculate the distance through which the object should be moved???
