Homework Answers
![c) Change in internal energy - workdone - pdv & P (V₂_W) = 100x10² (0.51-0.2) - 310003 U = 318 ]](http://img.homeworklib.com/questions/8bf305f0-cba3-11eb-a733-0df9d4eee1c1.png?x-oss-process=image/resize,w_560)
Add Answer to:

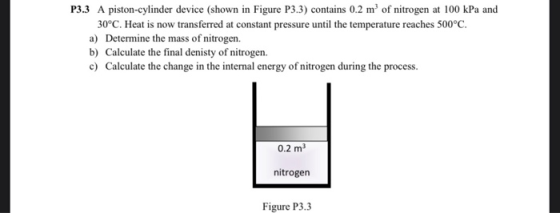

P3.3 A piston-cylinder device (shown in Figure P3.3) contains 0.2 m of nitrogen at 100 kPa...
QUESTION 24 A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree...
QUESTION 24
A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree C. The cross-sectional area of the piston is 0.1 m2. Heat is now transferred to the water, causing part of it to evaporate and expand. When the volume reaches 0.2 m3 the piston reaches a linear spring whose spring constant is 100 kN/m. More heat is transferred to the water until the piston rises 20 cm more. Determine (a) the final pressure and temperature...
A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air...
A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air is now compressed slowly according to the relation P Vk = constant, where k = 1.4, until it reaches a final temperature of 77°C. Sketch the P-V diagram of the process with respect to the relevant constant temperature lines, and indicate the work done on this diagram. Using the basic definition of boundary work done determine the boundary work done during the process [-7.18...
A piston cylinder device contains 5 kg nitrogen. The pressure inside the system is 100 kPa, and...
A piston cylinder device contains 5 kg nitrogen. The pressure inside the system is 100 kPa, and the temperature is 17oC. The relationship between pressure and volume is PV3 = C. If a process results in a volume reduction of 2x, calculate the work and heat transfer occurring during the process.
A piston cylinder device initially contains 1.2kg of saturated liquid water at 220oC. Now, heat is...
A piston cylinder device initially contains 1.2kg of saturated liquid water at 220oC. Now, heat is transferred to the water until the volume quadruples and the cylinder contains saturated vapor only. Determine (a) the final volume of the tank, (b) the final temperature (c) the final pressure, and (d) the change in internal energy of the tank. To check your work, enter the final pressure in kPa in the box below. Also, sketch this process on a T-v diagram.
A piston–cylinder device initially contains air at 150 kPa and 27 °C. In this state, the...
A piston–cylinder device initially contains air at 150 kPa and 27 °C. In this state, the piston is resting on a pair of stops, and the enclosed volume is 400 litres. The mass of the piston is such that a 200 kPa pressure is required to move it. The air is now heated until its volume has doubled. Sketch the process on a P-V diagram and determine (a) the mass of air and the final temperature, (b) the work done...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this...
A piston–cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.5 m3. Use the data from the steam tables. a) Determine the final temperature. b) Determine the work done during this process. c)...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat is transferred to the water until the cylinder contains saturated vapor only. Determine water m = 3 kg p = 500 kPa a) The initial and final volume of the cylinder, b) The boundary work of the piston, and c) The heat added to the system
The following problems summarize this section: Problem 3.4 - A frictionless piston-cylinder device contains 0.2 kg...
The following problems summarize this section: Problem 3.4 - A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air is now compressed slowly according to the relation P VK = constant, where k = 1.4. until it reaches a final temperature of 77°C. . a) Sketch the P-V diagram of the process with respect to the relevant constant temperature lines, and indicate the work done on this diagram. • b) Using the basic definition...
A cylinder fitted with piston contains 0.2 kg of N2 at 100 kPa and 30°C. The...
A cylinder fitted with piston contains 0.2 kg of N2 at 100 kPa and 30°C. The piston is moved compressing N2 until the pressure becomes 1 MPa and temperature becomes 150°C. The work done during the process is 20 kJ. Determine the heat transferred from N2 to the surroundings. Take Cv = 0.75 kJ/kg K for N2.
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
QUESTION 24
A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree C. The cross-sectional area of the piston is 0.1 m2. Heat is now transferred to the water, causing part of it to evaporate and expand. When the volume reaches 0.2 m3 the piston reaches a linear spring whose spring constant is 100 kN/m. More heat is transferred to the water until the piston rises 20 cm more. Determine (a) the final pressure and temperature...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat is transferred to the water until the cylinder contains saturated vapor only. Determine water m = 3 kg p = 500 kPa a) The initial and final volume of the cylinder, b) The boundary work of the piston, and c) The heat added to the system
The following problems summarize this section: Problem 3.4 - A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air is now compressed slowly according to the relation P VK = constant, where k = 1.4. until it reaches a final temperature of 77°C. . a) Sketch the P-V diagram of the process with respect to the relevant constant temperature lines, and indicate the work done on this diagram. • b) Using the basic definition...
A spring loaded piston-cylinder device with a cross sectional area of 0.2 m2 contains 0.6 kg of air, as shown in the figure. The air initially at 100 kPa and 20°C, is heated to 450 kPa at which the piston begins to move. The process continues until the final volume is 12 times the initial volume. Calculate (a) the final temperature in kb) the work done in kJ. (the total heat transfer in this process Use the following properties for...
