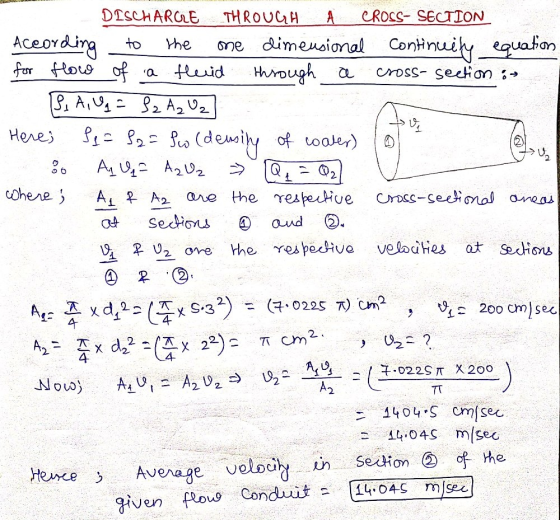

Water flows in the converging section of the figure. The diameter of section 1 is 5.3 cm, while that in section is 20.0 mm. The water's velocity in section 1 is 2.0 m/s. Determine the average velocity in section 2 in m/s.
Homework Answers
Add Answer to:
Water flows in the converging section of the figure. The
diameter of section 1 is 5.3...
1. Water (at 70 o C) flows with a velocity of 1 m/s in a 2...
1. Water (at 70 o C) flows with a velocity of 1 m/s in a 2 cm diameter pipe. The pipe wall temperature is at 100 o C. (a) What is the heat transfer from the pipe wall to the fluid? (b) Determine the critical velocity at which the flow would be characterized as laminar and for this flow velocity calculate the heat transfer (c) Assume the diameter of the pipe is doubled while all other conditions remain the same....
1. Water is flowing in a pipe as shown in the figure. The diameter of the...
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
3. Water flows at a uniform velocity of 1 em/s in a circular channel of diameter...
3. Water flows at a uniform velocity of 1 em/s in a circular channel of diameter 2 cm and length 2 m. A uniform heat flux of 10 W/m2 is supplied at the surface. Assume laminar flow and developed flow and temperature. (a) Calculate the variation of the mixing cup temperature with distance and the Nusselt number. (b) If the mixing cup temperature at the inlet is 22 oC, calculate the mixing cup and wall temperatures at the outlet? (e)...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter of 150 mm, at an average velocity of 3.0 m/s and gauge pressure of 300 kPa. The pipe is laid in the horizontal plane as shown in figure below. The magnitude of the resultant (horizontal) force required to hold the bend in place is: a 5.46 kN b.7.72 kN Oc 10.92 kN d.5.15 kN . None of the other answers QUESTION 2 A 25.0...
2. Blood flows through a tapered vessel at 2 l/min, as shown in Figure 2. Assume...
2. Blood flows through a tapered vessel at 2 l/min, as shown in Figure 2. Assume the flow is inviscid and steady, density is 1 g/cm, and gravity is negligible. Points 1 and 2 are 7 cm apart and the diameter changes linearly with axial position, x. Let x = 0 at point 1. a. Determine V2. Hint: you may assume that the velocity does not vary with radial position because the change in vessel diameter is gradual. Likewise, you...
3. Water flows radially toward the drain in a sink, as shown in the Figure. At...
3. Water flows radially toward the drain in a sink, as shown in the Figure. At a radius of 50 mm, the velocity of the water is uniform at 120 mm/s, and the water depth is 15 mm. Determine the average velocity of the water in the 30 mm diameter drain pipe. 50 mm R ↑15 mm Drainpipe Plan view Side view
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
I. Water flows steadily at 90 gal/min through a 2" diameter pipe as shown in the figure below. Th...
I. Water flows steadily at 90 gal/min through a 2" diameter pipe as shown in the figure below. The pipe extends 13 inches from the wall (x-direction), the turns 90° to the right (out of the page in the -y direction) for 24 inches, and then turns 90° down (-z direction) for 9.5 inches. Horizontal section of pipe is 24 in 13 in 9.5 in Pipe supported by wall Q = 90 gal/min A. Compute all three reaction forces (R,...
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1....
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1.0 m through a sudden expansion K, Note: For sudden expansion: Assess the pressure rise across this expansion. i. (9 marks) Explain how there can be a pressure rise across the expansion when i there is an energy loss (K, # 0) (2 marks) D2-1.0m Di-0.50 m Q= 15 m/s (1) (2) Figure 6:...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to a...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
3. Water flows at a uniform velocity of 1 em/s in a circular channel of diameter 2 cm and length 2 m. A uniform heat flux of 10 W/m2 is supplied at the surface. Assume laminar flow and developed flow and temperature. (a) Calculate the variation of the mixing cup temperature with distance and the Nusselt number. (b) If the mixing cup temperature at the inlet is 22 oC, calculate the mixing cup and wall temperatures at the outlet? (e)...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter of 150 mm, at an average velocity of 3.0 m/s and gauge pressure of 300 kPa. The pipe is laid in the horizontal plane as shown in figure below. The magnitude of the resultant (horizontal) force required to hold the bend in place is: a 5.46 kN b.7.72 kN Oc 10.92 kN d.5.15 kN . None of the other answers QUESTION 2 A 25.0...
2. Blood flows through a tapered vessel at 2 l/min, as shown in Figure 2. Assume the flow is inviscid and steady, density is 1 g/cm, and gravity is negligible. Points 1 and 2 are 7 cm apart and the diameter changes linearly with axial position, x. Let x = 0 at point 1. a. Determine V2. Hint: you may assume that the velocity does not vary with radial position because the change in vessel diameter is gradual. Likewise, you...
3. Water flows radially toward the drain in a sink, as shown in the Figure. At a radius of 50 mm, the velocity of the water is uniform at 120 mm/s, and the water depth is 15 mm. Determine the average velocity of the water in the 30 mm diameter drain pipe. 50 mm R ↑15 mm Drainpipe Plan view Side view
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
I. Water flows steadily at 90 gal/min through a 2" diameter pipe as shown in the figure below. The pipe extends 13 inches from the wall (x-direction), the turns 90° to the right (out of the page in the -y direction) for 24 inches, and then turns 90° down (-z direction) for 9.5 inches. Horizontal section of pipe is 24 in 13 in 9.5 in Pipe supported by wall Q = 90 gal/min A. Compute all three reaction forces (R,...
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1.0 m through a sudden expansion K, Note: For sudden expansion: Assess the pressure rise across this expansion. i. (9 marks) Explain how there can be a pressure rise across the expansion when i there is an energy loss (K, # 0) (2 marks) D2-1.0m Di-0.50 m Q= 15 m/s (1) (2) Figure 6:...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
