![1. [3 points] What is the minimum bandwidth for transmitting data at a rate of 33.6 Kbps with r=0.5? If a 100% roll-off chara](http://img.homeworklib.com/questions/f2032cb0-edd2-11eb-b92a-33b4793148ad.png?x-oss-process=image/resize,w_560)
Homework Answers
Minimum bandwidth is nothing but it is equals to the Nyquist bandwidth.
Minimum Bandwidth can be written as:
(BW) min = Rate/2
= 33.6/2
B = 16.8KHz
Case 1 : r = 0.5
Bandwidth = B(1+ α ) ; where α is roll-off factor
= 16.8(1+0.5)
= 25.2 KHz
Case 2: r = 1 i.e,100%
Bandwidth = B(1+ α ) ; where α is roll-off factor
= 16.8(1+1)
= 33.6 KHz
Add Answer to:
1. [3 points] What is the minimum bandwidth for transmitting data at a rate of 33.6...
If a 6 Mbps LTE data rate on the downlink is desired, what would the minimum...
If a 6 Mbps LTE data rate on the downlink is desired, what would the minimum bandwidth be and why, if BPSK modulation is being used and the entire bandwidth is able to be allocated to a single user if needed? Recall that LTE has 1.4, 3, 5, 10, 15, and 20 MHz BW capabilities 1.
Question 6 [8 points] A system transmitting synchronous frames operates at a bit rate of 56...
Question 6 [8 points] A system transmitting synchronous frames operates at a bit rate of 56 kbps. The propagation delay is 19ms. Data is transmitted using a size of frame of 2080 bits. A flow control system using sliding windows is necessary. Determine the minimum size of the window for optimal throughput.

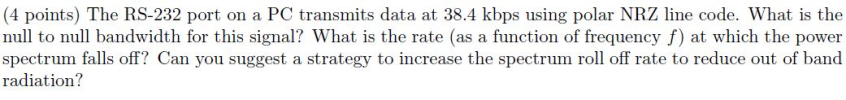

(4 points) The RS-232 port on a PC transmits data at 38.4 kbps using polar NRZ...
