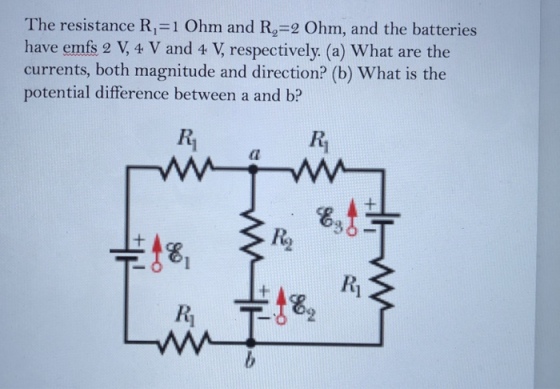

The resistance R,-1 Ohm and R,-2 Ohm, and the batteries have emfs 2 V, 4 V...

Question

Question

science physics

Answer 1

Similar Homework Help Questions

Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V...

Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V and Ex = 12.0V and the resistors have values of Ri = 272, R = 64, and Rs = 41 22. Part A Determine the magnitudes of the currents in each resistor shown in the figure. Ignore inte resistance of the batteries Express your answers using two significant figures separated by commas, Figure AXO O 2 ? 11, 12, 13 - Submit Previous Answers...
In the figure the ideal batteries have emfs E_1 = 5.57 V and E_2 = 10.9...

In the figure the ideal batteries have emfs E_1 = 5.57 V and E_2 = 10.9 V, the resistances are each 2.23 ohm, and the potential is defined to be zero at the grounded point of the circuit. What are potentials (a) V1 and (b)V2 at the indicated points? Number Units Number Units
In the figure the ideal batteries have emfs 81-20.7 ?, 82-11.8 ?, 83-5.06 V, and 84-525...

In the figure the ideal batteries have emfs 81-20.7 ?, 82-11.8 ?, 83-5.06 V, and 84-525 V, and the resistances are each 201 ?, what are the (a) magnitude and (b) direction of current i1 and the (c) magnitude and (d) direction of current i2? (This can be answered with only mental calculation.) (e) At what rate is energy being transferred in battery 4, and (f) is the energy being supplied or absorbed by the battery? (a) Number Units (c)...

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω.

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω. Determine the magnitudes of the currents in each resistor shown in the figure. Ignore internal resistance of the batteries. Determine the directions of the currents in each resistor. Ignore internal resistance of the batteries.
In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50...

In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50 V and the resistances are R1 = 3.0 Ω and R2 = 2.0 Ω. If the potential at P is defined to be 140 V, what is the potential at Q? R 181= 8,12 R2 P
"2 In Fig. 27-26, the ideal batteries Q have emfs &,-150 V and -50 V and...

"2 In Fig. 27-26, the ideal batteries Q have emfs &,-150 V and -50 V and the resistances are R1 = 3.0 Ω and R2-2.0 Ω. If the potential at P is 100 V, + what is it at 0

In Figure (a), both batteries have emf ε = 1.70 V and the external resistance R...

In Figure (a), both batteries have emf ε = 1.70 V and the external resistance R is a variable resistor. Figure (b) gives the electric potentials V between the terminals of each battery as functions of R: Curve 1 corresponds to battery 1, and curve 2 corresponds to battery 2. The horizontal scale is set by Rs = 0.200 Ω. What is the internal resistance of (a) battery 1 and (b) battery 2? 0.85 R V(V) 0 R -0.510 R...
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R_1 =...

In the circuit in the figure below, the batteries have negligible internal resistance. (Take R_1 = 2.40 Ohm, R_2 = 4.35 Ohm, and R_3 = 5.80 Ohm. Find the magnitude of the current in each resistor. Find the magnitude of the potential difference between points a and b. Find the power supplied by each battery. left battery right battery
in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25...

in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25 Ω. R2-4.50 Ω, and R.-6.80 .) 120 V R, 12.0 V (a) Find the magnitude of the current in each resistor 12.25Ω = 14.son = 6.80n = (b) Find the magnitude of the potential difference between points a and b (c) Find the power supplied by each battery. left battery right battery eBook

In Figure (a), both batteries have emf ε = 1.30 V and the external resistance R...

In Figure (a), both batteries have emf ε = 1.30 V and the external resistance R is a variable resistor. Figure (b) gives the electric potentials V between the terminals of each battery as functions of R: Curve 1 corresponds to battery 1, and curve 2 corresponds to battery 2. The horizontal scale is set by Rs = 0.300 Ω. What is the internal resistance of (a) battery 1 and (b) battery 2? 0.65 R 0 R 0.390 R (22)...
