A curve on a road has a radius of curvature of 500.0m and is banked at...
A curve on a road has a radius of curvature of 500.0m and is banked at an angle of 10.00 degrees, if a 1700.0Kg car is traveling at a speed of 27.0m/s around the curve, what is the magnitude and direction of the static frictional force needed to keep the car around the curve at this speed?
Homework Answers

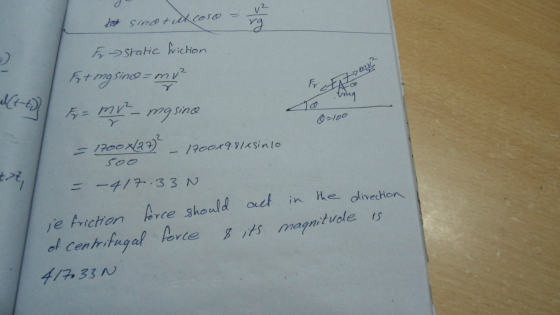

frictional force = m*v^2/R-mg sin10..
= m*v^2/R - mg sin 10 = [1700*(27)^2]/500 -
(1700*9.8*sin10)...=414.4 N alog center of the curved
road
Add Answer to:
A curve on a road has a radius of curvature of 500.0m and is
banked at...
A car rounds a curve that is banked inward. The radius of curvature of the road...
A car rounds a curve that is banked inward. The radius of curvature
of the road is R = 140 m, the banking angle is θ = 26°, and the
coefficient of static friction is μs = 0.39. Find the minimum speed
that the car can have without slipping.
A car rounds a curve that is banked inward. The radius of curvature of the road is R 140 m, the banking angle is 26e, and the coefficient of static minimum...
A car rounds a curve that is banked inward. The radius of curvature of the road...
A car rounds a curve that is banked inward. The radius of curvature of the road is R = 152 m, the banking angle is θ = 32°, and the coefficient of static friction is μs = 0.23. Find the minimum speed that the car can have without slipping.
A car rounds a curve that is banked inward. The radius of curvature of the road...
A car rounds a curve that is banked inward. The radius of curvature of the road is R = 142 m, the banking angle is θ = 30°, and the coefficient of static friction is μs = 0.32. Find the minimum speed that the car can have without slipping. I got 36.5196 m/s, which isn't correct.
Consider the motion of a car around a banked curve. The angle of the bank with...
Consider the motion of a car around a banked curve. The angle of the bank with respect to the horizontal is 15.0 degrees, the speed of the car is 20.0 m/s, the radius of curvature for the curve is 30.0 m, and the coefficient of static friction is 0.500. The mass of the car is 1000 kg. a) What is the frictional force? b) Is there a speed at which the frictional force would be zero? If so, what is...
A car is driving around a banked curve, with the road surface at an angle of...
A car is driving around a banked curve, with the road surface at an angle of 10.0º. If the radius of curvature of the road is 30.0 m and the coefficient of static friction between the tires of the car and the road is 0.65, what is the maximum speed (in km/hr) the car can go without skidding?
A highway curve has a radius of 130 m. At what angle should the road be...
A highway curve has a radius of 130 m. At what angle should the road be banked so that a car traveling at 25.8 m/s has no tendency to skid sideways on the road? [Hint: No tendency to skid means the frictional force is zero.] °
A curve with a 130 m radius on a level road is banked at the correct...
A curve with a 130 m radius on a level road is banked at the correct angle for a speed of 20 m/s. If an automobile rounds this curve at 30 m/s, what is the minimum coefficient of static friction between tires and road needed to prevent skidding?
A highway curve of radius 68.0 m is banked at 21.4 degree so that a car...
A highway curve of radius 68.0 m is banked at 21.4 degree so that a car traveling at 26.4 m/s (95 km/hr) will utilize both banking and friction to keep it on the curve. Determine the minimum coefficient of static friction between the tires and the road to keep the car on the road at this speed on this curve.
A car goes around a curve on a road that is banked at an angle of...
A car goes around a curve on a road that is banked at an angle of 33.5 degree. Even though the road is slick, the car will stay on the road without any friction between its tires and the road when its speed is 23.0 m/s. Part A What is the radius of the curve?
351 kg race car is rounding a curve in the road which is banked at an...
351 kg race car is rounding a curve in the road which is banked at an angle of 13.2 degrees from the horizontal. Assume that there has just been a massive snowfall and the road’s surface is frictionless. What must the radius of the curve be if the car is travelling at a speed 12.1 m/s and yet stays on the road?
A car rounds a curve that is banked inward. The radius of curvature
of the road is R = 140 m, the banking angle is θ = 26°, and the
coefficient of static friction is μs = 0.39. Find the minimum speed
that the car can have without slipping.
A car rounds a curve that is banked inward. The radius of curvature of the road is R 140 m, the banking angle is 26e, and the coefficient of static minimum...
A highway curve of radius 68.0 m is banked at 21.4 degree so that a car traveling at 26.4 m/s (95 km/hr) will utilize both banking and friction to keep it on the curve. Determine the minimum coefficient of static friction between the tires and the road to keep the car on the road at this speed on this curve.
A car goes around a curve on a road that is banked at an angle of 33.5 degree. Even though the road is slick, the car will stay on the road without any friction between its tires and the road when its speed is 23.0 m/s. Part A What is the radius of the curve?
