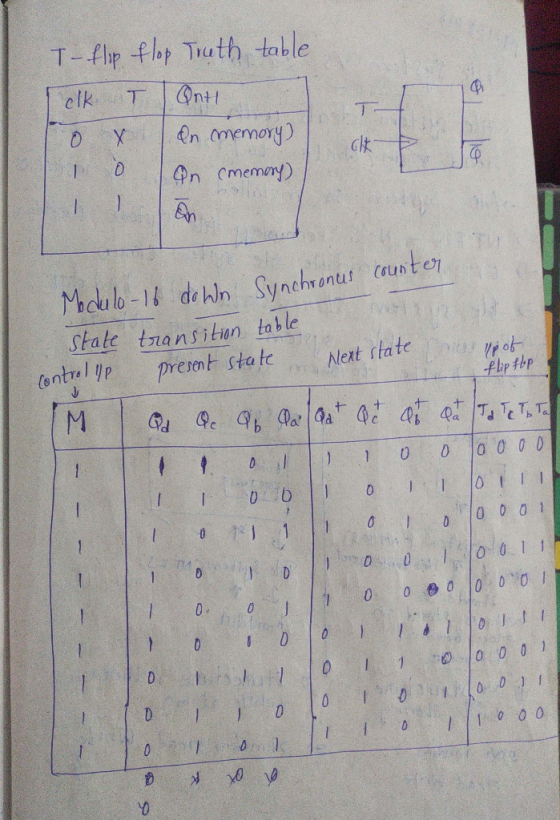

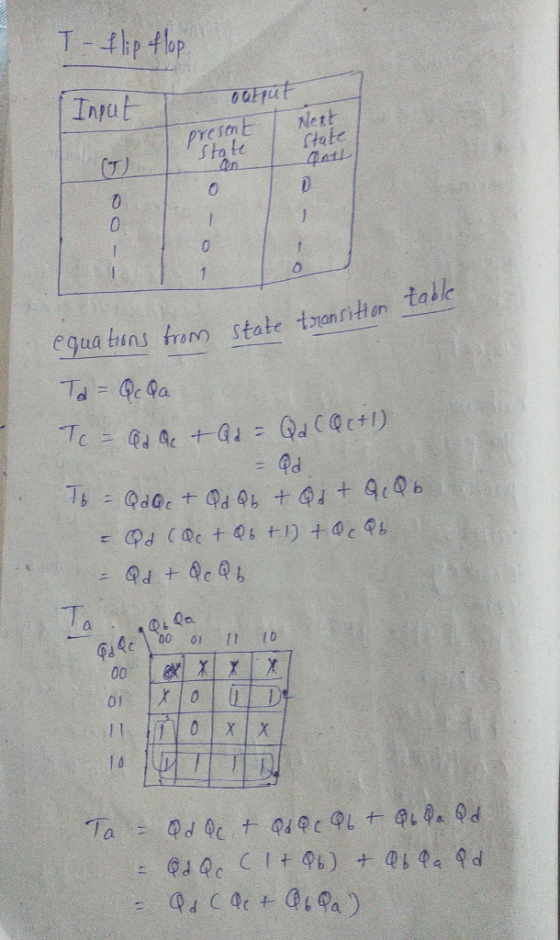

Design a 13-to-5 clocked synchronous counter using a Modulo-16 Up/Down Binary Counter. Show the...
[41 140 points En Reset Clock Analyze the clocked synchronous Modulo-8 Binary Counter [zyx] shown. The counter is initially reset at startup. Show the characteristic and excitation equations of t...
[41 140 points En Reset Clock Analyze the clocked synchronous Modulo-8 Binary Counter [zyx] shown. The counter is initially reset at startup. Show the characteristic and excitation equations of the Enabled T Flip-Flops, as well the state-transition table. Draw the state diagram of the counter.
[41 140 points En Reset Clock Analyze the clocked synchronous Modulo-8 Binary Counter [zyx] shown. The counter is initially reset at startup. Show the characteristic and excitation equations of the Enabled T Flip-Flops, as well...
Design a clocked synchronous counter with output sequence:
Design a clocked synchronous counter with output sequence: 1, 3, 5,7, 9,11, 13, 15, 14, 12, 10,8, 6,4, 2, 0, 1,.. using Enabled D Flip-Flops. Show the characteristic and excitation equations of the Flip-Flops, as well as the state-transition table and the logic diagram of the counter.
Design a modulo-11 up/down counter using a regular modulo-16 counter and any combinational logic. The modulo-11...
Design a modulo-11 up/down counter using a regular modulo-16
counter and any combinational logic. The modulo-11 up/down counter
has four modes; count up by 1, count up by 2, count down by 1, and
no count. A formal description of the modulo-11 up/down counter is
shown below.
Inputs: ctrL0, ctrl-1 є {0, 1} State/Output:s (0,1, 10) The state transition function is defined as: s(t) if ctrl-0-0 and ctrl-1 = 0 (s(t)+ 1) mod 11 ifctl_0-0 and ctrl 1-1 s(t+1(s(t)+2) mod1...
Please show process and I will rate faster!!! 2. Design a two-bit up/down binary counter using...
Please show process and I will rate faster!!!
2. Design a two-bit up/down binary counter using T-fip-flops that can count in binary from 0 to 3. When the control input x is 0, the circuit counts up and when it is 1, the circuit counts down. (a) Obtain the state table of the two-bit counter (P. S., Input, N. S., Output). (b) Obtain the state diagram. (c) Draw the logic diagram of the circuit.
Design an up/down counter with four states (0, 1, 2, 3) using clocked J-K flip-flops. A...
Design an up/down counter with four states (0, 1, 2, 3) using clocked J-K flip-flops. A control signal x is used as follows: When x 0 the machine counts forward (up), when x , backward (down). Simulate using MultiSim and attach a simulation printout X Please address the following in your report 1. State Table 2. State Diagram 3. Flip-Flop Excitation Tables 4 K-Map Simplification and resulting diagram 5. Multisim Simulation 6. Conclusion/Discussion 7. References
Design an up/down counter with...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
ECEN3233 Digital Logic Design Name 3. Use a synchronous 4-bit binary up counter (with load and...
ECEN3233 Digital Logic Design Name 3. Use a synchronous 4-bit binary up counter (with load and enable) to design a modulo-8 counter (also called offset counter) that begins with 0100, which means the counting sequence is: 0100-0101-0110->0111->1000->1001->1010->1011->0100-0101... Please complete your design using the figure on the next page. Use some logic gates if you need. (10 points) Enable Load Clock
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7.
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7. When the control input x is 0, the circuit counts down, and when it is 1, the circuit counts up. (a) Obtain the state table of the two-bit counter. (b) Obtain the state diagram (c) Draw the logic diagram of the circuit.
Design the following types of counters using only D flip flops: (A) synchronous binary up counter...
Design the following types of counters using only D flip flops: (A) synchronous binary up counter (B)synchronous binary down counter (C)synchronous binary up-down counter
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gat...
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
[41 140 points En Reset Clock Analyze the clocked synchronous Modulo-8 Binary Counter [zyx] shown. The counter is initially reset at startup. Show the characteristic and excitation equations of the Enabled T Flip-Flops, as well the state-transition table. Draw the state diagram of the counter.
[41 140 points En Reset Clock Analyze the clocked synchronous Modulo-8 Binary Counter [zyx] shown. The counter is initially reset at startup. Show the characteristic and excitation equations of the Enabled T Flip-Flops, as well...
Design a modulo-11 up/down counter using a regular modulo-16
counter and any combinational logic. The modulo-11 up/down counter
has four modes; count up by 1, count up by 2, count down by 1, and
no count. A formal description of the modulo-11 up/down counter is
shown below.
Inputs: ctrL0, ctrl-1 є {0, 1} State/Output:s (0,1, 10) The state transition function is defined as: s(t) if ctrl-0-0 and ctrl-1 = 0 (s(t)+ 1) mod 11 ifctl_0-0 and ctrl 1-1 s(t+1(s(t)+2) mod1...
Please show process and I will rate faster!!!
2. Design a two-bit up/down binary counter using T-fip-flops that can count in binary from 0 to 3. When the control input x is 0, the circuit counts up and when it is 1, the circuit counts down. (a) Obtain the state table of the two-bit counter (P. S., Input, N. S., Output). (b) Obtain the state diagram. (c) Draw the logic diagram of the circuit.
Design an up/down counter with four states (0, 1, 2, 3) using clocked J-K flip-flops. A control signal x is used as follows: When x 0 the machine counts forward (up), when x , backward (down). Simulate using MultiSim and attach a simulation printout X Please address the following in your report 1. State Table 2. State Diagram 3. Flip-Flop Excitation Tables 4 K-Map Simplification and resulting diagram 5. Multisim Simulation 6. Conclusion/Discussion 7. References
Design an up/down counter with...
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
ECEN3233 Digital Logic Design Name 3. Use a synchronous 4-bit binary up counter (with load and enable) to design a modulo-8 counter (also called offset counter) that begins with 0100, which means the counting sequence is: 0100-0101-0110->0111->1000->1001->1010->1011->0100-0101... Please complete your design using the figure on the next page. Use some logic gates if you need. (10 points) Enable Load Clock
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
