Homework Answers
Add Answer to:

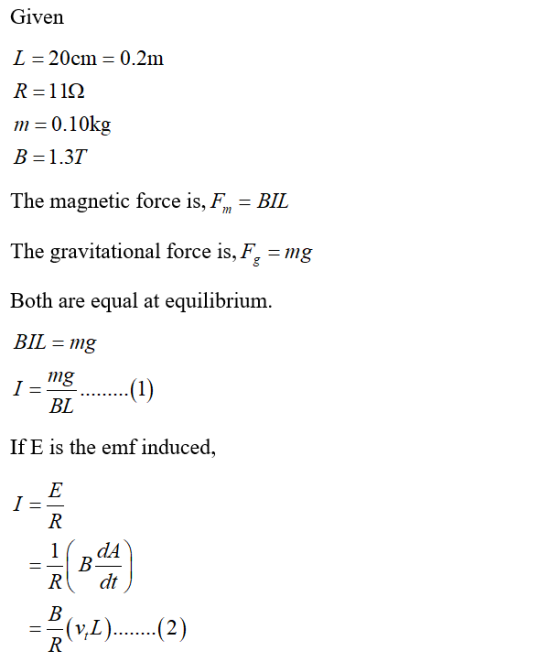

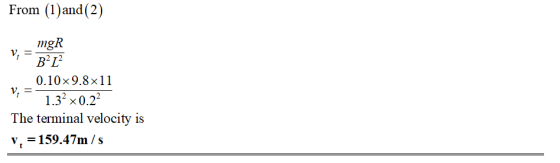

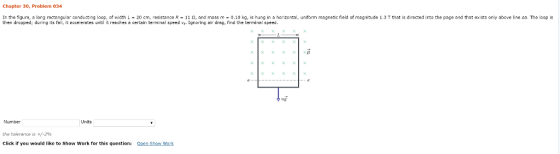

In the figure, a long rectangular conducting loop, of width L = 20 cm, resistance R...
Problem 9. (4 points) Fall of a rectangular loop. A conducting rectangular loop of mass M,...
Problem 9. (4 points) Fall of a rectangular loop. A conducting rectangular loop of mass M, resistance R, and dimensions a × b as shown in Fig. 8 is allowed to fall from rest through a uniform magnetic field which is perpendicular to the plane of the loop. The loop accelerates until it reaches a terminal speed(before the upper end enters the magnetic field). If a 2.0 m, B 6.0 T, R-130 and M= 0.60 kg, what is the terminal...
1. Consider a rectangular conducting loop of length l, width w, mass m, and resistance R....
1. Consider a rectangular conducting loop of length l, width w, mass m, and resistance R. Due to gravity g, it is falling out of a uniform magnetic field that points out of the page. At the time shown in the figure, the rate at which heat is released from the loop reaches a constant value P. O © Boo O O BrŐ Figure 1: Loop falling out of a magnetic field (a) Find the magnetic field B in terms...
B 15) A rectangular conducting loop of length 1 and width w and total resistance R...
B 15) A rectangular conducting loop of length 1 and width w and total resistance R is being pulled out of a region of magnetic field B. If the loop is moving with a constant speed v, what is the electric current (magnitude and direction) in the loop? w V 15) = 0.12 m, w = 0.22 m, R = 0.342, B = 1.25 T into page, v = 8.76" A) 4.01 A, Clockwise B) 4.01 A, Counter Clockwise C)...
In the figure, a rectangular loop of wire with length a = 3.8 cm, width b...
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
9. FALLING LOOP A rectangular loop is w in width and very long in height. It...
9. FALLING LOOP A rectangular loop is w in width and very long in height. It is held vertical, initially at rest. The loop has internal resistance R. It is in a region of space where there is a uniform magnetic field of strength Bo which is perpendicular to the plane of the loop. The region of space directly below the loop has no magnetic field in it. When the loop is dropped the magnetic flux will change and the...
In figure, a rectangular loop of wire with length a, width b, and resistance R is...
In figure, a rectangular loop of wire with length a, width b,
and resistance R is placed near an infinite long wire carrying
current Io.
The loop is then moved away from the wire at constant speed
v.
What is the induced current in the loop?
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A m...
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A metal conducting bar having a resistance of 5.0Ω is placed across the frame, maintaining contact with the frame. conducting frame rod If the bar is moving at a speed of 1.5m/s, what is the voltage (em) induced across the ends of the bar? a)...
A rectangular loop of wire with dimensions 2.43 cm by 8.38 cm and resistance 0.593 Ω
A rectangular loop of wire with dimensions 2.43 cm by 8.38 cm and resistance 0.593 Ω is being pulled to the right out of a region of uniform magnetic field. The magnetic field has magnitude 3.01 T and is directed into the plane of the following figure(Figure 1). Part A At the instant when the speed of the loop is 3.09 m/s and it is still partially in the field region, what is the magnitude of the force the magnetic field exert...
5. A loop of resistance R, mass M, width w (horizontal) and very long length L...
5. A loop of resistance R, mass M, width w (horizontal) and very long length L (vertical) is falling under gravity in a B field perpendicular to its plane (into the page) which is non-zero (with magnitude B) only below some height, as shown in Fig. 2. Assuming that some part of the loop is always outside the field region: A) Which way does the induced current in the loop flow? Explain your answer. B) The loop will eventually reach...
7 Figure 3 (b) A conducting rectangular loop of wires whose sides are a and b...
7 Figure 3 (b) A conducting rectangular loop of wires whose sides are a and b (as in Figure 3) and electrical resistance R, enters in an area with a magnetic field B = B, yż. This magnetic field only exists in the area where x > 0 and Y > 0, as shown in Figure 3. The rectangular loop of wires slides without friction, with constant velocity v directed along the OX axis. Determine: (1) The magnetic force acting...
Problem 9. (4 points) Fall of a rectangular loop. A conducting rectangular loop of mass M, resistance R, and dimensions a × b as shown in Fig. 8 is allowed to fall from rest through a uniform magnetic field which is perpendicular to the plane of the loop. The loop accelerates until it reaches a terminal speed(before the upper end enters the magnetic field). If a 2.0 m, B 6.0 T, R-130 and M= 0.60 kg, what is the terminal...
1. Consider a rectangular conducting loop of length l, width w, mass m, and resistance R. Due to gravity g, it is falling out of a uniform magnetic field that points out of the page. At the time shown in the figure, the rate at which heat is released from the loop reaches a constant value P. O © Boo O O BrŐ Figure 1: Loop falling out of a magnetic field (a) Find the magnetic field B in terms...
B 15) A rectangular conducting loop of length 1 and width w and total resistance R is being pulled out of a region of magnetic field B. If the loop is moving with a constant speed v, what is the electric current (magnitude and direction) in the loop? w V 15) = 0.12 m, w = 0.22 m, R = 0.342, B = 1.25 T into page, v = 8.76" A) 4.01 A, Clockwise B) 4.01 A, Counter Clockwise C)...
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
9. FALLING LOOP A rectangular loop is w in width and very long in height. It is held vertical, initially at rest. The loop has internal resistance R. It is in a region of space where there is a uniform magnetic field of strength Bo which is perpendicular to the plane of the loop. The region of space directly below the loop has no magnetic field in it. When the loop is dropped the magnetic flux will change and the...
In figure, a rectangular loop of wire with length a, width b,
and resistance R is placed near an infinite long wire carrying
current Io.
The loop is then moved away from the wire at constant speed
v.
What is the induced current in the loop?
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A metal conducting bar having a resistance of 5.0Ω is placed across the frame, maintaining contact with the frame. conducting frame rod If the bar is moving at a speed of 1.5m/s, what is the voltage (em) induced across the ends of the bar? a)...
5. A loop of resistance R, mass M, width w (horizontal) and very long length L (vertical) is falling under gravity in a B field perpendicular to its plane (into the page) which is non-zero (with magnitude B) only below some height, as shown in Fig. 2. Assuming that some part of the loop is always outside the field region: A) Which way does the induced current in the loop flow? Explain your answer. B) The loop will eventually reach...
7 Figure 3 (b) A conducting rectangular loop of wires whose sides are a and b (as in Figure 3) and electrical resistance R, enters in an area with a magnetic field B = B, yż. This magnetic field only exists in the area where x > 0 and Y > 0, as shown in Figure 3. The rectangular loop of wires slides without friction, with constant velocity v directed along the OX axis. Determine: (1) The magnetic force acting...
