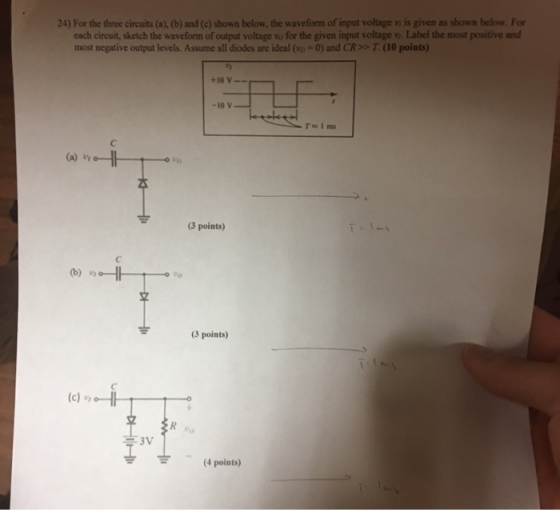

24) For the three circuits (a), (b) and (c) shown below, the waveform of input voltage...
QUESTION (2) The diodes are ideal except with an on-voltage of 0.7V. The input voltage source...
QUESTION (2) The diodes are ideal except with an on-voltage of 0.7V. The input voltage source vIN is a 100Hz, 50% duty cycle square-wave with voltage levels of OV and +10V. The load resistance, R = 1002 DL D a) If the ripple voltage, V 0.5V, sketch the output waveform for several input cycles. What is the average DC output voltage vo + D. C R (6 points) Vo VIN b) What would be the minimum value of C (in...
Or the following circuit, sketch the output voltage, given an input voltage waveform as shown on ...
or the following circuit, sketch the output voltage, given an input voltage waveform as shown on the axes below. Assume a constant voltage drop diode model with Vo- 0.7. +15.0V 4 1mA OVout 3009 3 Vo -4 0 0.2 0.4 0.6 0.8 in
or the following circuit, sketch the output voltage, given an input voltage waveform as shown on the axes below. Assume a constant voltage drop diode model with Vo- 0.7. +15.0V 4 1mA OVout 3009 3 Vo -4...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and Vbi = VB2 = 3 V. (a) Calculate the current through D, and the output voltage for vin1 = 5 V (i.e. constant). (b) Calculate the current through D, and the output voltage for Vin2 = 5 V (i.e. constant). (c) Find the maximum and minimum values of the output voltage vouti(t) when the input voltage Vini(t) is a 10-V peak-to-peak sinusoids with zero...
1. For the 4 circuits shown below, sketch the output waveform for a 1V peak, 1kHz,...
1. For the 4 circuits shown below, sketch the output waveform for a 1V peak, 1kHz, sinusoidal wave in put signal. Assume the diodes are ideal and they exhibit ON-OFF switch model behaviour. Create an ideal diode model in LT-Spice with the following specification [.model IdealDiode D(Ron=0.1m Roff=100G Vfwd-0.0) ] simulate the circuit and verify the output waveform. Vin Vout Vin Vout 1k 1k (a) (b) 1k Vin 1k Vin Vout Vout ww 1k (c) (d) KH
1. For the...
This is a Diode constant voltage model - clipping circuits Please explain steps as you solve....
This is a Diode constant voltage model - clipping
circuits
Please explain steps as you solve. Thank you very much for
your help. please ask if there is anything not clear about the
problem
W (a) For the circuit shown below use the constant voltage diode model (Vp=0.7 V), and find the state of diodes D, and D2 (ie. ON or OFF) and determine the voltage and the current for each. 32k2 OV 5 mA 103=_ ; VD3= 104= ;...
Problem #2: A clipper circuit based on diodes are simple way to modify waveform in mechatronics....
Problem #2: A clipper circuit based on diodes are simple way to modify waveform in mechatronics. Assume that the two diodes shown in the circuit below are ideal diodes. If the input voltage in the circuit is a 1 kHz sinusoid with peak amplitude of 8V, sketch the V..t) 10 k? 10 k? Vin(t ms -8V Page | 1
The input voltage waveform (Vin) t in is shown below along with the circuit. The voltage-controlled...
The input voltage waveform (Vin) t in is shown below along with
the circuit. The voltage-controlled switch S1 closes when the
output voltage Vc (t) goes positive at t=0 and opens when Vc (t)
goes negative at t=5 µs. Assume that Vin(t) in has been at 10 V for
t<0 for a very long time..
3. (15 marks) The input voltage waveform Vin(t) is shown below along with the circuit. The voltage- controlled switch S, closes when the output voltage...
2. (30 points) Design circuits that can transform a 12 Vp-p, 10 kHz triangular input voltage...
2. (30 points) Design circuits that can transform a 12 Vp-p, 10 kHz triangular input voltage shown into the waveforms shown below t(ms) 0.05 0.1 -6 VOUT(V)A 4 t(ms) 0.05 0.1
The circuit to the left is constructed with a 1kS2 resistor and a 1 mF capacitor. The input waveform is shown below. A) Sketch a graph of the output voltage for this graph, starting at t 0 and en...
The circuit to the left is constructed with a 1kS2 resistor and a 1 mF capacitor. The input waveform is shown below. A) Sketch a graph of the output voltage for this graph, starting at t 0 and ending it once the capacitor has Rreturned to an apparent steady state. Be sure to label rtant points and values ts the value of output voltage at t-11 seconds? 12 seconds? C) Sketch a graph of the output current for this graph,...
Problem 2: Sketch the output voltage waveform for each of the following circuits showing clearly the...
Problem 2: Sketch the output voltage waveform for each of the following circuits showing clearly the voltage levels. 4.7 k12 +25 +15 V Il vino / -15 V 100 I Vout 34.7 k12
QUESTION (2) The diodes are ideal except with an on-voltage of 0.7V. The input voltage source vIN is a 100Hz, 50% duty cycle square-wave with voltage levels of OV and +10V. The load resistance, R = 1002 DL D a) If the ripple voltage, V 0.5V, sketch the output waveform for several input cycles. What is the average DC output voltage vo + D. C R (6 points) Vo VIN b) What would be the minimum value of C (in...
or the following circuit, sketch the output voltage, given an input voltage waveform as shown on the axes below. Assume a constant voltage drop diode model with Vo- 0.7. +15.0V 4 1mA OVout 3009 3 Vo -4 0 0.2 0.4 0.6 0.8 in
or the following circuit, sketch the output voltage, given an input voltage waveform as shown on the axes below. Assume a constant voltage drop diode model with Vo- 0.7. +15.0V 4 1mA OVout 3009 3 Vo -4...
Consider the circuits below with ideal diodes, R = 2 ks, C = 1 uF, and Vbi = VB2 = 3 V. (a) Calculate the current through D, and the output voltage for vin1 = 5 V (i.e. constant). (b) Calculate the current through D, and the output voltage for Vin2 = 5 V (i.e. constant). (c) Find the maximum and minimum values of the output voltage vouti(t) when the input voltage Vini(t) is a 10-V peak-to-peak sinusoids with zero...
1. For the 4 circuits shown below, sketch the output waveform for a 1V peak, 1kHz, sinusoidal wave in put signal. Assume the diodes are ideal and they exhibit ON-OFF switch model behaviour. Create an ideal diode model in LT-Spice with the following specification [.model IdealDiode D(Ron=0.1m Roff=100G Vfwd-0.0) ] simulate the circuit and verify the output waveform. Vin Vout Vin Vout 1k 1k (a) (b) 1k Vin 1k Vin Vout Vout ww 1k (c) (d) KH
1. For the...
This is a Diode constant voltage model - clipping
circuits
Please explain steps as you solve. Thank you very much for
your help. please ask if there is anything not clear about the
problem
W (a) For the circuit shown below use the constant voltage diode model (Vp=0.7 V), and find the state of diodes D, and D2 (ie. ON or OFF) and determine the voltage and the current for each. 32k2 OV 5 mA 103=_ ; VD3= 104= ;...
Problem #2: A clipper circuit based on diodes are simple way to modify waveform in mechatronics. Assume that the two diodes shown in the circuit below are ideal diodes. If the input voltage in the circuit is a 1 kHz sinusoid with peak amplitude of 8V, sketch the V..t) 10 k? 10 k? Vin(t ms -8V Page | 1
The input voltage waveform (Vin) t in is shown below along with
the circuit. The voltage-controlled switch S1 closes when the
output voltage Vc (t) goes positive at t=0 and opens when Vc (t)
goes negative at t=5 µs. Assume that Vin(t) in has been at 10 V for
t<0 for a very long time..
3. (15 marks) The input voltage waveform Vin(t) is shown below along with the circuit. The voltage- controlled switch S, closes when the output voltage...
2. (30 points) Design circuits that can transform a 12 Vp-p, 10 kHz triangular input voltage shown into the waveforms shown below t(ms) 0.05 0.1 -6 VOUT(V)A 4 t(ms) 0.05 0.1
The circuit to the left is constructed with a 1kS2 resistor and a 1 mF capacitor. The input waveform is shown below. A) Sketch a graph of the output voltage for this graph, starting at t 0 and ending it once the capacitor has Rreturned to an apparent steady state. Be sure to label rtant points and values ts the value of output voltage at t-11 seconds? 12 seconds? C) Sketch a graph of the output current for this graph,...
Problem 2: Sketch the output voltage waveform for each of the following circuits showing clearly the voltage levels. 4.7 k12 +25 +15 V Il vino / -15 V 100 I Vout 34.7 k12
