Homework Answers
4. In statistical quality control, x-bar chart can be recommended to monitor the diameter of a shaft. X-bar chart is generally used to monitor the arithmetic means of successive samples of constant size.
5. p-chart can be recommended for proportion of defects in a sample. p-chart is generally used to monitor the proportion of nonconforming units in a sample.
Add Answer to:
4. What type of chart is recommended for monitoring diameter of a shaft? (3 points) 5....
plz do 4 and 5 clear writing plz no too long answers, class: automotive engineering U...
plz
do 4 and 5 clear writing plz no too long answers,
class: automotive engineering

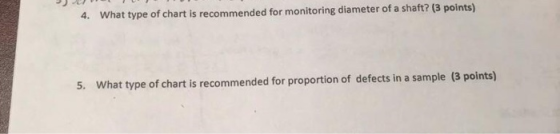

U LIVILIZINI 4. What type of chart is recommended for monitoring diameter of a shaft? (3 points) 5. What type of chart is recommended for proportion of defects in a sample (3 points)
