Homework Answers
Add Answer to:

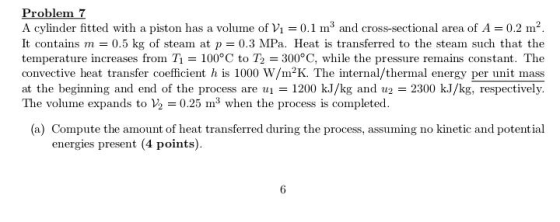

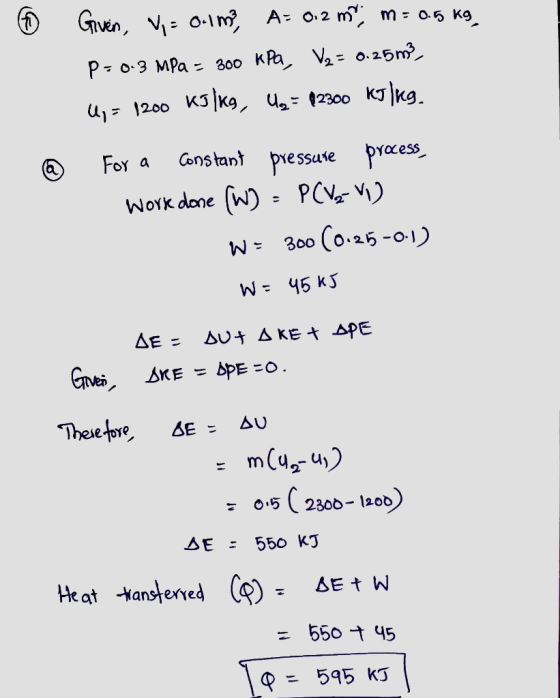

Problem 7 A cylinder fitted with a piston has a volume of Vi = 0.1 m...
A cylinder fitted with piston contains 0.2 kg of N2 at 100 kPa and 30°C. The...
A cylinder fitted with piston contains 0.2 kg of N2 at 100 kPa and 30°C. The piston is moved compressing N2 until the pressure becomes 1 MPa and temperature becomes 150°C. The work done during the process is 20 kJ. Determine the heat transferred from N2 to the surroundings. Take Cv = 0.75 kJ/kg K for N2.
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without...
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without internal irreversibilities to a final pressure of 0.1 MPa. Evaluate the (a)work done, in kJ/kg, (b) the change of entropy,, in kJ/kg - K and (c) the change of internal energy, in kJ/kg. Assume the system can be treated as a Van der Waals model.. [Given: the specific volume of the water vapor can be determined from the superheated steam table and they are:...
Problem 2: 35 points A cylinder of 5 m height is fitted with a massless piston of negligible thickness and diameter...
Problem 2: 35 points A cylinder of 5 m height is fitted with a massless piston of negligible thickness and diameter D-Im. Initially, the piston is at the top of the cylinder and 5 kg of boiling water at 100rC existed below the piston. 3000 kg of liquid water at 20C were poured slowly and at a constant rate over the piston to compress the boiling water. Neglect kinetic and potential energy changes a) Find the work done on the...
write clearly 2.48 Steam in a piston-cylinder assembly undergoes a poly- tropic process, with n 2,...
write clearly
2.48 Steam in a piston-cylinder assembly undergoes a poly- tropic process, with n 2, from an initial state where p 3.45 MPa, v 0.106 m/kg, u 3,171.1 kJ/kg, to a final state where u 2,303.9 kJ/kg. During the process, there is a heat transfer from the steam of magnitude 361.76 kJ. The mass of steam is 0.54 kg. Neglecting changes in kinetic and potential energy, determine the work, in kJ, and the final specific volume, in m'/kg.
Question Two (10 Marks] Air is contained in vertical piston-cylinder assembly fitted with an electrical resistor....
Question Two (10 Marks] Air is contained in vertical piston-cylinder assembly fitted with an electrical resistor. The atmosphere exerts a pressure of 1 bar on the top of the piston, which has a mass of 45 kg and a face area of 0.09 m². Electric current passes through the resistor, and the volume of the air slowly increases by 0.45 m while its pressure remains constant. The mass of the air is 0.27 kg. and its specific internal energy increases...
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without...
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without internal irreversibilities to a final pressure of 0.1 MPa. Evaluate the (a)work done, in kJ/kg, (b) the change of entropy,, in kJ/kg - K and (c) the change of internal energy, in kJ/kg. Assume the system can be treated as a Van der Waals model.. [Given: the specific volume of the water vapor can be determined from the superheated steam table and they are:...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted with two stops. The mass of the piston is 50 kg and the system is open to the atmosphere with Ptm - 100 kPa. The initial temperature of the system Ti Tantal 105 'C and the initial volume V1 Vinitial 1 m3 When the piston reaches the second stop, the volume of the water is doubled (V4Vinal2 Vinitial). Heat is EE transferred between the...
A piston-cylinder apparatus contains 5 kg of saturated water at 55˚C. The piston’s cross sectional area...
A piston-cylinder apparatus contains 5 kg of saturated water at 55˚C. The piston’s cross sectional area is 0.04 m2, and initially is resting on stops, enclosing a volume of 0.02 m3. To raise the piston, a pressure of 500 kPa has to be applied. When the volume is 0.05 m3, the piston encounters a linear spring. To deflect the spring 1 m, a force of 400 kN is required. More heat is transferred until the final pressure is 3 MPa....
A vertical piston-cylinder device contains water and is being heated. During the heating process, 70 kJ...
A vertical piston-cylinder device contains water and is being heated. During the heating process, 70 kJ of heat is transferred to the water, and heat losses from the side walls amount to 8 kJ. The piston rises as a result of evaporation, changing the volume by 0.5 m^3 . When the atmospheric pressure is 1 atm and the mass of the piston is 50 kg and its cross-sectional area is 0.05 m^2 , determine the change in the energy of...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without internal irreversibilities to a final pressure of 0.1 MPa. Evaluate the (a)work done, in kJ/kg, (b) the change of entropy,, in kJ/kg - K and (c) the change of internal energy, in kJ/kg. Assume the system can be treated as a Van der Waals model.. [Given: the specific volume of the water vapor can be determined from the superheated steam table and they are:...
Problem 2: 35 points A cylinder of 5 m height is fitted with a massless piston of negligible thickness and diameter D-Im. Initially, the piston is at the top of the cylinder and 5 kg of boiling water at 100rC existed below the piston. 3000 kg of liquid water at 20C were poured slowly and at a constant rate over the piston to compress the boiling water. Neglect kinetic and potential energy changes a) Find the work done on the...
write clearly
2.48 Steam in a piston-cylinder assembly undergoes a poly- tropic process, with n 2, from an initial state where p 3.45 MPa, v 0.106 m/kg, u 3,171.1 kJ/kg, to a final state where u 2,303.9 kJ/kg. During the process, there is a heat transfer from the steam of magnitude 361.76 kJ. The mass of steam is 0.54 kg. Neglecting changes in kinetic and potential energy, determine the work, in kJ, and the final specific volume, in m'/kg.
Question Two (10 Marks] Air is contained in vertical piston-cylinder assembly fitted with an electrical resistor. The atmosphere exerts a pressure of 1 bar on the top of the piston, which has a mass of 45 kg and a face area of 0.09 m². Electric current passes through the resistor, and the volume of the air slowly increases by 0.45 m while its pressure remains constant. The mass of the air is 0.27 kg. and its specific internal energy increases...
Water vapor initially at 240 °C, 1.0 MPa expands in a piston-cylinder assembly isothermally and without internal irreversibilities to a final pressure of 0.1 MPa. Evaluate the (a)work done, in kJ/kg, (b) the change of entropy,, in kJ/kg - K and (c) the change of internal energy, in kJ/kg. Assume the system can be treated as a Van der Waals model.. [Given: the specific volume of the water vapor can be determined from the superheated steam table and they are:...
Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device fitted with two stops. The mass of the piston is 50 kg and the system is open to the atmosphere with Ptm - 100 kPa. The initial temperature of the system Ti Tantal 105 'C and the initial volume V1 Vinitial 1 m3 When the piston reaches the second stop, the volume of the water is doubled (V4Vinal2 Vinitial). Heat is EE transferred between the...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
