Add Answer to:

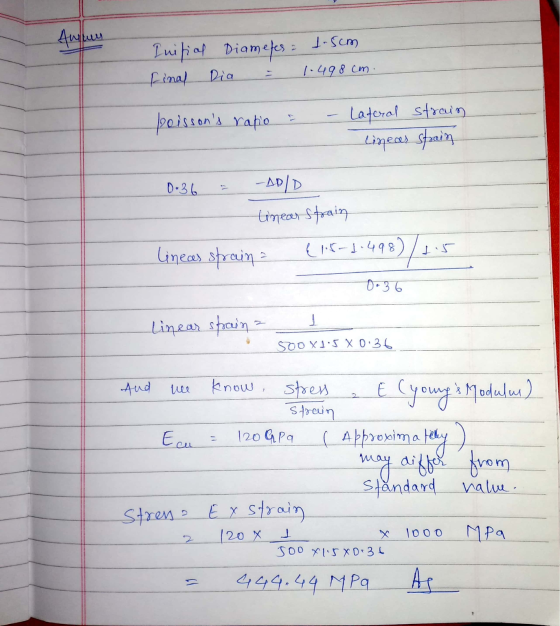

Q4) A copper (Cu) bar with a 1.5 cm diameter is subjected to tensile load, which...
Q4. A bar shown below is loaded at its end acting perpendicular to the diagram, Strain...
Q4. A bar shown below is loaded at its end acting perpendicular to the diagram, Strain Gauge Length A = 700mm Length B = 350.0mm Length C = 480.0mm Diameter D = 10.0mm Poisson's Ratio = 0.3 E= 220GP a) If the yield stress of the material (steel) is 200 MPa, calculate the maximum load (in Kg) that can be applied to the bar using Von Mises Criterion using a factor of safety of 1.5 (Marks - 5) b) Hence...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23 mm from an original diameter of 149 mm. Poisson's ratio for the bar is v= 0.37. Determine the elastic modulus of the bar. Give your answer in GPa.
1. (8 points) A 10 meter steel wire of 3mm diameter is supporting a tensile load...
1. (8 points) A 10 meter steel wire of 3mm diameter is supporting a tensile load due to a hanging mass of 122.4kg. If the clastic modulus is 200GPa and the Poisson's ratio 0.27, find the following: a. New length and diameter of steel wire (assume elasticity). b. True and engineering stresses and strains.
A tensile test is performed on a linear elastic material using a cylindrical bar of diameter...
A tensile test is performed on a linear elastic material using a cylindrical bar of diameter 5 mm and gauge length 55 mm. An axial tensile force of 960 N is applied to the test specimen and a corresponding extension of 0.56 mm is recorded by the extensometer. Assuming that the Poisson's ratio is 0.3, calculate the modulus of rigidity (also known as the shear modulus), G, for this material. Enter your value in units of GPa to one decimal...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
Part B Calculate the load II Review A square steel bar has a length of 2.2...
Part B Calculate the load II Review A square steel bar has a length of 2.2 ft and a 1.5 in by 1.5 in cross section and is subjected to axial compression. Under load, the thickness becomes 1.50032 in . If the modulus of elasticity is E = 2.9x 104 ksi and Poisson's ratio is v = 0.31; what is the magnitude of the load that was applied to the bar? Learning Goal To use Poisson's ratio and Hooke's law...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected to an axial load of 28,500 N. Using the list of materials shown in the table below, answer questions 1 through 2. Yield Strength Young's Modulus Material [MPa] Density (g/cm] Aluminum alloy 255 70 2.75 Steel alloy 400 207 7.85 Titanium alloy 800 110 4.50 Copper alloy 250 110 8.50 Brass alloy 340 100 8.40 1. If the elongation is not to exceed 0.6...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
P.1.9. A bar of mild steel has a diameter of 75 mm and is placed inside...
P.1.9. A bar of mild steel has a diameter of 75 mm and is placed inside a hollow aluminum cylinder of internal diameter 75 mm and external diameter 100 mm; both bar and cylinder are the same length. The resulting composite bar is subjected to an axial compressive load of 1000 KN. If the bar and cylinder contract by the same amount, calculate the stress in each. The temperature of the compressed composite bar is then reduced by 150°C but...
Q4. A bar shown below is loaded at its end acting perpendicular to the diagram, Strain Gauge Length A = 700mm Length B = 350.0mm Length C = 480.0mm Diameter D = 10.0mm Poisson's Ratio = 0.3 E= 220GP a) If the yield stress of the material (steel) is 200 MPa, calculate the maximum load (in Kg) that can be applied to the bar using Von Mises Criterion using a factor of safety of 1.5 (Marks - 5) b) Hence...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23 mm from an original diameter of 149 mm. Poisson's ratio for the bar is v= 0.37. Determine the elastic modulus of the bar. Give your answer in GPa.
1. (8 points) A 10 meter steel wire of 3mm diameter is supporting a tensile load due to a hanging mass of 122.4kg. If the clastic modulus is 200GPa and the Poisson's ratio 0.27, find the following: a. New length and diameter of steel wire (assume elasticity). b. True and engineering stresses and strains.
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
Part B Calculate the load II Review A square steel bar has a length of 2.2 ft and a 1.5 in by 1.5 in cross section and is subjected to axial compression. Under load, the thickness becomes 1.50032 in . If the modulus of elasticity is E = 2.9x 104 ksi and Poisson's ratio is v = 0.31; what is the magnitude of the load that was applied to the bar? Learning Goal To use Poisson's ratio and Hooke's law...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected to an axial load of 28,500 N. Using the list of materials shown in the table below, answer questions 1 through 2. Yield Strength Young's Modulus Material [MPa] Density (g/cm] Aluminum alloy 255 70 2.75 Steel alloy 400 207 7.85 Titanium alloy 800 110 4.50 Copper alloy 250 110 8.50 Brass alloy 340 100 8.40 1. If the elongation is not to exceed 0.6...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
P.1.9. A bar of mild steel has a diameter of 75 mm and is placed inside a hollow aluminum cylinder of internal diameter 75 mm and external diameter 100 mm; both bar and cylinder are the same length. The resulting composite bar is subjected to an axial compressive load of 1000 KN. If the bar and cylinder contract by the same amount, calculate the stress in each. The temperature of the compressed composite bar is then reduced by 150°C but...
