Question

Given

given electrical signal of: 0.25mA at 2.5 volts

with an effective voltage range between 0v to 5v

an acceptable DC offset is applied, only if needed.

Find all suitable values for R1 and Rf

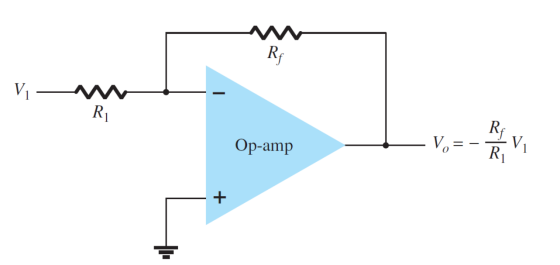

Rf Vi Ri RA Op-amp Vo V RI +s

0 0
Add a comment Improve this question Transcribed image text
Answer #1

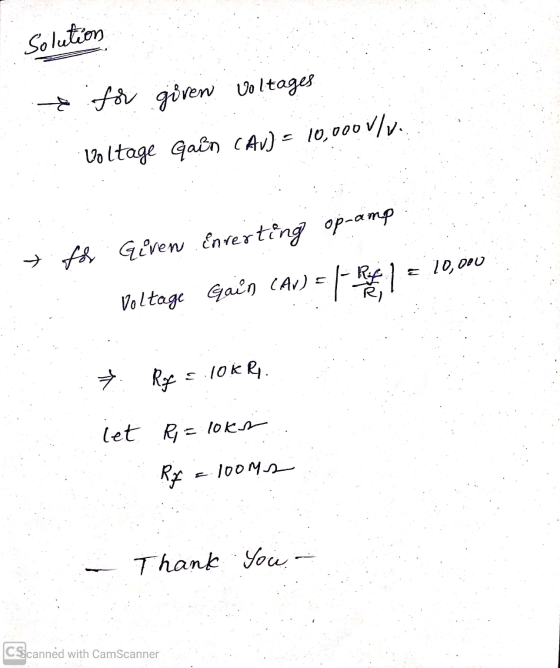

Solution I for given Voltages. Voltage Gain (Av) = 10,000 V/v. → for Giren Enverting op-amp € 10,000 El-Rif Voltage Gain (A1)

Add a comment
Know the answer?
Add Answer to:
Given given electrical signal of: 0.25mA at 2.5 volts with an effective voltage range between 0v...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
