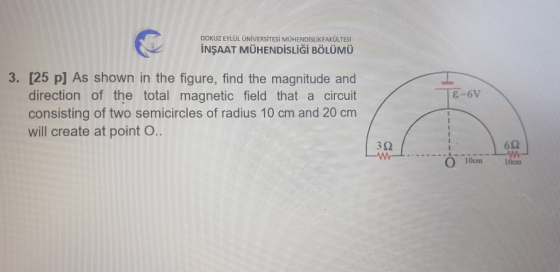

![DOKUZ EYLÜL ÜNİVERSİTESİ MÜHENDİSLİK FAKÜLTESİ İNŞAAT MÜHENDİSLİĞİ BÖLÜMÜ E-6V 3. [25 p] As shown in the figure, find the mag](http://img.homeworklib.com/questions/b0691560-fd44-11eb-867c-43436090a65a.png?x-oss-process=image/resize,w_560)

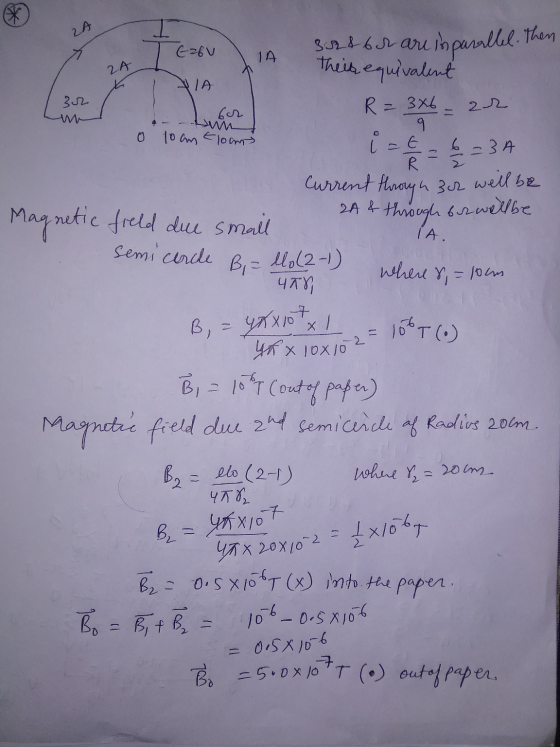

Homework Answers
Add Answer to:
DOKUZ EYLÜL ÜNİVERSİTESİ MÜHENDİSLİK FAKÜLTESİ İNŞAAT MÜHENDİSLİĞİ BÖLÜMÜ E-6V 3. [25 p] As shown in the...
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by...
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by d = 10.2 cm and carry currents of I = 5.15 A in opposite directions. (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude direction Select AT (b) Find the magnitude and direction of the net magnetic field at point P, 10.2 cm to the right of the wire on the right. magnitude direction...
Semicircles of current Due this Wednesday, Mar 25 at 11:59 pm (EDT) A current is set...
Semicircles of current Due this Wednesday, Mar 25 at 11:59 pm (EDT) A current is set up in a wire loop consisting of a semicircle of radius 6.47 cm, a smaller concentric semicircle, and two radial straight lengths, all in the same plane. Part (a) of the figure shows the arrangement but is not drawn to scale. The magnitude of the magnetic field produced at the center of curvature is 55.0 UT. The smaller semicircle is then flipped over (rotated)...
A squared wire ( 10cm X 10cm) which carries a current of 10 A is placed...
A
squared wire ( 10cm X 10cm) which carries a current of 10 A is
placed in a uniform magnetic field of magnitude B=1.0 T, as shown
in the figure. Please find the net force exerted on the squared
wire
Part 2, Open-end questions (10 points each) 1, A squared wire (10cm X 10 cm) which carries a current of 10 A is placed in a uniform magnetic field of magnitude B=1.0 T, as shown in the figure. Please find...
The closed loop shown in the figure below carries a current of 14.5 A in the...
The closed loop shown in the figure below carries a current of 14.5 A in the counterclockwise direction The radius of the outer arc is 80 cm, that of the inner arc is 33 cm. Find the magnitude of the magnetic field at point P. 60° T Enter
A loop of wire is in the shape of two concentric semicircles as shown. (Figure 1) The inner circle has radius a; the ou...
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
An electric field is restricted to a circular area of diameter d = 10.8 cm as shown in the figure.
An electric field is restricted to a circular area of diameter d = 10.8 cm as shown in the figure. At the instant shown, the field direction is out of the page, its magnitude is 300 V/m, and its magnitude is increasing at a rate of 19.8 V/(m s) (a) What is the direction of the magnetic field at the point P, r = 15.5 cm from the center of the circle? upwards downwards (b) What is the magnitude of the magnetic field (in T)...
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the...
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the figure below have radii a and b. Calculate the net magnetic field (magnitude and direction) that the current in the wires produces at point P. (Use any variable or symbol stated above along with the following as necessary: μ0 and 1 for the current in the wire.) magnitude B = into the page out of the page direction al
1. -3 points Se PSE10 331.OP00 My Nates O Ask Your Teac An electric field is...
1. -3 points Se PSE10 331.OP00 My Nates O Ask Your Teac An electric field is restricted to a circular area of diameter d-11.1 cm as shown in the figure. At the instant shown, the field direction is out of the page, its magnitude is 300 V/m, and its magnitude is increasing at a rate of 20.8 V/(m s) a) What is the direction of the magnetic field at the point P,r 14.7 cm from the center of the circle?...
The two wires shown in the figure below are separated by d = 12.1 cm and...
The two wires shown in the figure below are separated by
d = 12.1 cm and carry currents of I = 5.50 A in
opposite directions.
1: 2d (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires magnitude direction-Select μπ (b) Find the magnitude and direction of the net magnetic field at point P, 12.1 cm to the right of the wire on the right magnitude direction-Select (c) Find the magnitude...
Please answer both and I will UpVote 3. A 3-meter long straight wire carries a current...
Please answer both and I will UpVote
3. A 3-meter long straight wire carries a current of 30 A in a uniform magnetic fields of 0.5 T whose direction is at an angle of 45 degrees from the direction of the current. Find the magnitude of the magnetic force acting on the wire. (5 marks total) 4. Two circular wire loops are located inside the same plane, and they have a common centre. The outer loop carries a current of...
10. -/6 points SerCP10 19.P.048. The two wires shown in the figure below are separated by d = 10.2 cm and carry currents of I = 5.15 A in opposite directions. (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires. magnitude direction Select AT (b) Find the magnitude and direction of the net magnetic field at point P, 10.2 cm to the right of the wire on the right. magnitude direction...
Semicircles of current Due this Wednesday, Mar 25 at 11:59 pm (EDT) A current is set up in a wire loop consisting of a semicircle of radius 6.47 cm, a smaller concentric semicircle, and two radial straight lengths, all in the same plane. Part (a) of the figure shows the arrangement but is not drawn to scale. The magnitude of the magnetic field produced at the center of curvature is 55.0 UT. The smaller semicircle is then flipped over (rotated)...
A
squared wire ( 10cm X 10cm) which carries a current of 10 A is
placed in a uniform magnetic field of magnitude B=1.0 T, as shown
in the figure. Please find the net force exerted on the squared
wire
Part 2, Open-end questions (10 points each) 1, A squared wire (10cm X 10 cm) which carries a current of 10 A is placed in a uniform magnetic field of magnitude B=1.0 T, as shown in the figure. Please find...
The closed loop shown in the figure below carries a current of 14.5 A in the counterclockwise direction The radius of the outer arc is 80 cm, that of the inner arc is 33 cm. Find the magnitude of the magnetic field at point P. 60° T Enter
A loop of wire is in the shape of two concentric semicircles as
shown. (Figure 1) The inner circle has radius a; the outer circle
has radius b. A current I flows clockwise through the outer wire
and counterclockwise through the inner wire. What is the direction
of the magnetic field at the center of the semicircles?
Question 4 A loop of wire is in the shape of two concentric semicircles as shown. (Eigure 1) The inner circle has radius...
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the figure below have radii a and b. Calculate the net magnetic field (magnitude and direction) that the current in the wires produces at point P. (Use any variable or symbol stated above along with the following as necessary: μ0 and 1 for the current in the wire.) magnitude B = into the page out of the page direction al
1. -3 points Se PSE10 331.OP00 My Nates O Ask Your Teac An electric field is restricted to a circular area of diameter d-11.1 cm as shown in the figure. At the instant shown, the field direction is out of the page, its magnitude is 300 V/m, and its magnitude is increasing at a rate of 20.8 V/(m s) a) What is the direction of the magnetic field at the point P,r 14.7 cm from the center of the circle?...
The two wires shown in the figure below are separated by
d = 12.1 cm and carry currents of I = 5.50 A in
opposite directions.
1: 2d (a) Find the magnitude and direction of the net magnetic field at a point midway between the wires magnitude direction-Select μπ (b) Find the magnitude and direction of the net magnetic field at point P, 12.1 cm to the right of the wire on the right magnitude direction-Select (c) Find the magnitude...
Please answer both and I will UpVote
3. A 3-meter long straight wire carries a current of 30 A in a uniform magnetic fields of 0.5 T whose direction is at an angle of 45 degrees from the direction of the current. Find the magnitude of the magnetic force acting on the wire. (5 marks total) 4. Two circular wire loops are located inside the same plane, and they have a common centre. The outer loop carries a current of...
