Homework Answers
a)
induced magnetic field: in downward direction along the loop
induced current : from A to B
====
b)
induced magnetic field: upward direction
indiced current : from A to B
======
c)
induced magnetic field : upward direction
indiced current : B to A
======
d)
induced magnetic field : downwards
induced current : from B to A
======
comment before rate in case any doubt, will reply for sure.. goodluck
Add Answer to:

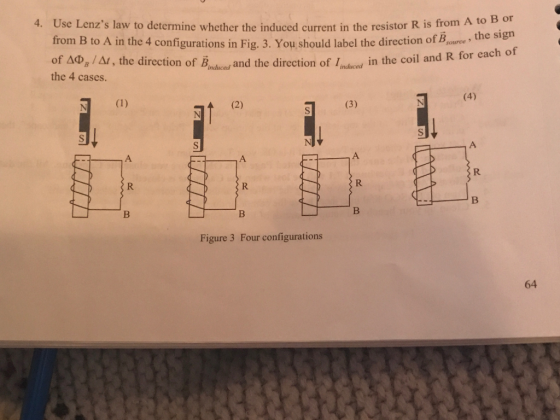

Use Lenz s law to determine whether the induced current in the resistor R is from...
The figures below show two different situations where a current may be induced in a loop...
The figures below show two different situations where a current may be induced in a loop by Faraday's Law, with the direction determined by Lenz Law. The magnetic field is shown by the x's in Fig. 2.Choose true or false for each statement for the current in the loop. (The compass directions are defined in the usual way.) IN S fig ???? fig 2 ???? figl: Loop moving East, induced current b fig2: Loop moving South, induced current b fig2:...
In the following figure, determine the direction of the current in resistor ab: A) As switch...
In the following figure, determine the direction of the current
in resistor ab:
A) As switch S is closed. B) As coil B is moved away from coil A
with the switch closed; C) As the resistance of R is increased
while the switch remains closed
A circular loop of wire with radius R, is in a region of
spatially uniform magnet field as shown below. The magnetic field
is directed into the plane of the figure.
Calculate the direction...
2. Gm Lab report on Experiment 71 1. Your lab report should be in the require...
2. Gm Lab report on Experiment 71 1. Your lab report should be in the require Graph Page #1 (similar to Fig. 2) should be included in your lab report. 3. Table I should be included in your lab report. 4. It is required that the answers or solutions to th P. should be in the required format described in the "Introduction" of the lab manual. report. the answers or solutions to the questions (see below) should be included in...
What is the direction of the induced magnetic field in the coil when the bar magnet is moving...
A coil is suspended around an axis which is colinear with the axis of a bar magnet.The coil is connected to a resistor with ends labeled “a” and “b”. The bar magnet moves from left to right with North and South poles labeled as in the figure. UseLenz’s law to answer the following question concerning the direction of induced currents and magnetic fields.What is the direction of the induced magnetic field in the coil when the bar magnet ismoving from...
A rectangular coil of 110 turns has dimensions of 28 x 31 cm and is located in a uniform,2 T magnetic field.
INDUCED EMF IN RECTANGULAR COIL: (CapaLib problem 65-06): PART A: A rectangular coil of 110 turns has dimensions of 28 x 31 cm and is located in a uniform,2 T magnetic field. In Q.8, s, the plane of the coil is rotated from a position where it makes an angle of 11° with the magnetic field to a position where it makes an angle of 83°. Calculate average emf induced in the coil. (The field points vertically downward.) PART B: What is...
A solenoid is wound as shown in the figure. a. Is there an induced current as...
A solenoid is wound as shown in the figure.
a. Is there an induced current as magnet 1 is moved away from the
solenoid? If so, what is the current direction through resistor
R?
b. Is there an induced current as magnet 2 is moved away from the
solenoid? If so, what is the current direction through resistor
R?
S 2 N N SI CCCCCCCC min 1
Lenz's Law with Switch being open and closed
http://session.masteringphysics.com/problemAsset/1261825/1/YF-29-17.jpgPart A: Using Lenz's law, determine the direction of the current in resistor ab of the figure when switch S is opened after having been closed for severalminutes.1) from point a to point b2) from point b to point aPart B: Using Lenz's law, determine the direction of the current in resistor ab of the figure when coil B is brought closer to coil A with the switch closed.1) from point a to point b2) from point b to point...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In t...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
Determine the current in the circuit. Determine what the frequency would need to be for the...
Determine the current in the circuit. Determine what the frequency would need to be for the current to be maximized. 2. Consider a rectangular wire coil that is 50 cm wide by 15 cm tall. There are ten loops in the coil. Notice the 20 resistor in the bottom section of the coil. The rectangular loop is pulled apart by the sides so that it stretches into a very thin loop in 3 seconds as shown below. There is a...
The figures below show two different situations where a current may be induced in a loop by Faraday's Law, with the direction determined by Lenz Law. The magnetic field is shown by the x's in Fig. 2.Choose true or false for each statement for the current in the loop. (The compass directions are defined in the usual way.) IN S fig ???? fig 2 ???? figl: Loop moving East, induced current b fig2: Loop moving South, induced current b fig2:...
In the following figure, determine the direction of the current
in resistor ab:
A) As switch S is closed. B) As coil B is moved away from coil A
with the switch closed; C) As the resistance of R is increased
while the switch remains closed
A circular loop of wire with radius R, is in a region of
spatially uniform magnet field as shown below. The magnetic field
is directed into the plane of the figure.
Calculate the direction...
2. Gm Lab report on Experiment 71 1. Your lab report should be in the require Graph Page #1 (similar to Fig. 2) should be included in your lab report. 3. Table I should be included in your lab report. 4. It is required that the answers or solutions to th P. should be in the required format described in the "Introduction" of the lab manual. report. the answers or solutions to the questions (see below) should be included in...
A solenoid is wound as shown in the figure.
a. Is there an induced current as magnet 1 is moved away from the
solenoid? If so, what is the current direction through resistor
R?
b. Is there an induced current as magnet 2 is moved away from the
solenoid? If so, what is the current direction through resistor
R?
S 2 N N SI CCCCCCCC min 1
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
Determine the current in the circuit. Determine what the frequency would need to be for the current to be maximized. 2. Consider a rectangular wire coil that is 50 cm wide by 15 cm tall. There are ten loops in the coil. Notice the 20 resistor in the bottom section of the coil. The rectangular loop is pulled apart by the sides so that it stretches into a very thin loop in 3 seconds as shown below. There is a...
