Need help with Multisim to simulate these circuit diagrams. Any Multisim works, preferrably Multisim Live

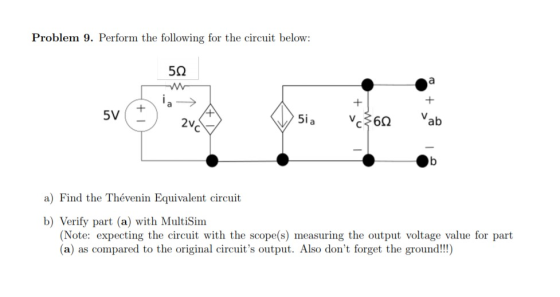

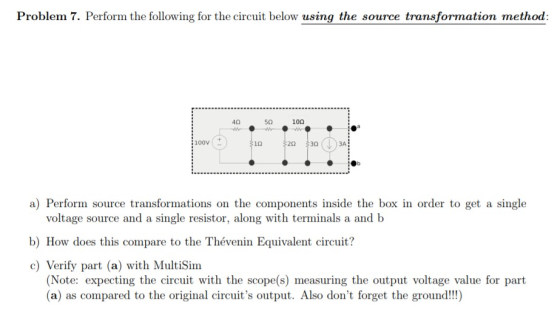

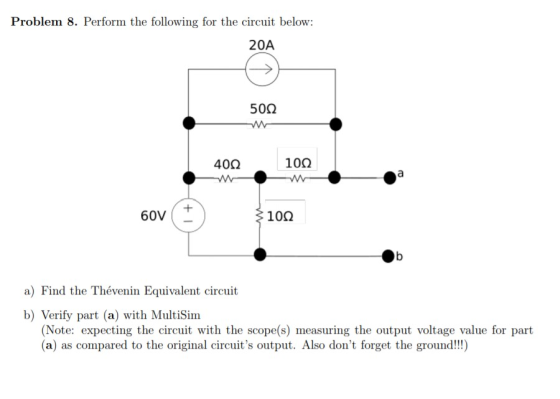

Problem 7. Perform the following for the circuit below using the source transformation method 40 5Ω 10Ω 100V 1Ω 20 30 3A a) PProblem 8. Perform the following for the circuit below 20A 500 40Ω 10Ω 60V 10Ω a) Find the Thévenin Equivalent circuit b) VerProblem 9. Perform the following for the circuit below: 5i 6 ab a) Find the Thévenin Equivalent circuit b) Verify part (a) wi

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1


MULTISIM SIMULATION RESULTS :

7.

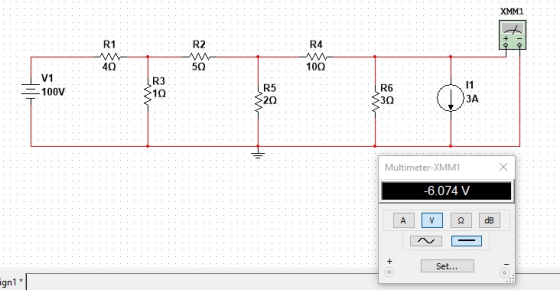

XMMI · R2.......... ..R4 SO .. . . . . .. . 100V (1)3A 20 Multimeter-XMM1 -6.074 V ~ 6 Set... agni*

Terminal voltage is -6.074 V

8.

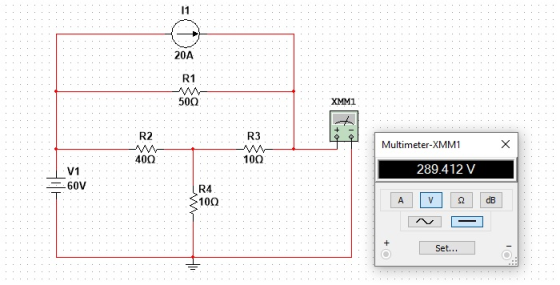

XMMI R2 Multimeter-XMM1 289.412 V = 60V 60V R4 100 Set...

Terminal voltage is 289.412 V

9.

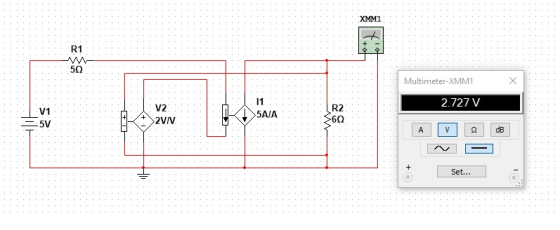

XMMI R 1 . . Multimeter-XMM1 2.727 V I R2 015IA 35 >60 FR2VN . . . . dB A v 2 NE Set...

Terminal voltage is 2.727 V

0 0
Add a comment
Know the answer?
Add Answer to:
Need help with Multisim to simulate these circuit diagrams. Any Multisim works, preferrably Multisim Live Problem...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
