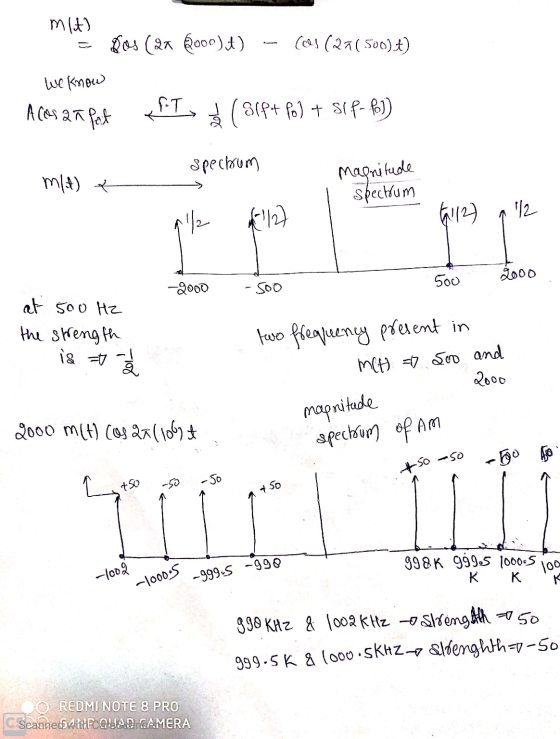

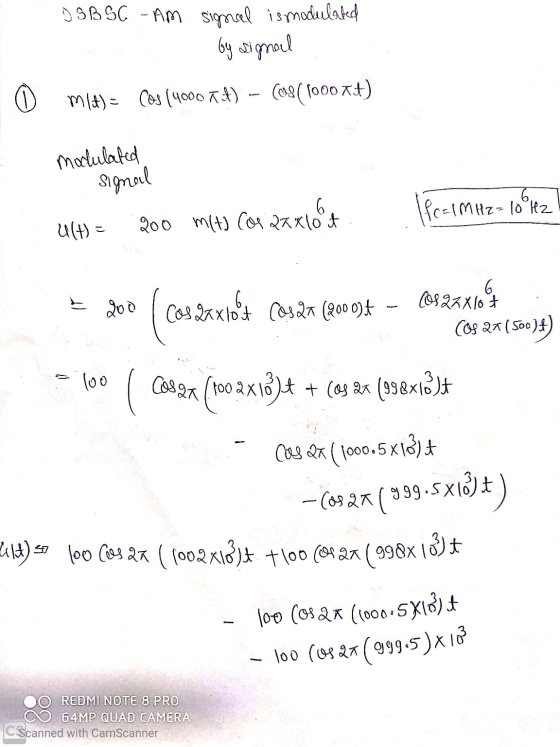

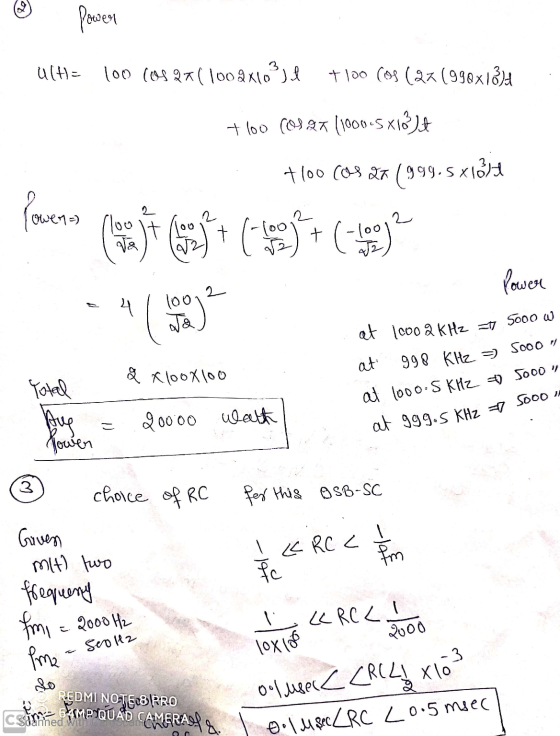

Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The...
[15 points] You are asked to design a DSB-SC AM modulator to generate a modulated signal km(t)cos...
[15 points] You are asked to design a DSB-SC AM modulator to generate a modulated signal km(t)cos(wt+0), where m(t) is a signal band-limited to B Hz. The following figure shows a DSB- SC AM modulator available in the stockroom. The carrier generator available generates not cos(wct), but cos (wct). Explain whether you would be able to generate the desired signal using only this equipment. You may use any kind of filter you like. 3. What kind of filter is required...
4. A DSB-SC signal is modulated by m(t) = 7coswyt + 3coswqt, with f1 = 0.2...
4. A DSB-SC signal is modulated by m(t) = 7coswyt + 3coswqt, with f1 = 0.2 kHz, and Ac = 5. (25 points) a. Write an expression for the DSB-SC signal and sketch a picture of this wave. b. Evaluate and sketch the spectrum for this DSB-SC signal. C. Find the value of the normalized average power. d. Find the value of the normalized PEP.
Assume that an AM transmitter is modulated with a video testing signal given by em(t) =...
Assume that an AM transmitter is modulated with a video testing signal given by em(t) = =20 + 60 sin (2πf1t), where f1 = 3.57 MHz. Let the carrier signal c(t) = Ac cos(2πfct), where Ac = 100 and fc = 100 MHz. The AM signal is fed into a 50-Ω load. (a) Derive an expression for the AM DSB-FC signal in time domain. (b) Construct the AM waveform, giving numerical values of the maximum amplitude, Amax and the minimum...
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch...
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch block diagram of the system. 2) Find modulated signal s(t). 3) Sketch s(t) and its spectrum.
When a baseband signal m(t) = cos(1000t)cos(3000t) is AM modulated using a carrier cos(10,000t), a) Find the...
When a baseband signal m(t) = cos(1000t)cos(3000t) is AM modulated using a carrier cos(10,000t), a) Find the frequency components in the baseband signals and in the AM signal. [2] b) Sketch the spectrum, carefully label the graph. c) Find the power efficiency, n. [1] [1]
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by carrier c(t)= 20 cos (200πt). Find: 1) Modulated signal s(t) , s(f). 2) Sketch modulated signal s(t). 3) Find bandwidth of modulated signal. 4) Find power of modulated and carrier. 5) Sketch upper side band and LSB?
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40nt)) a. Find and...
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40nt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40ſt)) a. Find and...
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40ſt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection. 15 nts
1. A modulating signal m(t) is given by m(t) = 5 (cos(20nt) – cos(40nt)) a. Find...
1. A modulating signal m(t) is given by m(t) = 5 (cos(20nt) – cos(40nt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection.
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt)....
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
[15 points] You are asked to design a DSB-SC AM modulator to generate a modulated signal km(t)cos(wt+0), where m(t) is a signal band-limited to B Hz. The following figure shows a DSB- SC AM modulator available in the stockroom. The carrier generator available generates not cos(wct), but cos (wct). Explain whether you would be able to generate the desired signal using only this equipment. You may use any kind of filter you like. 3. What kind of filter is required...
4. A DSB-SC signal is modulated by m(t) = 7coswyt + 3coswqt, with f1 = 0.2 kHz, and Ac = 5. (25 points) a. Write an expression for the DSB-SC signal and sketch a picture of this wave. b. Evaluate and sketch the spectrum for this DSB-SC signal. C. Find the value of the normalized average power. d. Find the value of the normalized PEP.
When a baseband signal m(t) = cos(1000t)cos(3000t) is AM modulated using a carrier cos(10,000t), a) Find the frequency components in the baseband signals and in the AM signal. [2] b) Sketch the spectrum, carefully label the graph. c) Find the power efficiency, n. [1] [1]
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40nt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection
1. A modulating signal m(t) is given by m(t) = (cos(20nt) – cos(40ſt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection. 15 nts
1. A modulating signal m(t) is given by m(t) = 5 (cos(20nt) – cos(40nt)) a. Find and sketch the spectrum of DSB-SC signal 2m(t)cos (100nt) b. Verify that the DSB-SC modulated signal can be recovered using coherent detection.
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
