A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch...
A DSB-SC system has message:
m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t).

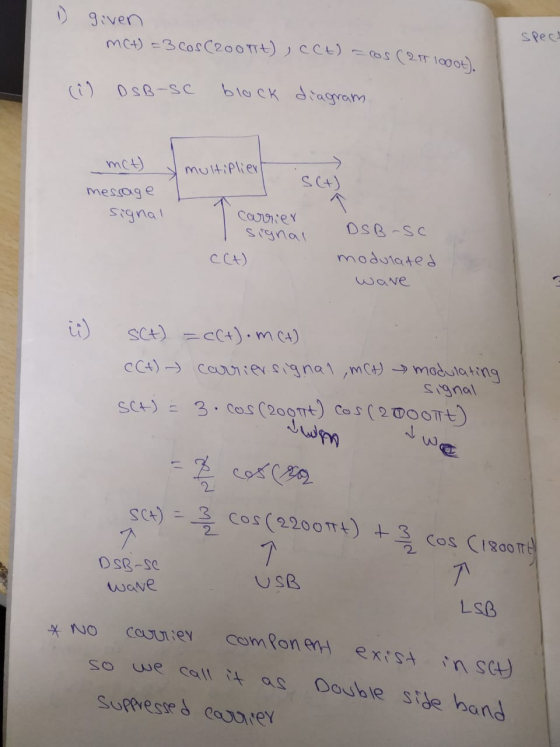

1) Sketch block diagram of the system.
2) Find modulated signal s(t).

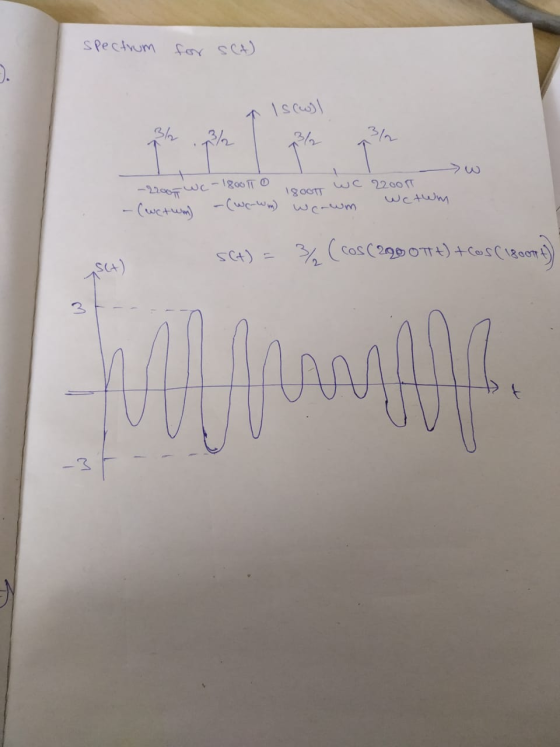

3) Sketch s(t) and its spectrum.
Homework Answers
Add Answer to:
A DSB-SC system has message:
m(t)= 3 cos(200πt), and has carrier signal c(t)=
cos(2π1000t).
1) Sketch...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by carrier c(t)= 20 cos (200πt). Find: 1) Modulated signal s(t) , s(f). 2) Sketch modulated signal s(t). 3) Find bandwidth of modulated signal. 4) Find power of modulated and carrier. 5) Sketch upper side band and LSB?
In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal...
In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal is given by m(t) = 2sinc(8t) + 4sinc^2 (8t). What is the frequency-domain representation and the bandwidth of the modulated signal?
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is...
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is ???( 2000??). Find the Fourier transform of the modulated signal.
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The...
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The modulated signal is u(t) = 200 m(t) cos(21tfct), where f=1 MHz. 1. Determine and sketch the spectrum of the AM signal. 2. Determine the average power in the frequency components 3. Find a resonable choice of R and C to design an envelope detector for this DSB-SC AM signal.
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt)....
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
In a coherent detection process, a sinusoidally modulated DSB-SC wave, s(t) = c(t)m(t) where the carrier...
In a coherent detection process, a sinusoidally modulated DSB-SC wave, s(t) = c(t)m(t) where the carrier wave is c(t) =Accos(2πfct) and the message signal is m(t) = Amcos(2πfmt), is applied to a product modulator using a locally generated sinusoid of Ac’ amplitude and is out of phase by φ with respect to the sinusoidal carrier used in the modulation. (a) Draw the block diagram of the coherent detection process and label the block diagram with the information provided above accordingly....
When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<&...
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Problem No. 1: Let us consider that a baseband message signal m(t)=4cos(2000xt) has to be transmitted...
Problem No. 1: Let us consider that a baseband message signal m(t)=4cos(2000xt) has to be transmitted from a location 'A' to its destination 'B' using a carrier signal given by c(t)=2cos(10000#t). The signal s() m(t)c(i) is the modulated signal which will be transmitted. Consider that the signal is transmitted through a noiseless channel and received at the receiver at location 'B' as the signal s(t). Based on this information, perform the following tasks. 1. Find, sketch and label the spectrum...
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The modulated signal is u(t) = 200 m(t) cos(21tfct), where f=1 MHz. 1. Determine and sketch the spectrum of the AM signal. 2. Determine the average power in the frequency components 3. Find a resonable choice of R and C to design an envelope detector for this DSB-SC AM signal.
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Problem No. 1: Let us consider that a baseband message signal m(t)=4cos(2000xt) has to be transmitted from a location 'A' to its destination 'B' using a carrier signal given by c(t)=2cos(10000#t). The signal s() m(t)c(i) is the modulated signal which will be transmitted. Consider that the signal is transmitted through a noiseless channel and received at the receiver at location 'B' as the signal s(t). Based on this information, perform the following tasks. 1. Find, sketch and label the spectrum...
