In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal...

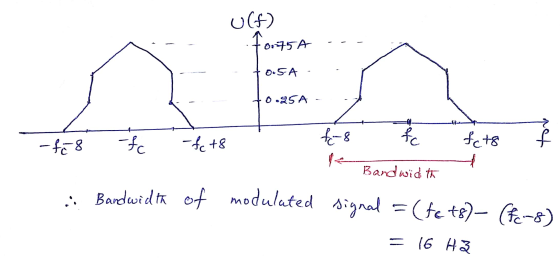

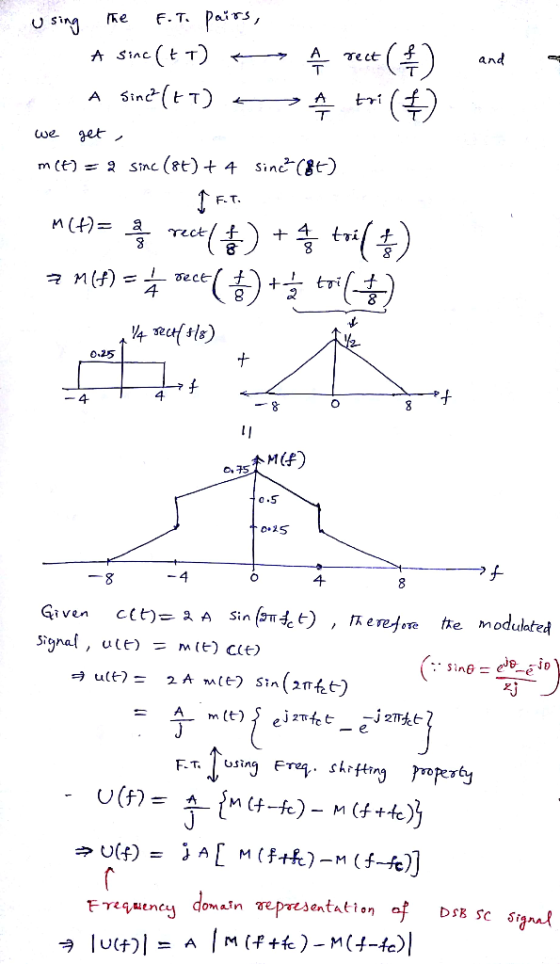

In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal is given by m(t) = 2sinc(8t) + 4sinc^2 (8t). What is the frequency-domain representation and the bandwidth of the modulated signal?
Homework Answers
Add Answer to:
In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the
message signal...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by carrier c(t)= 20 cos (200πt). Find: 1) Modulated signal s(t) , s(f). 2) Sketch modulated signal s(t). 3) Find bandwidth of modulated signal. 4) Find power of modulated and carrier. 5) Sketch upper side band and LSB?
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is...
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is ???( 2000??). Find the Fourier transform of the modulated signal.
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch...
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch block diagram of the system. 2) Find modulated signal s(t). 3) Sketch s(t) and its spectrum.
In a coherent detection process, a sinusoidally modulated DSB-SC wave, s(t) = c(t)m(t) where the carrier...
In a coherent detection process, a sinusoidally modulated DSB-SC wave, s(t) = c(t)m(t) where the carrier wave is c(t) =Accos(2πfct) and the message signal is m(t) = Amcos(2πfmt), is applied to a product modulator using a locally generated sinusoid of Ac’ amplitude and is out of phase by φ with respect to the sinusoidal carrier used in the modulation. (a) Draw the block diagram of the coherent detection process and label the block diagram with the information provided above accordingly....
9. Carrier signal in a double sideband -carrier band system, c (t) = Acos (2nfct) and...
9. Carrier signal in a double sideband -carrier band system, c (t) = Acos (2nfct) and the message signal m(t) = sinc (t) +sinc (t) Find the frequency domain expression and bandwidth of the modulated signal.
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
DSB-SC (Suppressed Carrier) - Generation Multiplier Carrier Note: Message is 2sin(2nx2x103t) Carrier is 2sin(2x100x103t) Message Using...
DSB-SC (Suppressed Carrier) - Generation Multiplier Carrier Note: Message is 2sin(2nx2x103t) Carrier is 2sin(2x100x103t) Message Using mathematical analysis, predict the frequency spectrum frequency domain) for y(t) in the above Figure DSB-SC Modulator. Sketch both the time domain view and the spectrum in the graphs provided below (Predicted) noting all important amplitudes, strengths and frequencies.
Consider the message signal m(t) = 20 sin c(40nt) and the carrier signal c(t) = 4...
Consider the message signal m(t) = 20 sin c(40nt) and the carrier signal c(t) = 4 cos(2007t). Sketch the spectrum and write the frequency-domain and time- domain expressions for a VSB modulated signal with a VSB filter characteristic as shown below. Note that Hyse (f)=(f -85)/30 for 85<f<115. Hys(f) A 0 85 100 115 130 f
When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<&...
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
9. Carrier signal in a double sideband -carrier band system, c (t) = Acos (2nfct) and the message signal m(t) = sinc (t) +sinc (t) Find the frequency domain expression and bandwidth of the modulated signal.
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
DSB-SC (Suppressed Carrier) - Generation Multiplier Carrier Note: Message is 2sin(2nx2x103t) Carrier is 2sin(2x100x103t) Message Using mathematical analysis, predict the frequency spectrum frequency domain) for y(t) in the above Figure DSB-SC Modulator. Sketch both the time domain view and the spectrum in the graphs provided below (Predicted) noting all important amplitudes, strengths and frequencies.
Consider the message signal m(t) = 20 sin c(40nt) and the carrier signal c(t) = 4 cos(2007t). Sketch the spectrum and write the frequency-domain and time- domain expressions for a VSB modulated signal with a VSB filter characteristic as shown below. Note that Hyse (f)=(f -85)/30 for 85<f<115. Hys(f) A 0 85 100 115 130 f
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
