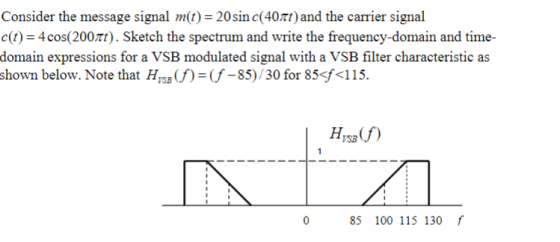

Consider the message signal m(t) = 20 sin c(40nt) and the carrier signal c(t) = 4 cos(2007t). Sketch the spectrum and write t

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

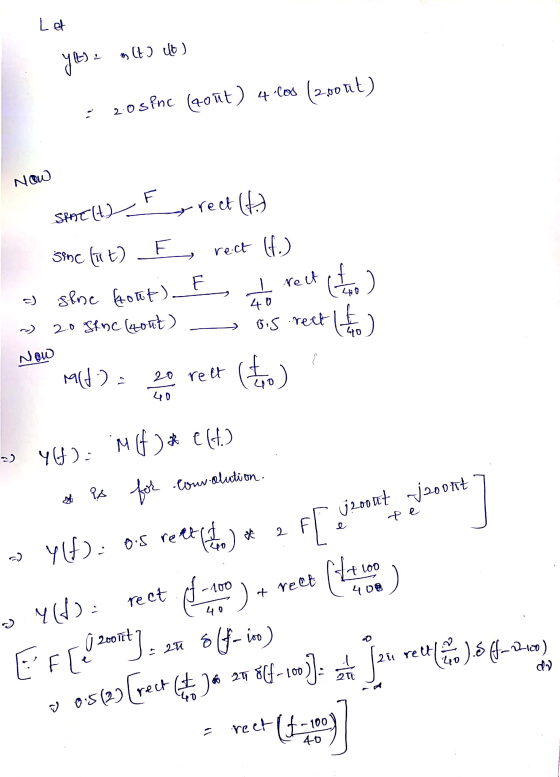

L et met ult) Yet): 2.0 sfnc (4oût) 4.los (2.00ut) Now rect (A) SRAT (t) rect Sinc ft) F sfrie foto+)_F rect 8-100 ) + 6.) f

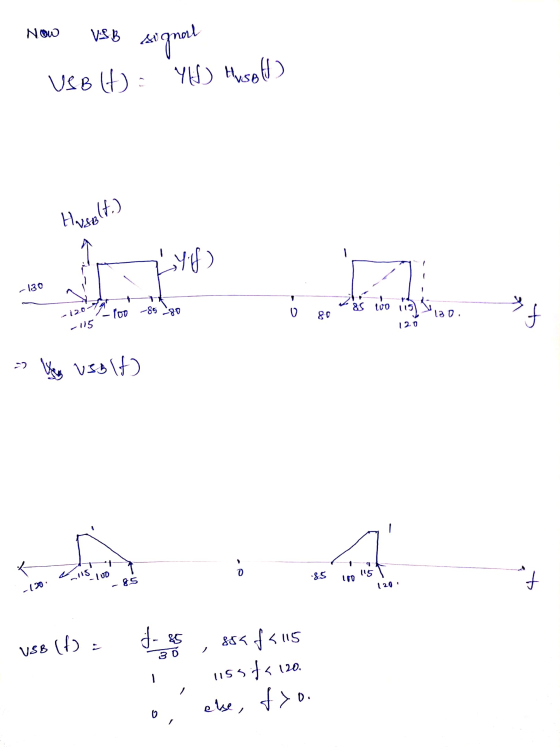

r ebe, dyo. 1155 1< 120. - 30 (f) asn <115 28 So of -100 120 f 100 58 Sil 53. 2012 o SI > (f) qon -115 001 f 08 130. - 120 0

0 0
Add a comment
Know the answer?
Add Answer to:
Consider the message signal m(t) = 20 sin c(40nt) and the carrier signal c(t) = 4...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier...

    The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?

  • Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...

    Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...

  • In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal...

    In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal is given by m(t) = 2sinc(8t) + 4sinc^2 (8t). What is the frequency-domain representation and the bandwidth of the modulated signal?

  • TO 2, the signal m(t) 20 sinc ( 400't) is an input to a ring modulator...

    TO 2, the signal m(t) 20 sinc ( 400't) is an input to a ring modulator with carrier frequency 10 fm where fm is the maximum frequency of m(t)} (a) Draw the block diagram of the used ring modulator and write down equation of the output signal of the modulator (b) Sketch spectrum of the modulated transmitted AM signal (c) Sketch the corresponding VSB AM spectrum with 25% of visitgal band relative to the other band. TO 2, the signal...

  • A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by...

    A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by carrier c(t)= 20 cos (200πt). Find: 1) Modulated signal s(t) , s(f). 2) Sketch modulated signal s(t). 3) Find bandwidth of modulated signal. 4) Find power of modulated and carrier. 5) Sketch upper side band and LSB?

  • 1. FM modulation. Consider a message signal m(t)-(2nt and a carrier wave c(t)-cos(400rt) (a) (20 points)...

    1. FM modulation. Consider a message signal m(t)-(2nt and a carrier wave c(t)-cos(400rt) (a) (20 points) Derive the FM modulated signal s(t) for ky-2 (b) (25 points) Find the Fourier transform, S(), of s(t) (Sketch to scale). (c) (5 points) What is the bandwidth of the modulated signal s(t).

  • Consider the message signal m(t):

    Consider the message signal m(t):a. Sketch the AM signal u(t)=[ A + m(t) ] Cos(wct) for modulation indexes μ = 0.5 and μ = 2.0 by assuming the carrier frequency to be much higher than the bandwidth of m(t) b. Determine the efficiency percentage (η = ps/pt) for μ = 0.5. Herein, Ps and Pt are sideband and total powers respectively, and Pt= Ps + Pc , in which Pc is the carrier power. Hint : Take into account the Parseval's property. c. If the AM waveforms corresponding...

  • When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<&...

    When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<< fc, The modulated DSB-SC signal SDSB-SC=m(t)cos(2πfct) is generated, and only the upper sideband To generate and transmit the SSB signal. As shown in the figure below, the receiver is a local oscillator cosine signal to the received signal and passes it through a low-pass filter. Answer the following questions. (a) Draw the waveform of DSB-SC modulated signal SDSB-SC(t） (b)Find the result...

  • 2. [20 points] The carrier c(t-Acce(2106 t) is frequency modulated by the sinusoid signal m(t) 2cos...

    2. [20 points] The carrier c(t-Acce(2106 t) is frequency modulated by the sinusoid signal m(t) 2cos (2000mt). The deviation constant is kr 3000 Hz/V Determine the bandwidth of the modulated signal using Carson's rule a. Sketch the magnitude of the spectrum of the modulated signal (plot only those frequency components that lie within the bandwidth derived in part a) with detailed information such as the areas of delta function determined by the Bessel function, frequency separation between each spectrum (note...

  • A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch...

    A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch block diagram of the system. 2) Find modulated signal s(t). 3) Sketch s(t) and its spectrum.
