A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by...
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC system to modulate by carrier c(t)= 20 cos (200πt). Find:

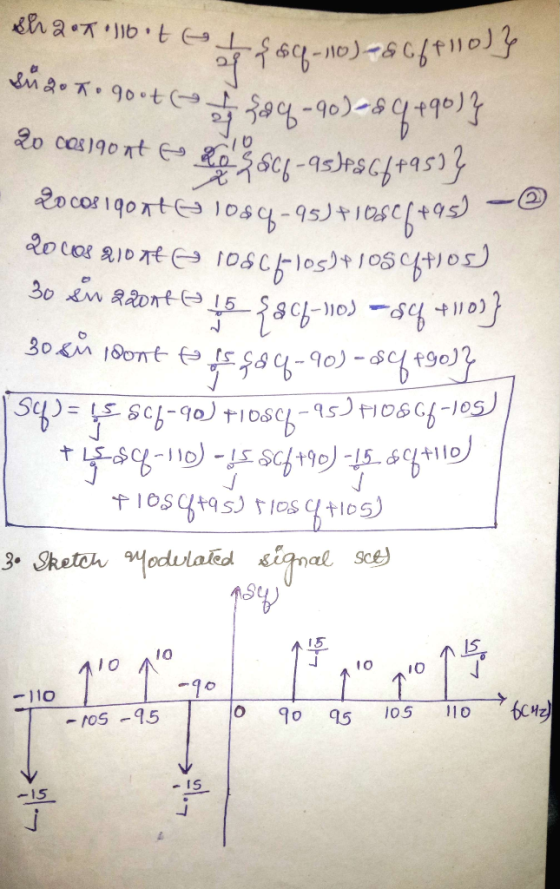

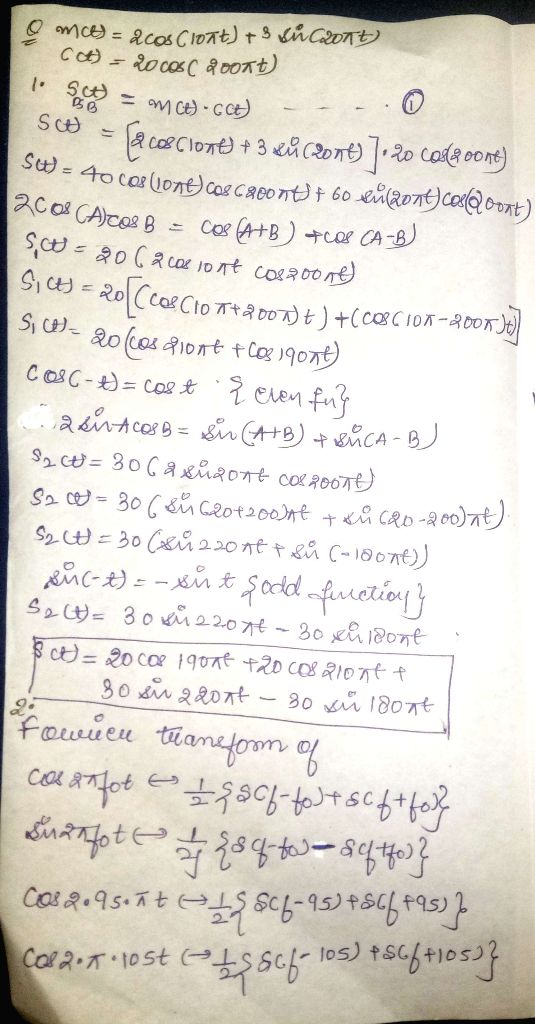

1) Modulated signal s(t) , s(f).
2) Sketch modulated signal s(t).

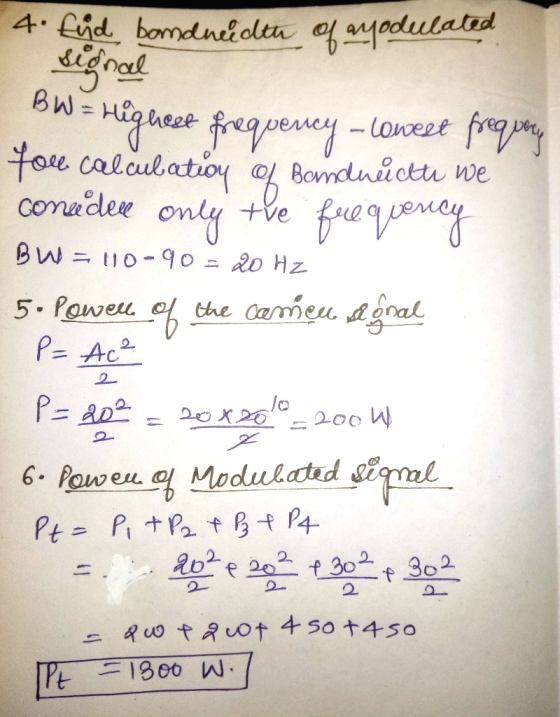

3) Find bandwidth of modulated signal.
4) Find power of modulated and carrier.
5) Sketch upper side band and LSB?
Homework Answers
Add Answer to:
A message signal m(t)=2 cos (10πt) + 3 sin(20πt) is used DSB-SC
system to modulate by...
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch...
A DSB-SC system has message: m(t)= 3 cos(200πt), and has carrier signal c(t)= cos(2π1000t). 1) Sketch block diagram of the system. 2) Find modulated signal s(t). 3) Sketch s(t) and its spectrum.
A message m(t) sinc2 (M) cos (2π9t) is used to modulate a carrier to produce an...
A message m(t) sinc2 (M) cos (2π9t) is used to modulate a carrier to produce an LSB-AM signal. (a) Find and sketch the spectrum of m(t); determine and sketch the spectrum of mh (t) graphically; determine m,(t) by finding the inverse Fourier transform of the previous spectrum; determine the LSB-AM message signal expression. (b) Sketch the spectrum of the DSB-SC signal 2m(t) cos 2mfet; remove the upper sideband and sketch the resulting LSB spectrum; determine the LSB-AM message signal expression...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal...
In a DSB-SC system, the carrier is c(t) = 2A sin (2πfct) and the message signal is given by m(t) = 2sinc(8t) + 4sinc^2 (8t). What is the frequency-domain representation and the bandwidth of the modulated signal?
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt)....
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The...
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The modulated signal is u(t) = 200 m(t) cos(21tfct), where f=1 MHz. 1. Determine and sketch the spectrum of the AM signal. 2. Determine the average power in the frequency components 3. Find a resonable choice of R and C to design an envelope detector for this DSB-SC AM signal.
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is...
In a DSB-SC amplitude modulation system, the message signal is m(t)=e^(-3t)*u(t-2) and the carrier signal is ???( 2000??). Find the Fourier transform of the modulated signal.
4.(30p) A message signal is consisting of voice signal and information code as shown in the...
4.(30p) A message signal is consisting of voice signal and information code as shown in the figure. This signal modulates an AM carrier signal x(t) defined as x(t) = cos(2 *T*50000*t) Find and sketch the spectrum of the modulated signal for each AM modulation type below. Explain the advantages and disadvantages of each modulation type. a) DSB-SC b) DSB c) SSB Upper Side Band AM(A) 2 a 1 2 -5 -4 -21 4 5 f (kHz)
4.(30p) A message signal is consisting of voice signal and information code as shown in the...
4.(30p) A message signal is consisting of voice signal and information code as shown in the figure. This signal modulates an AM carrier signal x(t) defined as x(t) = cos(2 * 11 * 50000 *t) Find and sketch the spectrum of the modulated signal for each AM modulation type below. Explain the advantages and disadvantages of each modulation type. a) DSB-SC b) DSB c) SSB Upper Side Band AMEA)! 2 1 2 5 -5 2-1 f (kHz)
A message m(t) sinc2 (M) cos (2π9t) is used to modulate a carrier to produce an LSB-AM signal. (a) Find and sketch the spectrum of m(t); determine and sketch the spectrum of mh (t) graphically; determine m,(t) by finding the inverse Fourier transform of the previous spectrum; determine the LSB-AM message signal expression. (b) Sketch the spectrum of the DSB-SC signal 2m(t) cos 2mfet; remove the upper sideband and sketch the resulting LSB spectrum; determine the LSB-AM message signal expression...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
A message signal m(t) = sin30nt +3cos200nt is to be modulated by the carrier, 1. cos(20,000nt). (a) Find X(f) (b) Find the DSB-SC signal x(t) and Xf). (c) Sketch the spectrums of |M(G| and |X(f)|. In the spectrum, identify the USB and LSB spectra. (d) Find the message signal power, m2(t). (e) Find the transmitted power, Sr x2(t). (f Find the massage signal bandwidth, B, and the transmitted signal bandwidth, Br. (g) Describe the demodulation process and find the detected...
Problem A DSB-SC AM signal is modulated by the signal m(t) = cos(4000st) - cos(1000nt). The modulated signal is u(t) = 200 m(t) cos(21tfct), where f=1 MHz. 1. Determine and sketch the spectrum of the AM signal. 2. Determine the average power in the frequency components 3. Find a resonable choice of R and C to design an envelope detector for this DSB-SC AM signal.
4.(30p) A message signal is consisting of voice signal and information code as shown in the figure. This signal modulates an AM carrier signal x(t) defined as x(t) = cos(2 *T*50000*t) Find and sketch the spectrum of the modulated signal for each AM modulation type below. Explain the advantages and disadvantages of each modulation type. a) DSB-SC b) DSB c) SSB Upper Side Band AM(A) 2 a 1 2 -5 -4 -21 4 5 f (kHz)
4.(30p) A message signal is consisting of voice signal and information code as shown in the figure. This signal modulates an AM carrier signal x(t) defined as x(t) = cos(2 * 11 * 50000 *t) Find and sketch the spectrum of the modulated signal for each AM modulation type below. Explain the advantages and disadvantages of each modulation type. a) DSB-SC b) DSB c) SSB Upper Side Band AMEA)! 2 1 2 5 -5 2-1 f (kHz)
