e

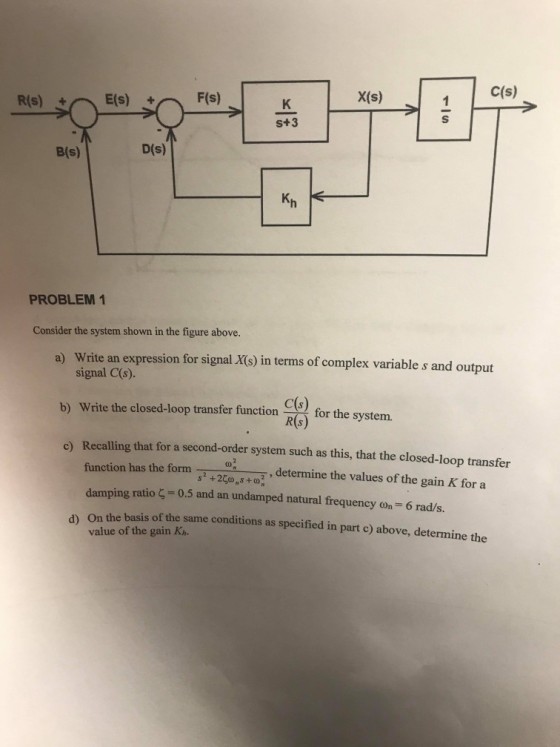

c(s) X(s) S+3 B(s) D(s) Kh PROBLEM 1 Consider the system shown in the figure...

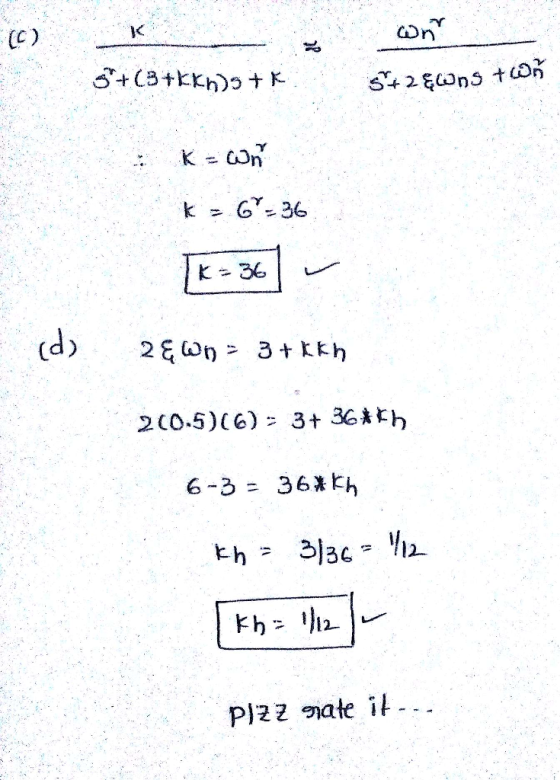

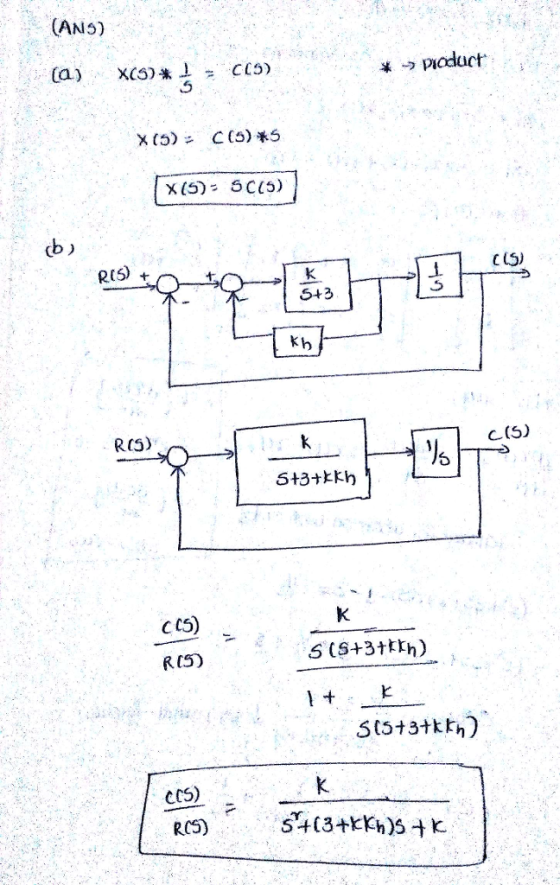

Determine: 1. The transfer function C(s)/R(s). Also find the closed-loop poles of the system. 2. The...
Determine: 1. The transfer function C(s)/R(s). Also find the
closed-loop poles of the system. 2. The values of the undamped
natural frequency ωN and damping ratio ξ of the closed-loop poles.
3. The expressions of the rise time, the peak time, the maximum
overshoot, and the 2% settling time due to a unit-step reference
signal.
For the open-loop process with negative feedback R(S) Gp(S) C(s) H(s) 103 Go(s) = 1 , Gp(s)- s(s + 4) Determine: 1. The transfer function...
Problem 3: (30 Consider a block diagram which represents the satellite control system with a cont...
Problem 3: (30 Consider a block diagram which represents the satellite control system with a controller Ge(s) (a) Assuming no initial conditions, find the output response y(t) when the impulse input is applied to the system, where Gc(s) is a proportional gain K. (10) (b) Design a lead-compensator Ge(s) for which the complex pole of the closed-loop system has 0.5 of damping ratio () and 2 rad/s of undamped natural frequency (on) (The zero of a lead-compensator is given as...
1. Consider the unity feedback system shown in figure 1 with G(S) -2sti a) Determine the...
1. Consider the unity feedback system shown in figure 1 with G(S) -2sti a) Determine the closed loop transfer function TF(s) γ(s) R(s) What are the poles and zeros of TF1(s)? [2 marks] b) For TF(s), calculate the DC gain, natural frequency and damping ratio. Classify TF1(s) as underdamped overdamped, critically damped or undamped [3 marks] c) Use the initial value theorem and final value theorem to determine the initial value (Mo) and final value (M) of the [2 marks]...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the d...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
System Dynamics 3. Determine the values of K and k such that the closed-loop system shown...
System Dynamics
3. Determine the values of K and k such that the closed-loop system shown in the Figure has a damping ratio ? of 0.7 and an undamped natural frequency en of4 rad/s R(s) 1 C(s)
only b and c please 1 Consider the system whose transfer function is given by: G(S)...
only b and c please
1 Consider the system whose transfer function is given by: G(S) == (2s +1)(s+3) unction is given by: G(s) - (a) Use the root-locus design methodology to design a lead compensator that will provide a closed-loop damping 5 =0.4 and a natural frequency on =9 rad/sec. The general transfer function for lead compensation is given by D(5)=K (977), p>z, 2=2 (b) Use MATLAB to plot the root locus of the feed-forward transfer function, D(s)*G(s), and...
Consider the system shown below where the velocity feedback control is utilized. Determine K and Kh...
Consider the system shown below where the velocity feedback control is utilized. Determine K and Kh so that the following specifications are satisfied: 1. Damping ratio of the closed loop system is 0.5 2. Settling time of the closed loop system (according to the 4T criteria) is less than 2s 3. Steady-state error for a unit ramp input is less than or equal to 0.02. R(s) C(s) 2s +1
Looking for some help; the solution to the problem with explanations for each step will be...
Looking for some help; the solution to the problem with
explanations for each step will be appreciated
Question 2: a) Construct the root-locus for the K> 0 for the transfer function GH s(s1 (s2+ 7s + 12) S(S b) If the design value for the gain is K = 6, calculate the gain margin. c) Determine the value of the gain factor K for which the system with the above open loop transfer function has closed loop poles with a...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s +...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s + 4)(s + 6) g) Sketch the uncompensated system root locus showing all details. (5 Points) h) Find the dominant closed loop poles of the uncompensated system to operate with a 16.3% overshoot and peak time tp = 0.7255 (make sure to show this point on the Root Locus) (5 Points) (s+z) Now we want to design a PI compensator of the form to increase...
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the...
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the angle of departure from (i) Determine the value of the gain for which the closed loop system will have a pole at (-10)
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3...
Determine: 1. The transfer function C(s)/R(s). Also find the
closed-loop poles of the system. 2. The values of the undamped
natural frequency ωN and damping ratio ξ of the closed-loop poles.
3. The expressions of the rise time, the peak time, the maximum
overshoot, and the 2% settling time due to a unit-step reference
signal.
For the open-loop process with negative feedback R(S) Gp(S) C(s) H(s) 103 Go(s) = 1 , Gp(s)- s(s + 4) Determine: 1. The transfer function...
Problem 3: (30 Consider a block diagram which represents the satellite control system with a controller Ge(s) (a) Assuming no initial conditions, find the output response y(t) when the impulse input is applied to the system, where Gc(s) is a proportional gain K. (10) (b) Design a lead-compensator Ge(s) for which the complex pole of the closed-loop system has 0.5 of damping ratio () and 2 rad/s of undamped natural frequency (on) (The zero of a lead-compensator is given as...
1. Consider the unity feedback system shown in figure 1 with G(S) -2sti a) Determine the closed loop transfer function TF(s) γ(s) R(s) What are the poles and zeros of TF1(s)? [2 marks] b) For TF(s), calculate the DC gain, natural frequency and damping ratio. Classify TF1(s) as underdamped overdamped, critically damped or undamped [3 marks] c) Use the initial value theorem and final value theorem to determine the initial value (Mo) and final value (M) of the [2 marks]...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
System Dynamics
3. Determine the values of K and k such that the closed-loop system shown in the Figure has a damping ratio ? of 0.7 and an undamped natural frequency en of4 rad/s R(s) 1 C(s)
only b and c please
1 Consider the system whose transfer function is given by: G(S) == (2s +1)(s+3) unction is given by: G(s) - (a) Use the root-locus design methodology to design a lead compensator that will provide a closed-loop damping 5 =0.4 and a natural frequency on =9 rad/sec. The general transfer function for lead compensation is given by D(5)=K (977), p>z, 2=2 (b) Use MATLAB to plot the root locus of the feed-forward transfer function, D(s)*G(s), and...
Consider the system shown below where the velocity feedback control is utilized. Determine K and Kh so that the following specifications are satisfied: 1. Damping ratio of the closed loop system is 0.5 2. Settling time of the closed loop system (according to the 4T criteria) is less than 2s 3. Steady-state error for a unit ramp input is less than or equal to 0.02. R(s) C(s) 2s +1
Looking for some help; the solution to the problem with
explanations for each step will be appreciated
Question 2: a) Construct the root-locus for the K> 0 for the transfer function GH s(s1 (s2+ 7s + 12) S(S b) If the design value for the gain is K = 6, calculate the gain margin. c) Determine the value of the gain factor K for which the system with the above open loop transfer function has closed loop poles with a...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s + 4)(s + 6) g) Sketch the uncompensated system root locus showing all details. (5 Points) h) Find the dominant closed loop poles of the uncompensated system to operate with a 16.3% overshoot and peak time tp = 0.7255 (make sure to show this point on the Root Locus) (5 Points) (s+z) Now we want to design a PI compensator of the form to increase...
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the angle of departure from (i) Determine the value of the gain for which the closed loop system will have a pole at (-10)
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3...
