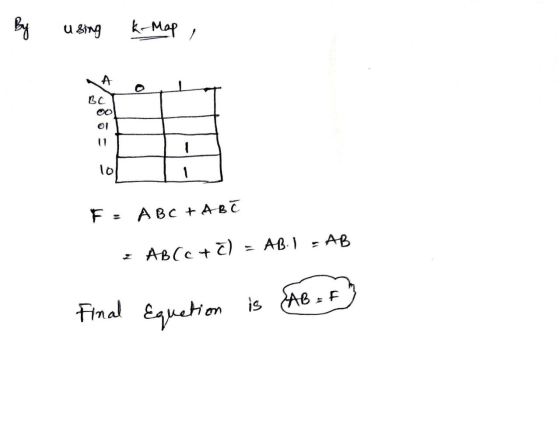

the full truth table, kmap and final equation step by
step.
And Gate And OR WRC...
6. Draw the symbol, Boolean equation, and truth table for a 3-input XNOR gate (10 pts.).
6. Draw the symbol, Boolean equation, and truth table for a 3-input XNOR gate (10 pts.).
Draw symbol ,boolean equation and truth table for a three input XNOR gate Convert the following...
Draw symbol ,boolean equation and truth table for a three input XNOR gate Convert the following decimal numbers to 8-bit two’s complement numbers or indicate that the decimal number would overflow the range. (128)10
Build the truth table for half-adder and show one implementation using gates. Build a NOT gate...
Build the truth table for half-adder and show one implementation using gates. Build a NOT gate from NOR gate. Build a NOT gate from NAND gate. Algebraic equation for XOR gate is A B bar + A bar B. Show that the algebraic equation for XNOR gate AB + A bar B bar. Draw a circuit for a 2-to-4 line decoder. 2-to-1 line multiplexer equation is given by Y = S bar I_0 + SI_1 Show an implementation of this...
If we were to build a truth table for a 16-input AND gate, how many different...
If we were to build a truth table for a 16-input AND gate, how many different combinations of inputs would we have?
(1)Try to use NAND gates to achieve the truth table function of an XOR gate (2)...
(1)Try to use NAND gates to achieve the truth table function of an XOR gate (2) Try to design a clicker for three people, it just needs two people to agree to pass. A,B,C indicate the people, 0 means don't agree, 1 means agree. If it passes the result is 1. Please write the truth table, the SOP (sum of products) equation and draw the logic circuit for it. (3)Use a Karnaugh-map to simplify the following Boolean function: F= AB'C'+A'B'C'+AB'C+A'B'C+AB...
1.- Fill the truth table for the function 2.- A full adder or FA requires two...
1.- Fill the truth table for the function
2.- A full adder or FA requires two cascaded HAs and an OR gate
to generate the carry
a) True
b) False
b HF) IC abcf 100000 0 이이 1 1 0 101 1 0 11 1 1101 0 101 1 0 [1/100 11/11 1
Identify the inputs and outputs of a one-bit binary full adder 2. Create a truth table...
Identify the inputs and outputs of a one-bit binary full adder 2. Create a truth table for the full adder 3. Write an equation for each output as a function of the inputs 4. Minimize (simplify) each equation
I need the full step by step answer Determine the truth value of each of the...
I need the full step by step answer
Determine the truth value of each of the following statements in which the domain of each variable is the real numbers. If false, provide a counter example, see definition 1 p.170 Forall x y (x = y^2) F - suppose x = 2, there then is no integer y such that y^2 = 2. X Forall y (x = y^2) F - says that no matter what x we pick, it must...
1. There are two circuits in the following Truth Table (each is part of a Full...
1. There are two circuits in the following Truth Table (each is part of a Full Adder). Using Karnaugh Maps produce the circuit for Sum (S) given the inputs A, B, and Cin. A) Show the Karnaugh Map. B) Show the circuit. A B Cin SUM(S) Cout 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0...
A full subtractor can be built using two "Half Subtractor" devices and an OR gate. Design...
A full subtractor can be built using two "Half Subtractor" devices and an OR gate. Design and test a full subtractor (schematic diagram and truth table shown below). Write the expressions of the difference and the borrow beside the circuit. Input Output x y bi bi+1 d 0 0 0 0 0 0 0 1 1 1 0 1 0 1 1 0 1 1 1 0 1 0 0 0 1 1 0 1 0 0 1 1 0...
6. Draw the symbol, Boolean equation, and truth table for a 3-input XNOR gate (10 pts.).
Build the truth table for half-adder and show one implementation using gates. Build a NOT gate from NOR gate. Build a NOT gate from NAND gate. Algebraic equation for XOR gate is A B bar + A bar B. Show that the algebraic equation for XNOR gate AB + A bar B bar. Draw a circuit for a 2-to-4 line decoder. 2-to-1 line multiplexer equation is given by Y = S bar I_0 + SI_1 Show an implementation of this...
1.- Fill the truth table for the function
2.- A full adder or FA requires two cascaded HAs and an OR gate
to generate the carry
a) True
b) False
b HF) IC abcf 100000 0 이이 1 1 0 101 1 0 11 1 1101 0 101 1 0 [1/100 11/11 1
I need the full step by step answer
Determine the truth value of each of the following statements in which the domain of each variable is the real numbers. If false, provide a counter example, see definition 1 p.170 Forall x y (x = y^2) F - suppose x = 2, there then is no integer y such that y^2 = 2. X Forall y (x = y^2) F - says that no matter what x we pick, it must...
